Vibro-meter 200-566-000-012 200-566-101-012

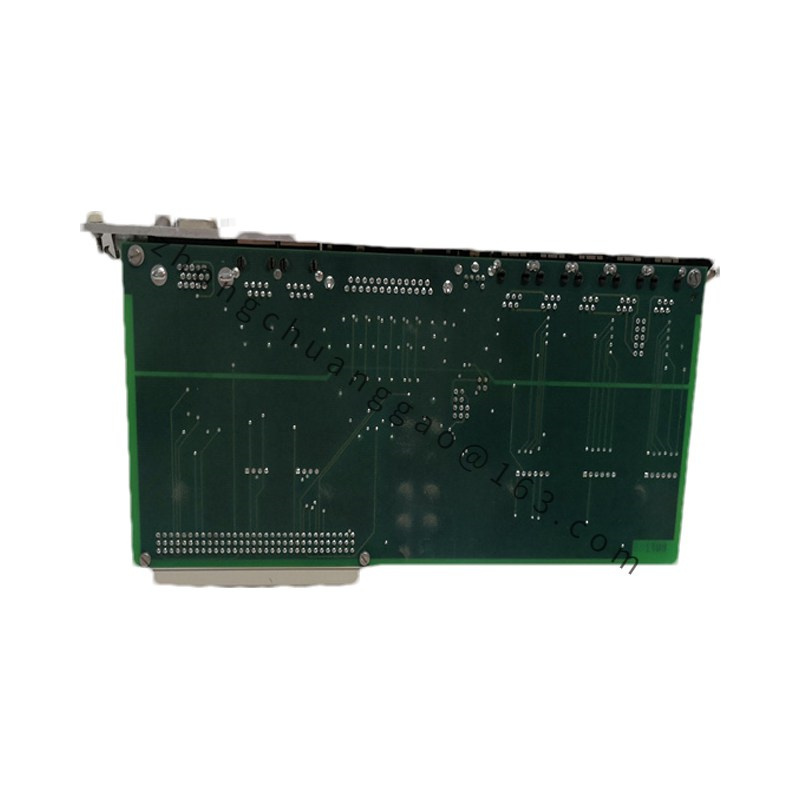

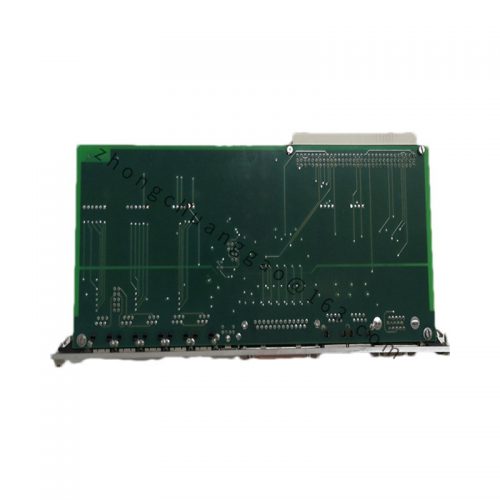

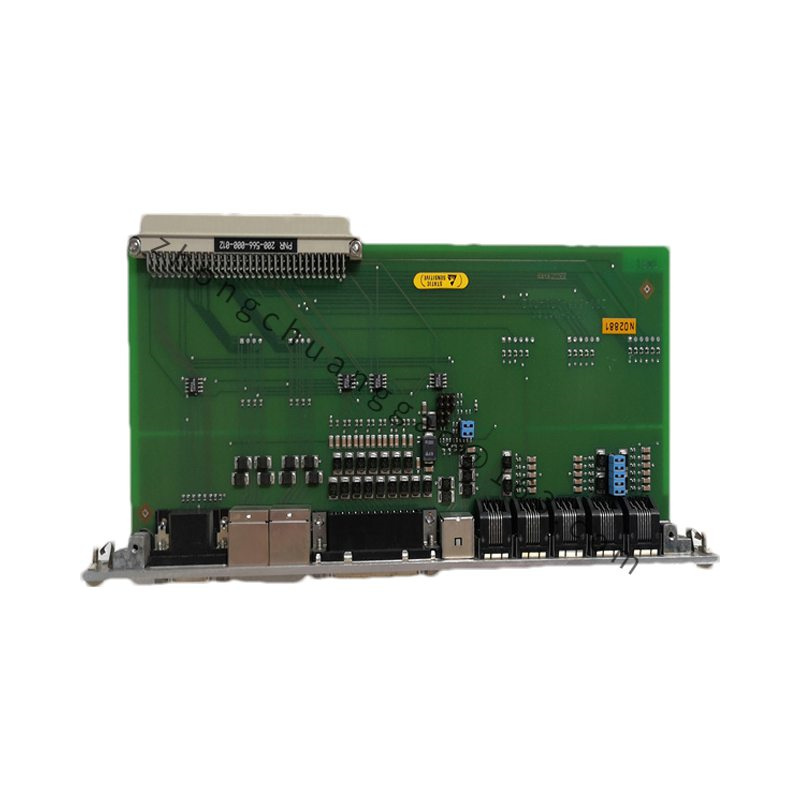

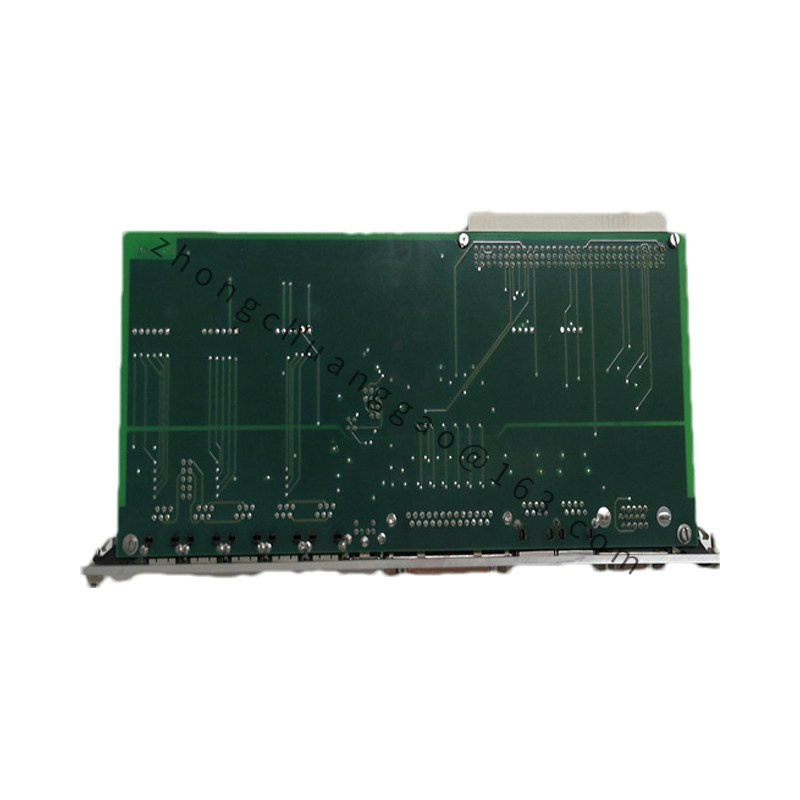

The Vibro-meter 200-566-000-012 and 200-566-101-012 are input/output communication network interface cards (IOCN) designed for integration within Vibro-meter’s VM600 system. These cards facilitate communication between various devices and systems within an industrial automation or process control environment.

WhatApp
WeChat

Detailed content

Technical Specifications

  • Power Input: 8 to 32VDC
  • I/O Configuration:
    • 6 (or 8) 32VDC inputs, with 2 (or 2) independently field-selectable sinking or sourcing inputs
    • 2 analog channels with 10-bit resolution, selectable for 0-5VDC, 0-10VDC, or 0-20MA
    • 6 digital outputs rated at 4 amps each, with automatic overcurrent protection and programmable status monitoring
  • Communication Interfaces:
    • Ethernet connectors for communication with VM600 MPSx software, Modbus TCP, or PROFINET protocols
    • Serial communication ports configurable as RS-232, RS-422, or RS-485
    • CAN port with J1939 capability
  • Programming: Supports ladder logic and function block programming using Devise Ladder software
  • Environmental Rating: Enclosure is rated for submersion up to three feet, screw and daughterboard mountable

Functional Characteristics

  • Parameter Adjustment: Allows for the adjustment of vibration monitoring system parameters such as vibration thresholds, filtering settings, and sampling frequencies.
  • Real-time Monitoring: Provides real-time data feedback to ensure system performance.
  • Remote Control: Capable of remote control and adjustment of system parameters through remote interfaces.
  • Alarm and Alert Functionality: Sets alarm and alert thresholds to notify when vibrations exceed safe ranges.
  • Programmability: Offers customizable configuration and control according to application requirements.
  • Diagnostics and Health Assessment: May include vibration diagnostic functions to evaluate equipment health and performance.

Application Scenarios

The Vibro-meter 200-566-000-012 and 200-566-101-012 IOCN cards are typically used in industrial automation and process control systems, particularly in scenarios requiring real-time monitoring and diagnostics of machinery status. They are essential components in vibration monitoring systems, enabling users to collect and analyze vibration and temperature data from field devices such as vibration sensors and temperature sensors. This data can be used to predict equipment failures, optimize maintenance schedules, and improve production efficiency.
