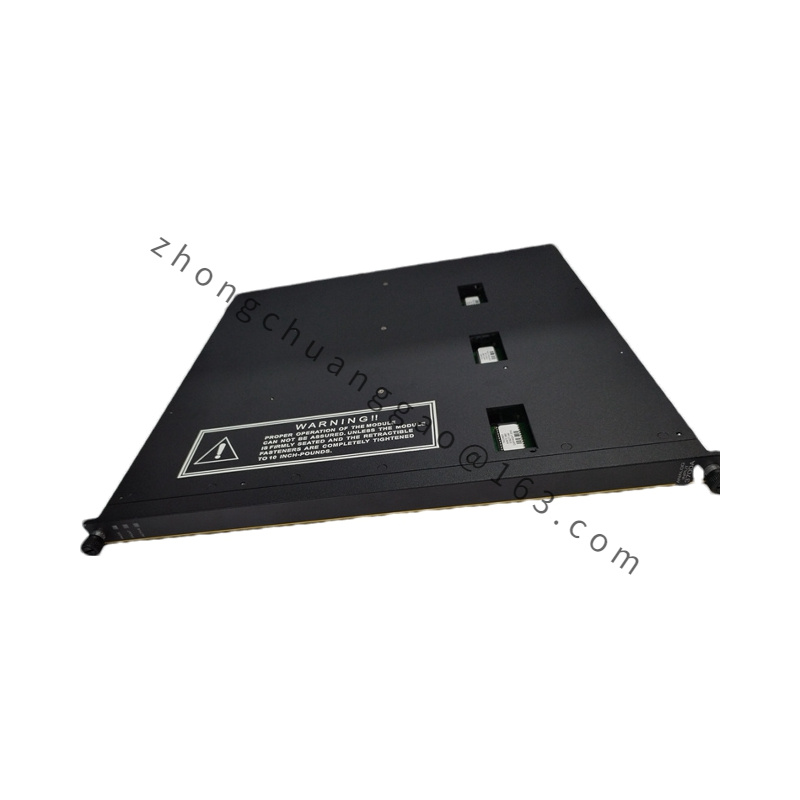

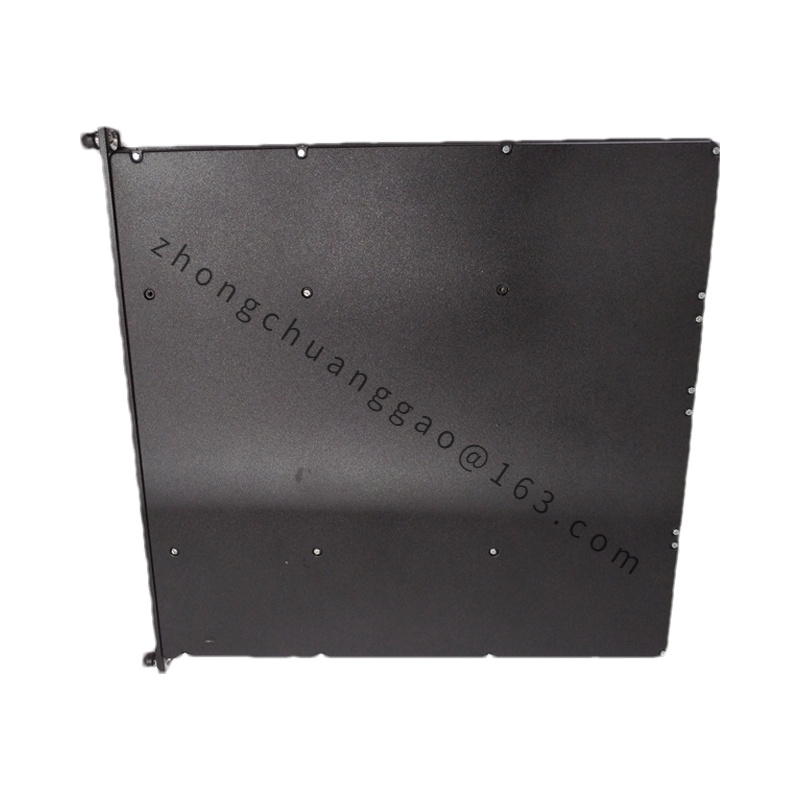

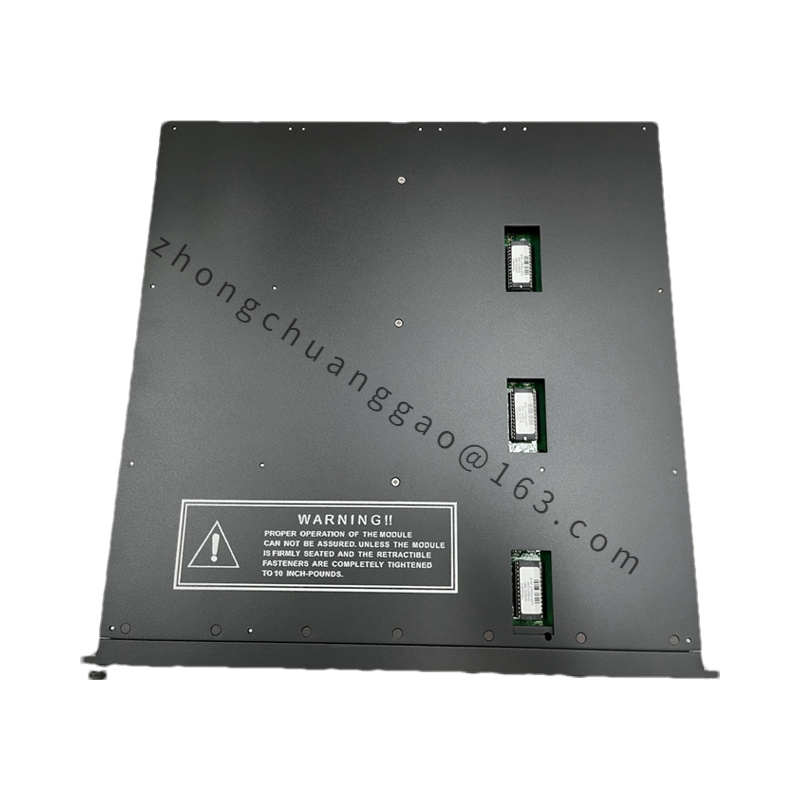

Triconex 3700A
Technical Specifications:
- Input Channels (for 3700A Analog Input Module):
- Number of Input Points: 32 (as per some sources)
- Input Voltage Range: 0-5V, +6% (specific to 3700A)
- Resolution: 12 bits
- Accuracy: < .15% of FSR (Full Scale Range), from 0° to 60°C
- Common Mode Rejection: -80 dB (DC-100Hz), typical
- Common Mode Range: -12V to +12V peak
- Input Resistance (load): 30 MΩ (DC), min.
- Power-Off Resistance: 30 KΩ (DC), typical
Detailed content
Communication and Interfacing:
-
- Designed as a communication module for TRICONEX safety systems
- Supports multiple communication interfaces such as Ethernet, RS-232, RS-485, etc. (as per some sources)
- Enables data transmission and communication between TRICONEX safety system and other devices or systems
Functional Characteristics:
- Pulse Control and Counting:
- Capable of generating and controlling pulse signals based on preset parameters and logic
- Counts incoming pulse signals accurately, allowing real-time monitoring and control
- High Precision and Stability:
- Provides accurate pulse control and counting functions across varying operating conditions
- Meets precision control and measurement requirements
- Programmability and Flexibility:
- User-configurable parameters and settings to adapt to different pulse control requirements
- Supports flexible configuration options
- Integration and Monitoring:
- Integrates seamlessly with other TRICONEX safety system modules
- Enables centralized monitoring and control of the entire system, including system status, alarm information, and operational data
- Compliance and Standards:
- Complies with IEC 61508/61511 standards
- Utilizes advanced TMR (Triple Modular Redundancy) microprocessor hardware technology and TRISTATION 1131 software for triple redundant fault-tolerant control
Application Scenarios:
- Industrial Safety Systems:
- Widely used in safety instrumented systems (SIS) and emergency shutdown (ESD) systems
- Ensures compliance with industrial safety standards and regulations
- Process Industries:
- Applied in various process industries such as petrochemicals, oil and gas, chemicals, power generation, and others
- Monitors and controls critical process parameters and equipment states
- Automation and Control:
- Integral part of automation and control systems, enabling real-time monitoring, control, and decision-making
Summary:
| Aspect | Details |
|---|---|
| Technical Specs | Analog Input: 32 points, 0-5V range, 12-bit resolution, < .15% accuracy, etc. |
| Communication: Supports Ethernet, RS-232, RS-485, etc. for data transmission | |
| Functional Features | Pulse control and counting, high precision and stability, programmability and flexibility, integration and monitoring |
| Compliance | Complies with IEC 61508/61511 standards, utilizes TMR technology and TRISTATION 1131 software |
| Application Scenarios | Industrial safety systems, process industries, automation and control applications |
