Weight: Approximately 120g
Operating Temperature: -20°C to +50°C
Storage Temperature: -40°C to +70°C
Environmental Humidity: 5% to 95% RH (non-condensing)
CPU: 32-bit RISC Processor
Communication Bus Speed: 2 Mbps between main processor and communication module
Power Distribution: Dual power rails on backplane center, with each module drawing power from both rails via dual power regulators
Functional Characteristics:
High Availability: Supports both TMR (Triple Modular Redundancy) and single-channel digital input modules, providing enhanced safety and reliability.
Triple Modular Redundancy (TMR): On TMR modules, all critical signal paths are tripled, ensuring safety and maximum availability.
Channel Isolation: Each input channel (A, B, C) is fully isolated and runs independently, preventing faults from propagating between channels.
Diagnostic Capabilities: Includes diagnostic indicators for module status, faults, loads, and activation.
Scalable: Supports a wide range of input/output configurations, making it suitable for various applications.
Application Scenarios:
Critical Process Control: Ideal for applications requiring high safety integrity levels, such as SIL 1, 2, or 3. It is commonly used in oil and gas, chemicals, power generation, and other industries where process control is crucial.
Safety Instrumented Systems (SIS): A core component of SIS, providing safety-critical monitoring and control functions to prevent accidents and protect personnel, equipment, and the environment.
High-Availability Systems: Suitable for applications requiring continuous operation with minimal downtime, thanks to its TMR architecture and hot standby modules.
Industrial Automation: Widely used in industrial automation systems, integrating seamlessly with other automation components and systems.
Summary:

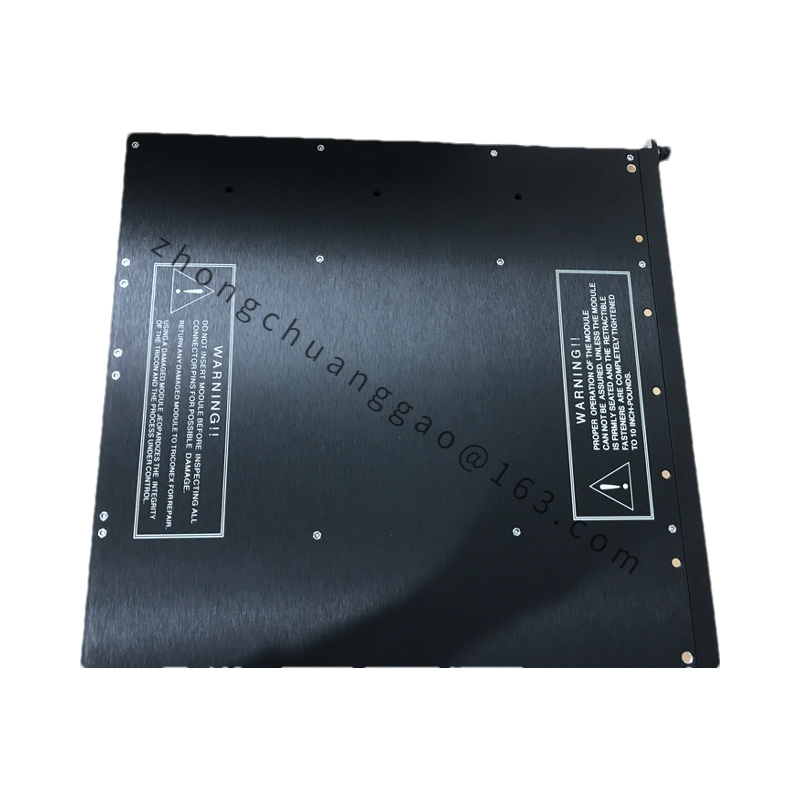

The Triconex 3625C1 is a highly reliable and versatile digital input/output module designed for critical process control and safety applications. Its TMR architecture, channel isolation, and diagnostic capabilities ensure maximum safety and availability. With a wide operating temperature range, high efficiency, and support for various input/output configurations, it is well-suited for a range of industrial automation scenarios.
