Triconex 3511

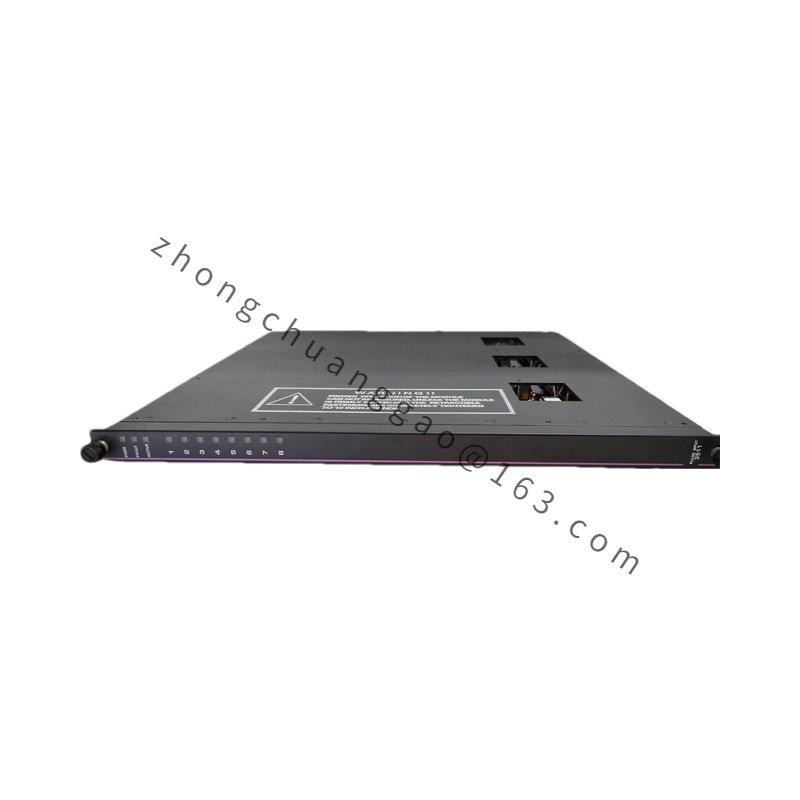

Triconex 3511 is a programmable module that belongs to the Triconex industrial safety and control system, offered by Schneider Electric. This module is renowned for its advanced features, high reliability, and versatility, making it suitable for various industrial applications.
Detailed content
Technical Specifications
While specific technical specifications for Triconex 3511 may vary slightly depending on the exact model and configuration, some common specifications include:
Triple Modular Redundancy (TMR): The Triconex system, including the 3511 module, is characterized by its triple redundancy design, featuring three independent processors, input/output channels, and communication paths.
Pulse Input Specification (for PI type):
Input Signal: 8 pulse inputs
Resolution: 16-bit
Accuracy: ±0.01% (from 1000 Hz to 20000 Hz)
Update Rate: 25 milliseconds (typical)
Input Characteristics: AC coupled, balanced differential
Common Mode Range: -100 VDC to +100 VDC peak-to-peak
Normal Mode Range: 1.5 V to 200 V peak-to-peak
Waveform: Sine, square, pulse, etc.
Duty Cycle: 10% to 90%
Frequency: 20 Hz to 20000 Hz
Current Range: 0-20 mA (with 250-ohm shunt)
Functional Features
Triple Modular Redundancy (TMR):
The triple redundancy design significantly enhances the system’s reliability and safety, ensuring that the system can continue to operate even if one or two of the processors fail.
Fault Tolerance:
The module is equipped with powerful fault detection and handling mechanisms, enabling it to detect and isolate faults, ensuring continuous and stable operation.
Programmable Logic Control (PLC):
The 3511 module supports programmable logic control, allowing users to customize control logic according to specific application requirements.
Communication Interfaces:
The module provides interfaces for communication with other Triconex modules and external devices, supporting various industrial communication protocols such as Modbus, CAN, and Profibus.
Real-Time Monitoring and Diagnostics:
The module offers real-time monitoring and diagnostic capabilities, enabling users to monitor system status and respond to abnormalities promptly.
Flexible Input/Output Configuration:
The module has flexible input/output configurations, adapting to various control and monitoring requirements.
High Security:
Designed for safety-critical applications, the Triconex system, including the 3511 module, adheres to relevant industrial safety standards, ensuring a high level of security.
Online Configuration Changes:
The system supports online configuration changes, allowing users to modify logic configurations and parameters without interrupting system operation.
Application Scenarios
Triconex 3511 is widely used in various industrial sectors where high reliability and safety are paramount. Some typical application scenarios include:
Petrochemical Industry:
The module is used in petrochemical plants for monitoring and controlling critical processes, ensuring safe and efficient operations.
Power Industry:
In power stations, the 3511 module is employed for control and safety functions, safeguarding the operation of power generation equipment.
Manufacturing Industry:
The module is suitable for use in manufacturing plants, where it contributes to the automation and control of production processes.
Other Industrial Applications:
The Triconex 3511 module can also be found in water treatment facilities, transportation systems, and other industrial automation environments where reliability and safety are essential.
