SLC 500 Input Module 1746-IM8: Enhancing Industrial Automation Efficiency

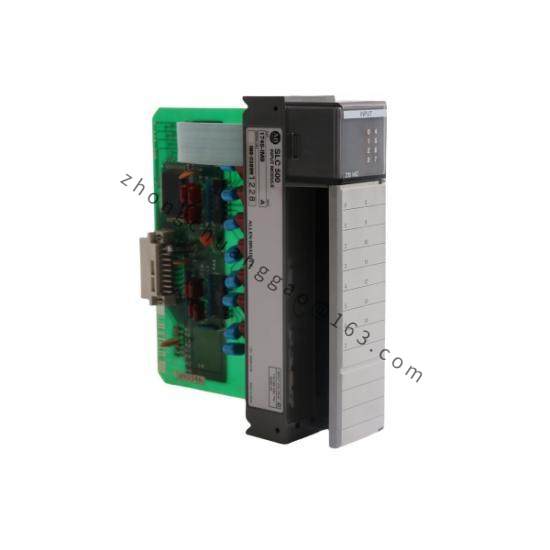

The Allen Bradley 1746-IM8 Input Module is an advanced control solution designed for seamless integration into industrial automation systems. It offers high reliability and flexibility, enabling efficient data acquisition from various sensors.
Detailed content
Number of Channels:8
Channel Resolution:16-bit
Common Mode Voltage Range:-20 to +20V
Absolute Input Voltage:+/- 7.5VDC or +/- 7.5VAC RMS (Max)
Input Range:-10 to +10VDC (-1 LSB)
Absolute Input Current:-30 to +30mA (Max)
Overvoltage Protection:7.5VAC RMS
Current Rating at 5V:35mA
Current Rating at 24V:85mA
Isolation Voltage:Backplane – 500VDC, Enclosure – Open Type
Operating Temperature:0 to 60°C
Environmental Conditions:5% to 95% non-condensing relative humidity
Shock Resistance:30G
Engineered with robust materials, the Allen Bradley 1746-IM8 Input Module is designed to withstand harsh industrial environments, ensuring reliable operation in extreme conditions.
This module is equipped with advanced signal processing technology, providing accurate and responsive input acquisition for enhanced system performance.
It seamlessly integrates with Allen Bradley’s SLC 500 series controllers, offering a plug-and-play solution for efficient installation and maintenance.
With its high isolation ratings and broad temperature range, this module ensures reliable operation across various industrial settings, from cold storage facilities to hot manufacturing plants.
Featuring an open-type enclosure, it provides easy access for maintenance and upgrade, ensuring continuous operation without the need for frequent replacements.
