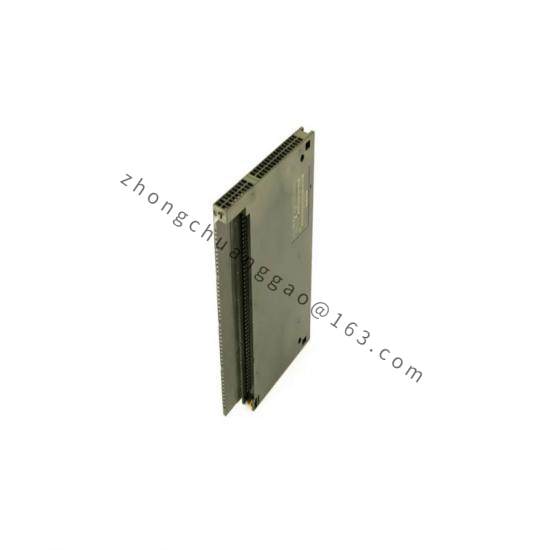

Siemens SIMATIC S7-400 SM 422 Digital Output Module, 6ES7422-1BH10-0AA0, PLC Component
The Siemens 6ES7422-1BH10-0AA0 SM 422 Digital Output Module is an essential component for industrial automation systems. It efficiently controls digital outputs with high reliability, making it ideal for applications requiring precise switching of electronic devices and machinery.
Detailed content
Operating Voltage:DC 24V
Number of Channels:16
Channel Type:Relay Outputs
Power Consumption:≤ 15W
Isolation Type:Optically Isolated
Operating Temperature Range:-25°C to +60°C
Input/Output Signal Type:Standard TTL / CMOS
Dimensions:40 PIN, 40mm x 50mm x 30mm
Weight:Approximately 60g
The Siemens SM 422 Digital Output Module – 6ES7422-1BH10-0AA0 is designed with cutting-edge technology to meet the demanding requirements of modern industrial settings. Its optically isolated relay outputs provide a high level of electrical isolation, ensuring safety and preventing interference in sensitive applications.
Featuring a compact design, this module optimizes space utilization without compromising on performance. It seamlessly integrates with SIMATIC S7-400 CPUs, offering a seamless communication interface for efficient data exchange and control.
With a versatile operating voltage range of DC 24V and a load capacity up to 5A, it supports a wide array of industrial loads, from small actuators to heavier machinery, ensuring reliable operation under various conditions.
This module boasts an extensive temperature range (-25°C to +60°C), making it suitable for a broad spectrum of industrial environments. Its CE, UL, and EN 50178 certifications confirm its adherence to international safety and quality standards, providing peace of mind for users.
Equipped with advanced features for enhanced reliability and performance, the Siemens SM 422 Digital Output Module – 6ES7422-1BH10-0AA0 is an indispensable component for achieving optimal control and efficiency in industrial automation systems.
