Processor Type:C64 CPU

Interface Type:MPI

Digital I/Os:16 Input (DI), 16 Output (DO)

Analog I/Os:4 Input (AI), 1 Output (AO)

Power Supply:24VDC

Working Memory:32KB

Operating System:Siemens S7-300 System

Communication Protocol:Modbus, MPI, PROFIBUS

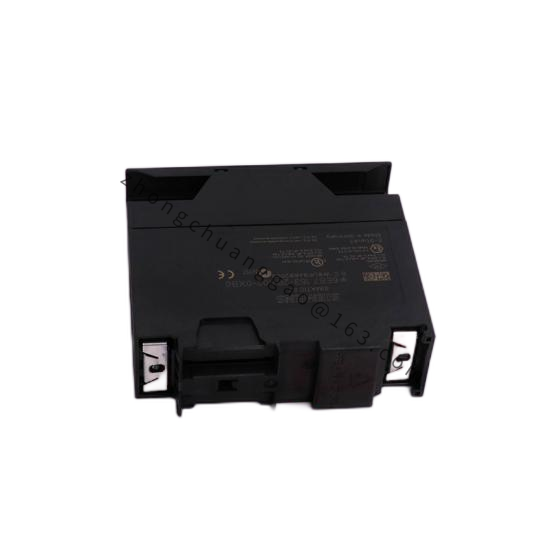

    Engineered for robust performance, the Siemens SIMATIC S7-300 CPU 314 Compact IF Module with MPI Interface provides an efficient solution for complex industrial automation tasks. Its compact design allows for easy integration into existing systems, minimizing installation time and costs.

    The module’s integrated digital inputs and outputs (16 DI / 16 DO) enable direct control over actuators and sensors, ensuring precise operation and data acquisition. The four 24-bit analog inputs and one analog output offer high-resolution measurement capabilities, crucial for applications requiring high accuracy.

    Equipped with a 24 V DC power supply, this module ensures reliable power delivery to connected devices without the need for external power sources. Its 32 Kbyte working memory supports extensive program storage and execution.

    The MPI interface facilitates communication between the CPU and other programmable logic controllers (PLCs), enhancing system scalability and connectivity. This feature is particularly beneficial in large-scale automation projects where multiple controllers are interconnected.

    Operated within a temperature range of -25°C to 60°C, the module is designed to withstand harsh industrial environments. Additionally, its IP20 protection class ensures dust resistance and limited splash water protection, making it suitable for various industrial settings.
