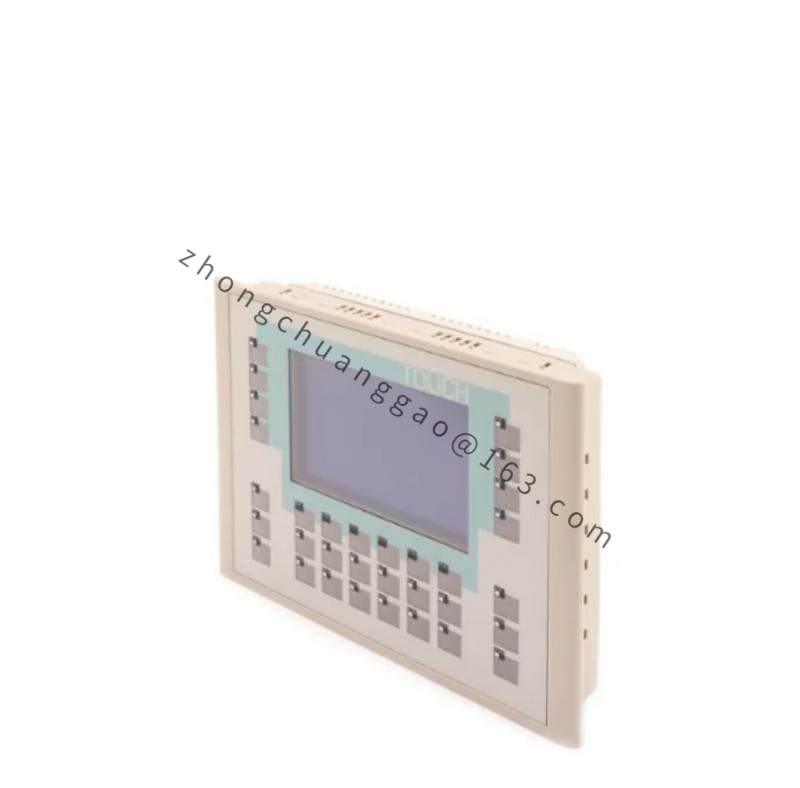

SIEMENS SIMATIC HMI 6AV6642-0DC01-1AX1 Blue Mode STN Display Panel
The SIEMENS SIMATIC HMI 6AV6642-0DC01-1AX1 Blue Mode STN Display Panel is an advanced industrial HMI solution designed for seamless integration with various automation systems. This panel supports Ethernet interface, enabling configuration from WinCC Flexible 2008 Compact SP1 or WinCC Basic V10.5, included in STEP7 Basic V10.5.
Detailed content
Operating System:Windows CE
Touch Screen Size:5.7″
Display Technology:STN
Display Color:Blue Mode
Interface Compatibility:MPI/PROFIBUS DP
Resolution:640×480 pixels
Memory:32MB RAM, 32MB Flash ROM
Communication Ports:RS485/RS422, USB
Power Supply:12V DC
Dimensions:144mm x 108mm x 23mm
Weight:0.1kg
Experience enhanced usability with this state-of-the-art HMI touch panel from SIEMENS, featuring a sleek blue mode STN display and intuitive user interface.
Equipped with an Ethernet interface, it seamlessly integrates with various industrial control systems, facilitating remote monitoring and control.
The inclusion of WinCC Flexible 2005 or WinCC Basic V10.5 configuration software ensures easy setup and customization, catering to diverse automation needs.
Engineered for robust performance, this HMI can withstand extreme temperatures (-20°C to +55°C operational, -40°C to +70°C storage), making it ideal for harsh industrial environments.
Designed with a compact footprint (296x330x76 mm) and lightweight (1.22 kg), it optimizes space and reduces transportation costs, perfect for both new installations and retrofit applications.
