Product Type:IGBT Transistor Module

Model Designation:FZ1800R16KF4

Power Rating:1800A @ 1600V

Switching Frequency:Up to 16kHz

Operating Temperature Range:-40°C to +125°C

Cooling Method:Thermal Pad Cooling

Number of Channels:4

Insulation Resistance:≥ 10^13 Ohm

Dielectric Strength:5000V AC

Input Output Voltage:DC ±2000V

Operating Current:Continuous: 300A, Peak: 1800A

Control Interface:Optical Isolation

Mounting Type:Panel Mount

Package:Industry Standard

Net Weight:0.7kg

Dimensions:LxWxH: 150mm x 80mm x 40mm

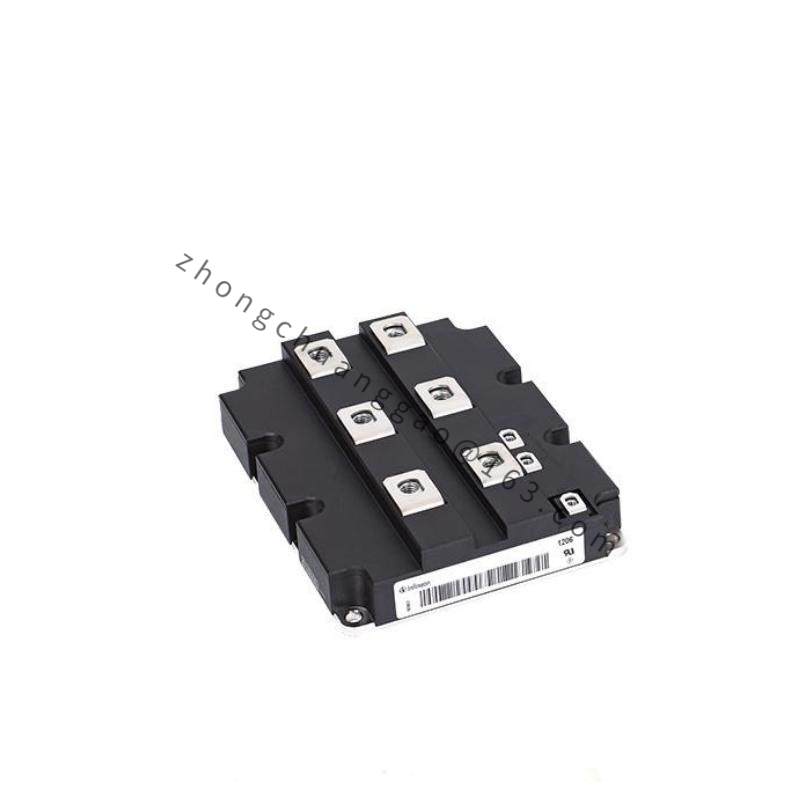

    Introducing the Siemens FZ1800R16KF4 Trans IGBT Module, engineered for maximum efficiency and reliability in industrial applications. This state-of-the-art module boasts a robust design that ensures consistent performance under challenging conditions.

    Featuring a power rating of 1800A at 1600V, this module is capable of delivering high-performance drive solutions with exceptional energy efficiency. Its operating temperature range from -40°C to +125°C makes it suitable for a wide variety of environments.

    Equipped with advanced thermal pad cooling technology, the FZ1800R16KF4 ensures optimal heat dissipation, preventing overheating and enhancing longevity. The module supports up to four channels, providing flexibility for various industrial applications.

    With a high insulation resistance of ≥ 10^13 Ohm and a dielectric strength of 5000V AC, this module ensures safe operation and protection against electrical disturbances. It offers a continuous operating current of 300A and a peak current capability of 1800A, making it suitable for demanding applications.

    The module’s optical isolation feature ensures reliable communication between the drive system and the control interface, reducing interference and improving overall system stability. Its panel mount design adheres to industry standards, facilitating easy integration into existing systems.

    Designed with the future in mind, the Siemens FZ1800R16KF4 Trans IGBT Module is a testament to our commitment to innovation and quality. Backed by comprehensive technical support and a long-standing reputation for excellence, this module is an ideal choice for enhancing the performance of your industrial control systems.
