Siemens 6GK7343-1GX21-0XE0: CP 343-1 Advanced Communication Processor

The Siemens CP 343-1 Advanced 6GK7343-1GX21-0XE0 Communications Processor facilitates seamless integration with SIMATIC S7-300 systems on industrial Ethernet networks using advanced protocols like TCP/IP and UDP, enhancing efficiency and connectivity.

Detailed content

Model Number:6GK7343-1GX21-0XE0

Manufacturer:Siemens

Net Weight:0.299 kg

Packaging Dimensions:13.20 x 14.80 x 5.10 cm

Communication Interface:Industrial Ethernet via TCP/IP and UDP

Multicast Support:Yes

SEND/RECEIVE Capabilities:RFC1006 compatible

Fetch/Write Functionality:Integrated

S7 Communication Support:Server mode

PROFINET IO Device Integration:Included

ERTEC 200 2-Port Switch:Standard

Module Replacement Compatibility:Without PG

SNMP Diagnostics:Available

Initialization Method:Via LAN

LAN Connections:2x RJ45 for 10/100 Mbit/s

    The Siemens CP 343-1 Advanced 6GK7343-1GX21-0XE0 Communications Processor is engineered to enhance the operational efficiency of your industrial control system by providing robust connectivity options over Industrial Ethernet networks. This advanced processor seamlessly integrates with SIMATIC S7-300 systems, offering unparalleled performance and reliability.

    Equipped with state-of-the-art technology, this communications processor supports versatile communication protocols including TCP/IP and UDP, ensuring seamless data exchange between your control systems and other networked devices. Its support for multicast, SEND/RECEIVE, Fetch/Write, and S7 communication in server mode empowers you to manage complex automation tasks with ease.

    Featuring an integrated 2-port ERTEC 200 switch, the processor ensures efficient data flow while maintaining a compact design that facilitates easy installation and replacement without the need for specialized programming tools like PG (Programmable Graphics). This makes maintenance and updates hassle-free, saving you time and resources.

    The inclusion of SNMP diagnostics provides real-time monitoring capabilities, enabling proactive management of network health and performance. Initialization via LAN simplifies setup processes, allowing quick deployment in various industrial environments.

    With its dual RJ45 connections supporting 10/100 Mbit/s speeds, the Siemens CP 343-1 Advanced 6GK7343-1GX21-0XE0 Communications Processor ensures high-speed data transfer rates, crucial for demanding industrial applications. Its lightweight and compact dimensions make it suitable for a wide range of installations, enhancing system scalability and flexibility.

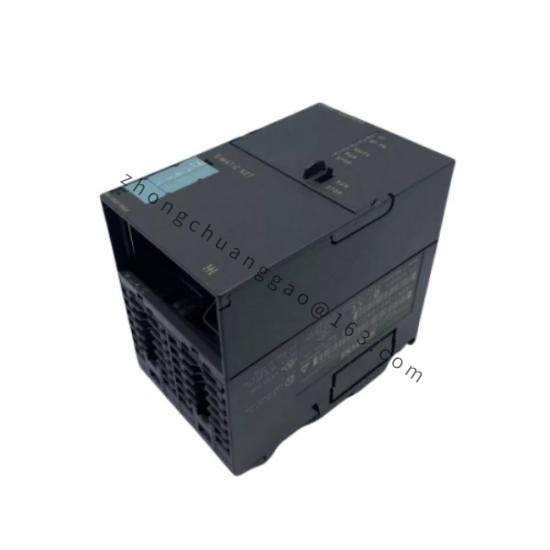

Siemens 6GK7343-1GX21-0XE0  CP 343-1 Advanced Communications Processor

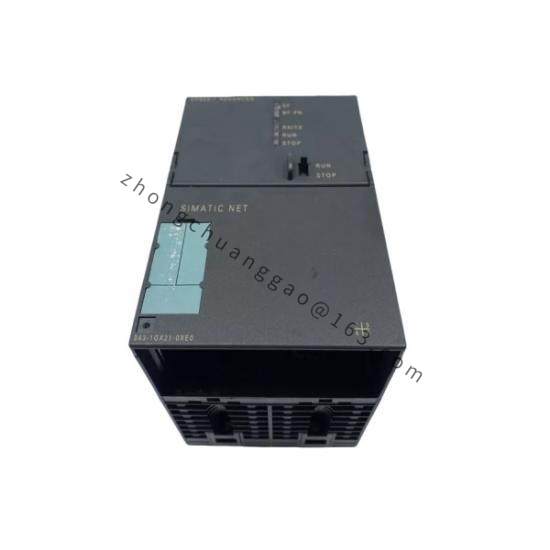

Siemens 6GK7343-1GX21-0XE0  CP 343-1 Advanced Communications Processor

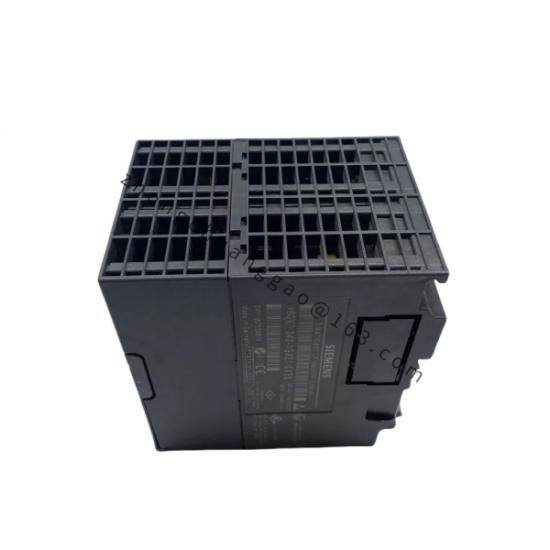

Siemens 6GK7343-1GX21-0XE0  CP 343-1 Advanced Communications Processor
