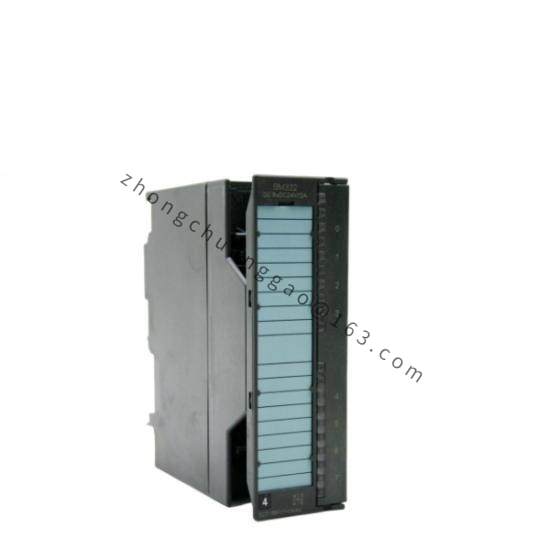

SIEMENS 6ES7322-1BF01-0AA0: Advanced Digital Output Module for Industrial Automation
The SIEMENS 6ES7322-1BF01-0AA0 Digital Output Module is designed for seamless integration into the SIMATIC S7-300 system, providing 8 channels of digital outputs optimized for industrial control applications.
Detailed content
Power Supply Voltage:DC 24V
Current Rating per Channel:0.5A
Number of Channels:16
Channel Configuration:8 PNP and 8 NPN
Operating Frequency:Up to 20 kHz
Input Resistance:Open Collector
Isolation:Optically isolated
Communication Compatibility:Built-in for seamless integration
Temperature Range:-25°C to +60°C
Dimensions (WxDxH):132mm x 152mm x 50mm
Weight:0.368 kg
Module Type:DI
Product Class:Digital Output
Integrating advanced semiconductor technology, the SIEMENS SIM 6ES7322-1BF01-0AA0 Digital Output Module ensures high efficiency and reliability in industrial automation environments.
This module is specifically designed for seamless integration into SIMATIC S7-300 systems, providing robust digital outputs that can handle a wide range of industrial applications.
With its optically isolated 8 digital outputs, this module supports relay switching, making it ideal for controlling motor starters, solenoids, and other electric actuators.
Equipped with built-in diagnostic features, the module continuously monitors and reports any potential issues such as short circuits or power interruptions, ensuring system stability and minimizing downtime.
Featuring a compact and modular design, the SIEMENS SIM 6ES7322-1BF01-0AA0 Digital Output Module is easy to install and integrate, enhancing the overall flexibility and scalability of your automation system.
