Model Number:6ES7138-4DA04-0AB0

Manufacturer:SIEMENS

Module Type:DP Electronics Module

Application:Industrial Automation Systems

Installation Width:15 mm

Operating Modes:Count, Measure, Cycle Duration Measurement

Resolution:High

Sync Mode:Clock Synchronization

Power Supply:24 V/100 kHz

Communication Interface:SI Serial Interface

Channel:1 Channel

Communication Protocol:MODBUS/USS

Dimensions:6.40 x 9.10 x 2.00 cm

Weight:0.045 kg

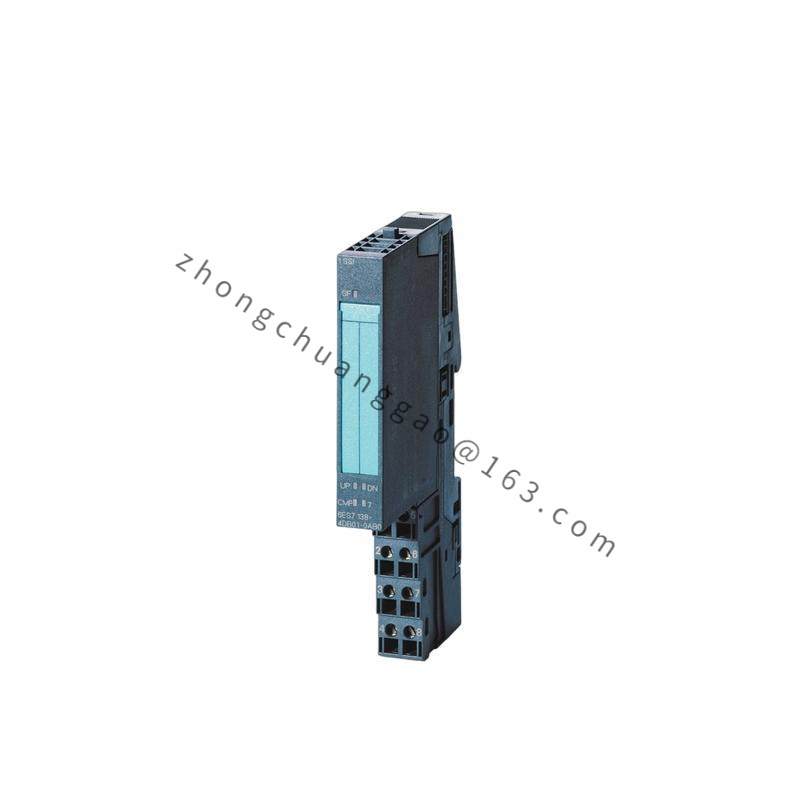

    The SIEMENS 6ES7138-4DA04-0AB0 DP Electronics Module is a critical component in industrial automation systems, engineered for precision and reliability. It is specifically designed for use with ET 200S platforms, providing accurate measurement and cycle synchronization capabilities.

    This module boasts a compact design with a 15 mm installation width, ensuring efficient space utilization in control panels. Its high-resolution measurement capability allows for precise data acquisition, making it ideal for applications requiring high accuracy.

    With support for various operational modes including count, measure, and cycle duration measurement, this module offers flexibility to adapt to diverse application needs. The inclusion of an internal EMI filter ensures robust performance against electromagnetic interference, enhancing system stability.

    Featuring cycle times of just 0.5 ms, this module ensures rapid processing speeds, crucial for real-time control applications. The ±20mA input current range and 15-bit resolution provide a wide dynamic range and high precision, supporting accurate signal interpretation.

    Moreover, the module’s ±0.1% operational limit, monitored by an SF LED indicator, ensures immediate detection of faults, facilitating quick maintenance actions and minimizing downtime. This feature is particularly beneficial in mission-critical industrial settings, where reliability is paramount.
