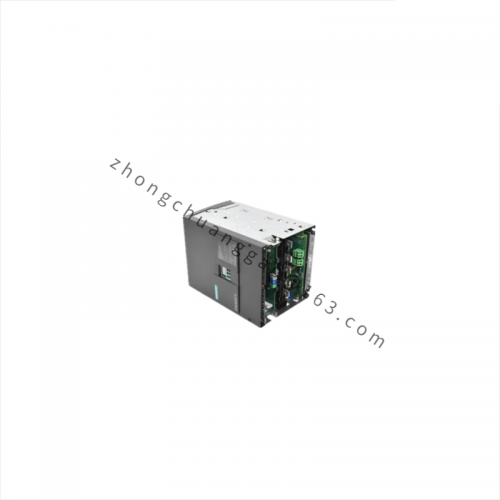

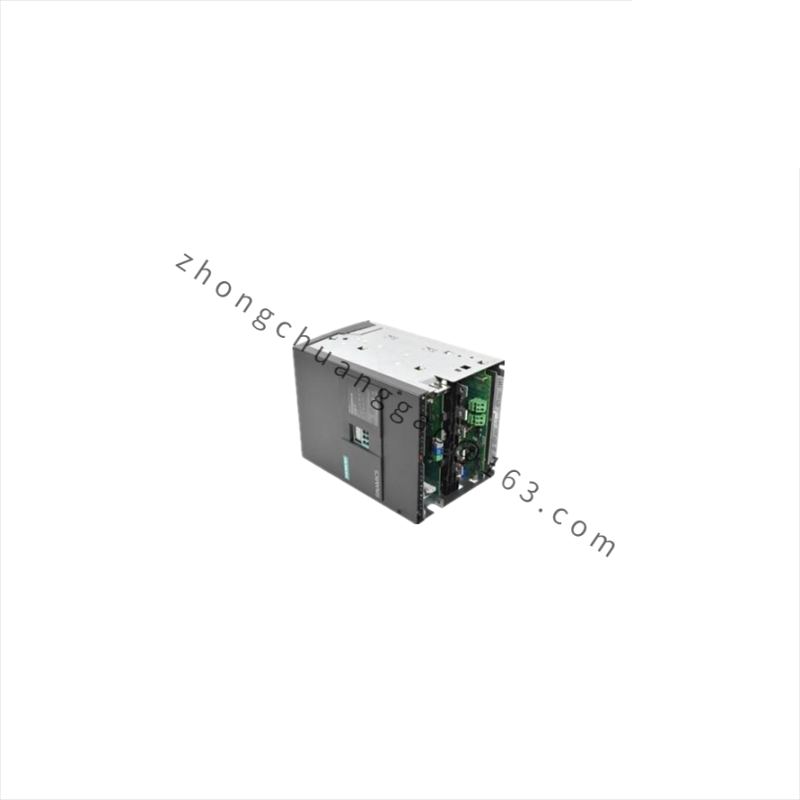

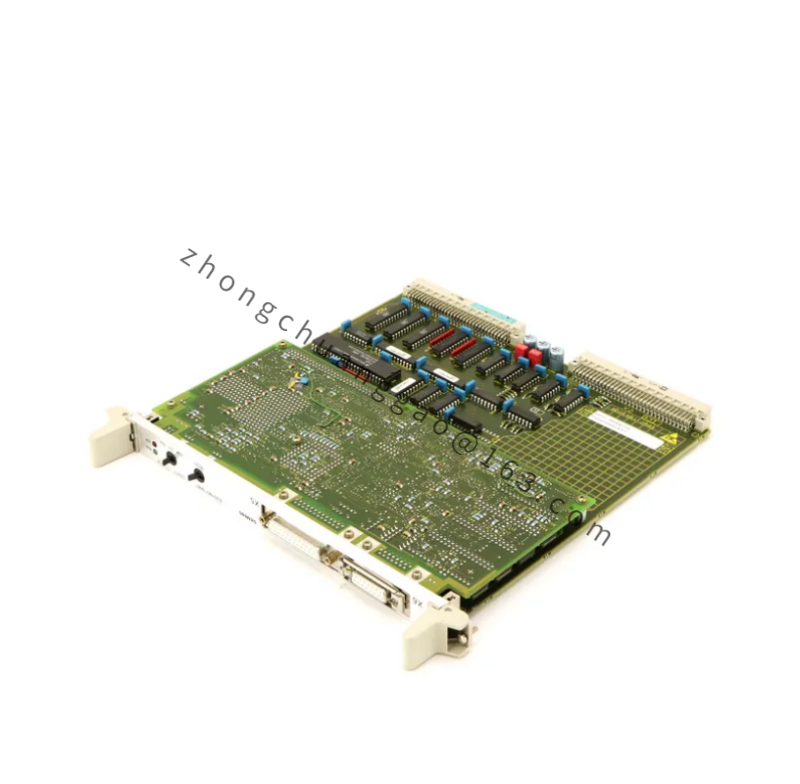

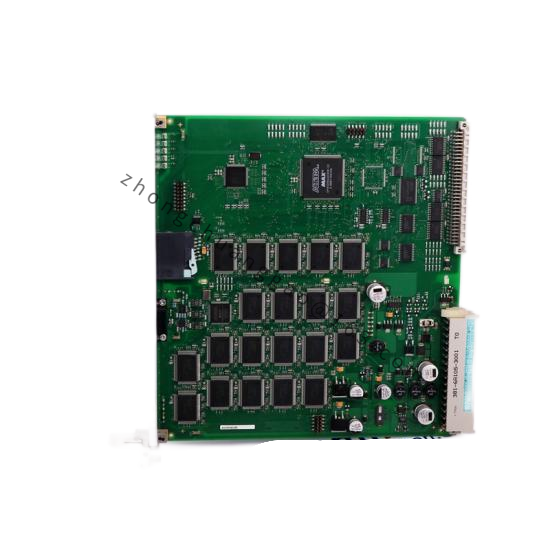

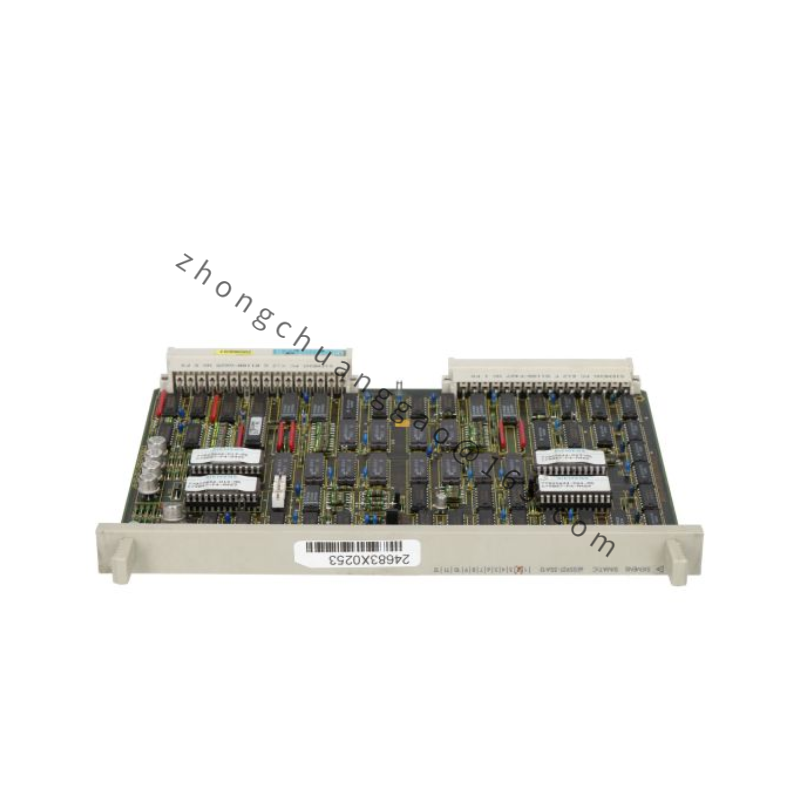

Siemens 6DD1661-0AB1 – Universal 2-Axis Control Loop Block with Incremental Encoder and Endat Absolute Value Encoder
The Siemens 6DD1661-0AB1 is a universal control module designed for industrial automation systems. It provides reliable performance and flexibility for a wide range of applications including motion control, process automation, and machine building.
Detailed content
Manufacturer:Siemens
Product Model:6DD1661-0AB1
Type:Digital Servo Drive
Voltage Rating:230 V AC
Current Rating:3 A
Output Power:200 W
Control Interface:EtherCAT
Communication Protocol:Profinet
Frequency Range:0 to 1200 Hz
Positioning Accuracy:± 0.01 mm
Response Time:< 1 ms
Environmental Conditions:Operating Temperature: -10°C to +40°C, Humidity: 5% to 95%
The Siemens 6DD1661-0AB1 is a high-performance control module designed for use in industrial environments where precise motion control is essential. This module supports two axes and integrates both incremental and absolute encoders, providing accurate feedback and position control.
The incremental encoder delivers real-time position data, ensuring smooth and continuous motion control. The Endat absolute value encoder provides a reference point for each axis, allowing for quick restarts and improved system reliability.
This control loop block is designed to be easily integrated into existing industrial automation systems, offering a compact form factor and straightforward installation process. It can be expanded with additional options, making it highly flexible for various application requirements.
The module operates within a wide temperature range (-25°C to +70°C), ensuring reliable performance even in harsh industrial conditions. Its IP20 protection rating makes it suitable for use in controlled environments.
With its robust design and advanced features, the Siemens 6DD1661-0AB1 is an excellent choice for engineers and technicians looking to enhance the precision and efficiency of their industrial automation systems.
