Brand:SIEMENS

Model:6AV3503-1DB10

Display Size:3″

Display Type:LC Display

Backlight:LED Backlit

Characters Per Line:20

Operating System Compatibility:SIMATIC S5, 505, S7, M7

Communication Protocol:PROFIBUS DP 12 Mbaud

UL/CSA Approval:Yes

Net Weight:0.503 kg

Packaging Dimensions:15.40 x 18.70 x 5.60 cm

Material:High-Grade Plastic and Metal

Power Supply:Standard Industry Power

Dimensions:26.10 x 28.50 x 8.10 cm

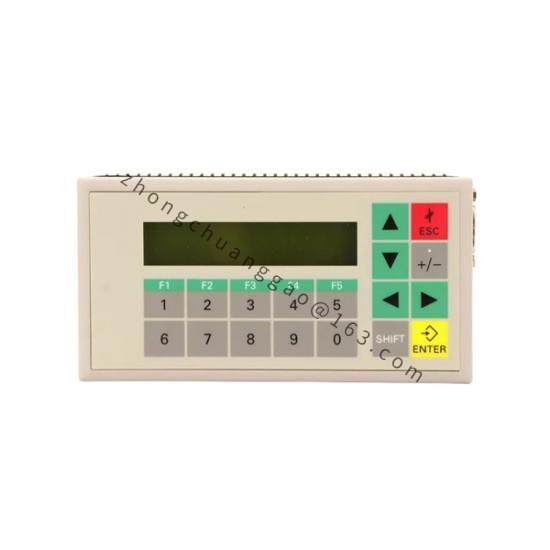

    The SIEMENS 6AV3503-1DB10 Operator Panel is engineered for efficient operation within the industrial control sector. Its compact design and intuitive interface make it suitable for various applications, enhancing productivity and user experience.

    Featuring a 3-inch LC display with LED backlighting, this operator panel ensures clear visibility under different lighting conditions. With a 4-tier display capable of showing up to 20 characters per line, it delivers precise information at a glance.

    Supporting a wide range of operating systems including SIMATIC S5, S7, and M7, the panel seamlessly integrates with SIMATIC systems, enabling advanced control over automation processes. The inclusion of PROFIBUS DP communication interface ensures robust data transfer, crucial for complex industrial environments.

    The panel comes equipped with open-source software, which is provided free of charge. This feature allows users to customize their operations further, maximizing efficiency and flexibility. The software is enclosed on a CD, ensuring easy access and setup.

    With UL/CSA approval, the SIEMENS 6AV3503-1DB10 Operator Panel meets stringent safety standards, offering peace of mind for users. Its lightweight and compact packaging dimensions facilitate convenient handling and installation.
