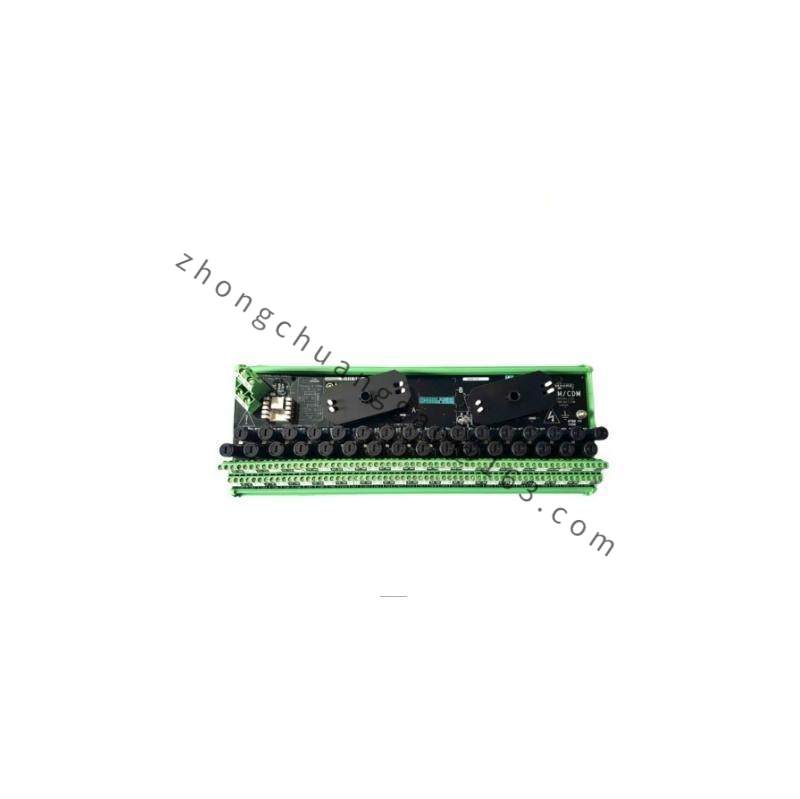

SIEMENS 16436-1-03: SDM/CDM Relay Marshalled Termination Module
The SIEMENS 16436-1-03 relay marshalled termination is designed for industrial control systems, offering a robust solution for managing relay signals efficiently. It integrates seamlessly into various automation environments, ensuring reliable operation and enhanced system performance.
Detailed content
Relay Type:SDM/CDM
Module Capacity:16 Channels
Operating Voltage:24VDC
Contact Rating:3A @ 24VDC
Relay Life Expectancy:Over 10 million operations
Termination Mode:Marshalled
Temperature Range:-25°C to +70°C
Certification:UL, CE
The SIEMENS 16436-1-03 relay marshalled termination is a critical component for enhancing the reliability and efficiency of industrial control systems. Its compact design and robust construction ensure it can withstand harsh industrial environments.
With 16 SPST relays, this unit provides ample capacity for managing multiple signals simultaneously, facilitating smooth data flow and control within automation systems.
Featuring a 24VDC/24VAC contact rating at 1A, it supports a wide range of applications requiring precise control over electrical circuits.
Easy panel mounting ensures quick installation and integration into existing control panels, minimizing downtime and simplifying system setup.
Operable in temperatures ranging from -25°C to +60°C, it maintains its functionality across various operational conditions, making it suitable for diverse industrial settings.
With an IP20 environmental protection rating, this relay marshalled termination is protected against dust and splashes of water, ensuring durability and longevity in industrial environments.
