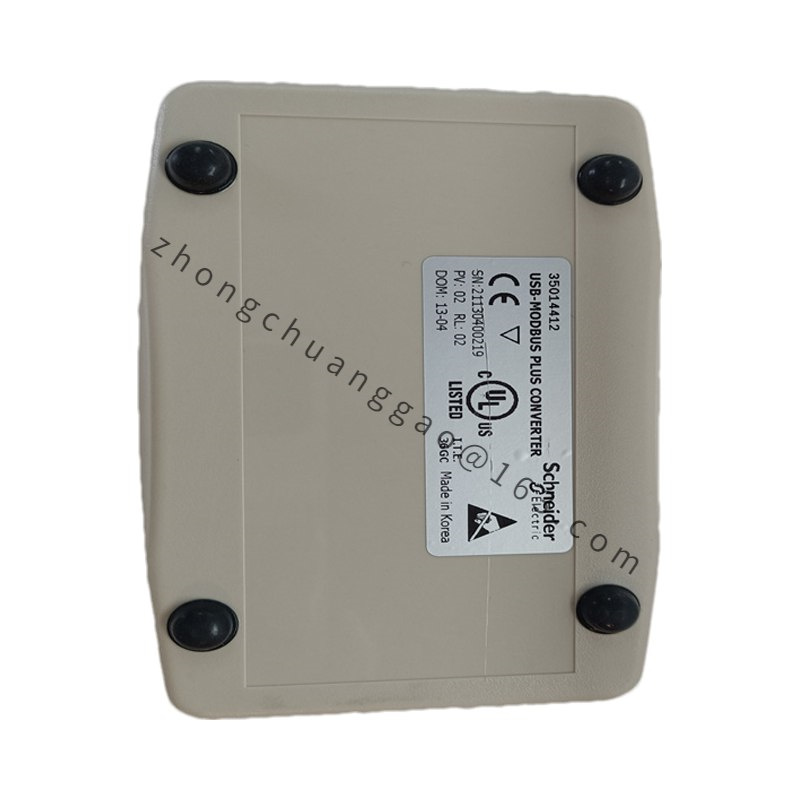

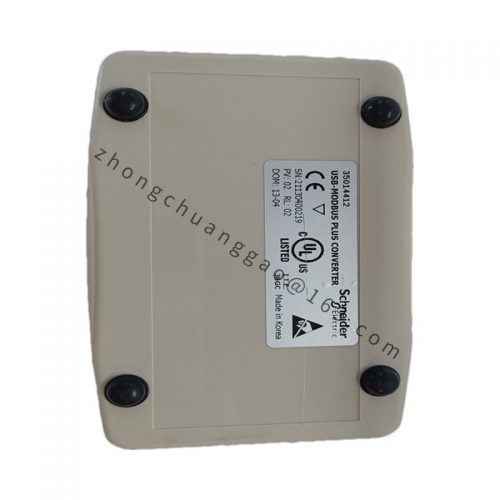

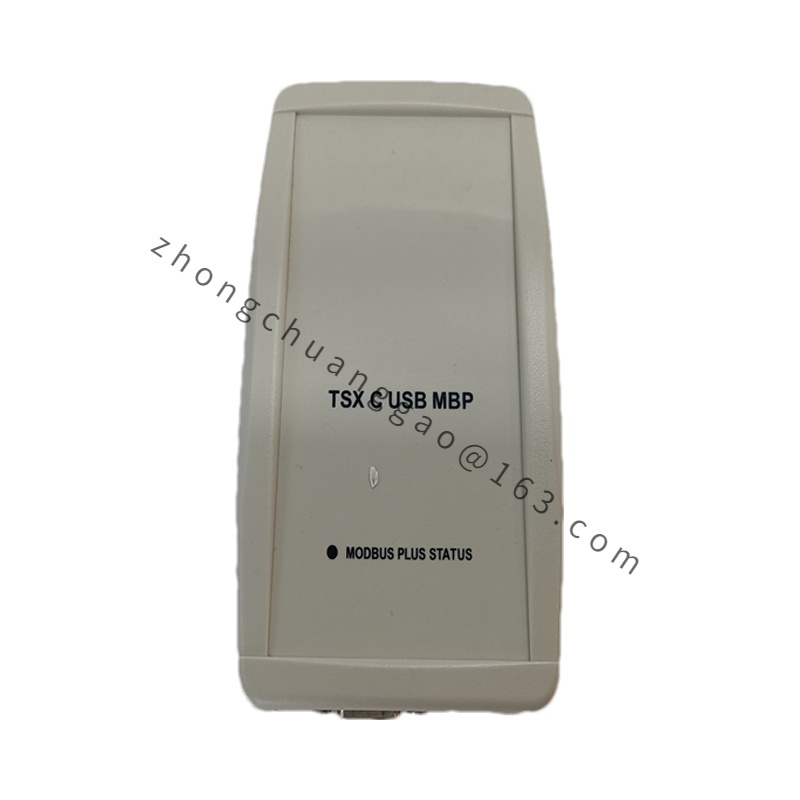

Schneider TSXCUSBMBP
Schneider TSXCUSBMBP is a communication adapter module produced by Schneider Electric, specifically designed for industrial automation applications. It serves as a bridge between computers or other devices and Schneider Electric’s Programmable Logic Controllers (PLCs), enabling seamless communication, programming, monitoring, and data transmission.
Detailed content
Technical Specifications
- Input Voltage Range: 12-48VDC (some sources mention 85V to 265V AC for power modules, but this may refer to a different product variant)
- Output Voltage: 5VDC
- Output Current: Max 10A
- Efficiency: Over 90%
- Dimensions: 170mm x 105mm x 32mm (or similar, depending on the specific model)
- Weight: Approximately 120g
- Operating Temperature: -20°C to +50°C
- Storage Temperature: -40°C to +70°C
- Humidity: 5% to 95% relative humidity (non-condensing)
- CPU: 32-bit RISC processor
Functional Characteristics
- USB Interface: Provides a convenient connection to computers for data transmission.
- PLC Compatibility: Ensures stable communication with Schneider Electric’s PLCs.
- Programming and Monitoring: Allows users to program, debug, and monitor PLCs using dedicated software.
- Data Transmission: Supports data transfer between PLCs and computers.
- Portability: Easily connects to different PLCs and computers for various projects.
- Software Support: Manufacturers usually provide software for easy PLC programming, monitoring, and data management.
- Driver Requirement: Needs drivers installed on the computer for proper recognition and communication.
Application Scenarios
- Machine Control: Powers servo motors, stepper motors, and other motors.
- Process Control: Provides power for sensors, actuators, and other control devices.
- Communication Systems: Powers base stations, routers, and other communication equipment.
- Medical Equipment: Supplies power to medical devices.
- Testing and Measurement Equipment: Powers testing and measurement devices.
