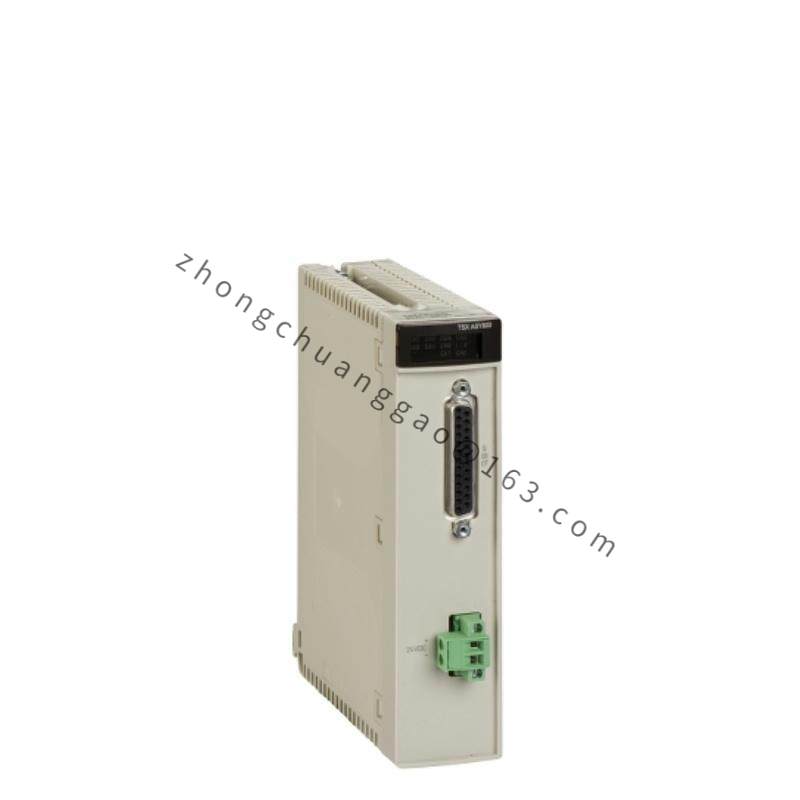

Schneider TSXASY800 Analog Output Module: Precision Control for Industrial Automation
The Schneider TSXASY800 Analog Output Module is a high-performance automation solution designed for seamless integration into the Modicon Premium platform, offering versatile control over various industrial processes through its 8-channel analog outputs.
Detailed content
Product Type:Module
Product ID:TSXASY800
Schneider Type Designation:Module
Range of Product:Modicon Premium Automation
Product or Component Type:Analog output module
Analog Output Number:8
Analog Output Type:[“Current 0…20 mA”,”Current 4…20 mA”,”Voltage +/- 10 V”]
Analog/Digital Conversion:13 bits + sign, 13 bits 0…20 mA, 13 bits 4…20 mA
Electrical Connection:1 SUB-D 25 connector
Current Consumption:200 mA @ 5 V DC, 300 mA @ 24 V DC
Engineered for high precision and reliability, the Schneider TSXASY800 Analog Output Module is a core component in the Modicon Premium Automation platform, offering seamless integration and enhanced system performance.
With its 8-channel design, this module supports a variety of output types, including current (0…20 mA, 4…20 mA) and voltage (+/- 10 V), catering to diverse industrial control needs.
Featuring a 13-bit digital conversion with a sign extension, the module ensures accurate signal processing, enabling precise control and monitoring in various applications.
The robust electrical connection via a SUB-D 25 connector ensures reliable data transmission and easy installation, facilitating quick setup and maintenance.
Built for efficiency, the TSXASY800 operates on a low current consumption, optimizing energy usage without compromising performance, making it an economical choice for industrial environments.
Designed for unparalleled scalability and flexibility, this module supports optimal versatility across different automation setups, enhancing operational efficiency and adaptability.
