Product Type:Module

Product ID:BMXP342020H

Schneider Type Designation:Processor Module

Range of Product:Modicon M340 Automation Platform

Component Type:Processor Module

Number of Racks:4

Number of Slots:11

Current Consumption:95 mA @ 24 VDC

Supply Voltage:Internal Power Supply via Rack

Communication Ports:[“USB”,”Modbus”,”SERIAL”,”Ethernet-Modbus”,”TCP”]

Maximum I/O Capacity:1024 I/O (In-rack discrete I/O) / 256 I/O (In-rack Analog I/O)

Multi-Rack Capacity:704 I/O

Single Rack Capacity:1024 I/O

Memory:1024 Discrete / 256 Analog

Mounting Type:Rack

Operating Temperature:0 to 60°C

Environmental Resistance:Resistant to harsh environment (Conformal Coated PCB)

IP Rating:IP20

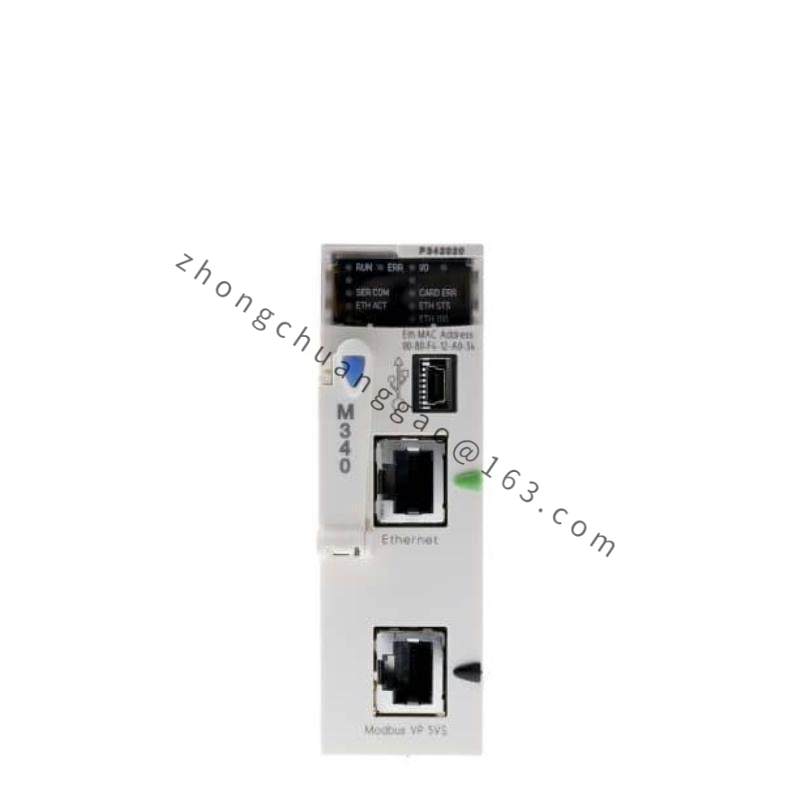

    The Schneider Electric BMXP342020H PLC Processor Module is a critical component of the Modicon M340 automation platform, designed to offer high performance and reliability in a wide range of industrial applications.

    Equipped with an internal power supply and capable of supporting up to 1024 input/output channels, this module ensures efficient and stable operation in both single and multi-rack configurations.

    Featuring robust communication capabilities including USB, Modbus, SERIAL, Ethernet-Modbus, and TCP interfaces, it facilitates seamless integration and data exchange within complex control systems.

    With its conformal coated PCB, the module is engineered to withstand harsh environmental conditions, ensuring reliable operation in demanding industrial settings.

    Boasting 1024 discrete and 256 analog memory, this processor module provides ample space for programming and data storage, supporting sophisticated logic and control tasks.
