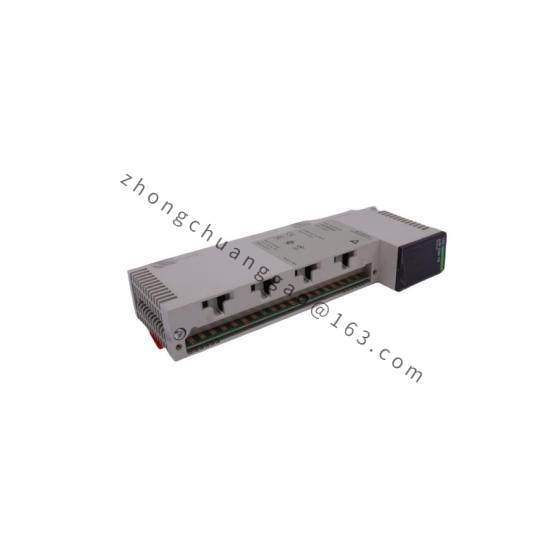

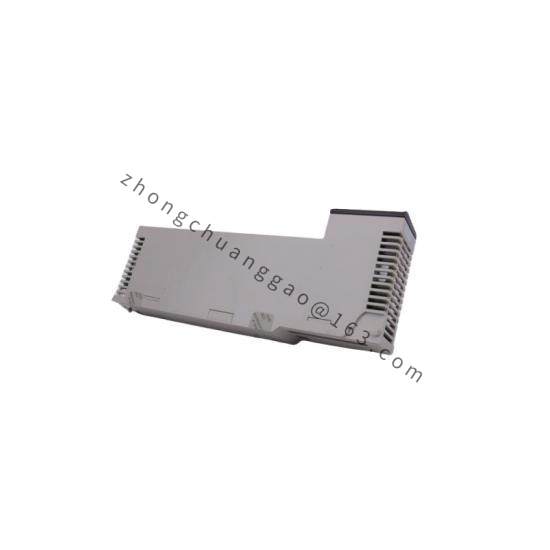

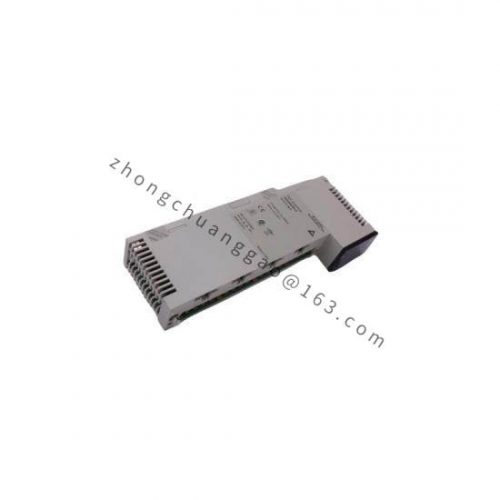

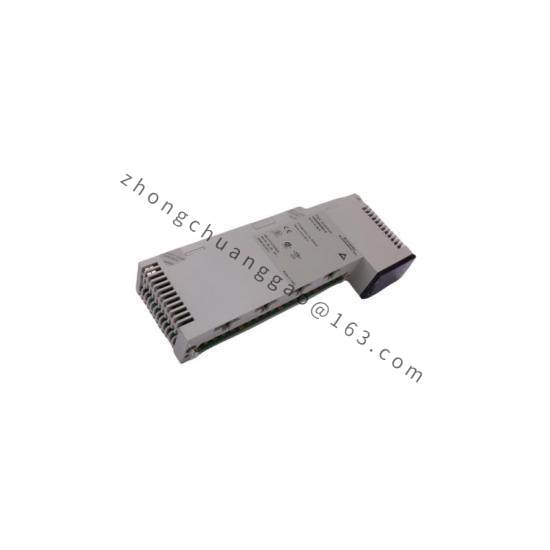

Schneider 140ARI03010 Analog Input Module – Quantum Automation Platform
This Quantum Analogue Input Module by Schneider Electric offers seamless integration into the Quantum automation platform, providing an array of 8 intelligent analog inputs. Ideal for applications requiring high-precision data acquisition, it supports a variety of temperature sensing standards, including RTD and various types of platinum resistance thermometers.
Detailed content
Extended Product Type:Analog Input Module
Product ID:140ARI03010
Schneider Type Designation:Quantum
Analog input number:8
Bus current requirement:200 mA
Power dissipation in W:1 W
Product weight:0.66 lb (US) or 0.3 kg
Operating Temperature Range:-40°C to +70°C
Conformal Coating:Yes
Environment Resistance:IP20
Communication Protocol:Modbus TCP
Network Support:Ethernet
Transmission Rate:10/100 Mbit/s
The Schneider Electric 140ARI03010 Quantum Analogue Input Module is a critical component for industrial automation systems, designed to enhance precision and reliability in data acquisition. With its 8-channel analog input capability, it seamlessly integrates a wide range of sensors, supporting various types such as RTD, Ni100, Ni200, Ni500, Ni1000, Pt100, Pt200, Pt500, and Pt1000.
Featuring a high-resolution 13-bit ADC (Analog-to-Digital Converter), this module ensures accurate conversion of analog signals into digital data, crucial for effective control and monitoring operations. The inclusion of conformal coating makes it particularly suitable for applications in challenging environments, offering robust protection against dust, moisture, and other contaminants.
Utilizing the latest technology, the module is compatible with the Modicon Quantum series, enabling seamless integration into existing automation platforms. Its compact design and lightweight construction make it easy to install and maintain, without compromising on performance.
For enhanced user experience, the module incorporates an intuitive LCD display, providing real-time information about the status of the input channels and system settings. This feature ensures quick and easy configuration, allowing operators to monitor and adjust parameters efficiently.
Committed to sustainability and energy efficiency, the Schneider Electric 140ARI03010 Quantum Analogue Input Module consumes minimal power, reducing operational costs and environmental impact. Backed by Schneider Electric’s reputation for quality and reliability, this module is a trusted choice for industrial automation solutions, ensuring continuous performance and minimizing downtime.
