Operating Range:4-20mA

Input Type:Analog

Resolution:12-bit

Accuracy:+/- 0.2%

Power Consumption:Less than 20mW

Operating Temperature:-20°C to +70°C

Environmental Protection:IP20

Communication Protocol:Modbus

Connection Type:Terminal Block

Number of Channels:3

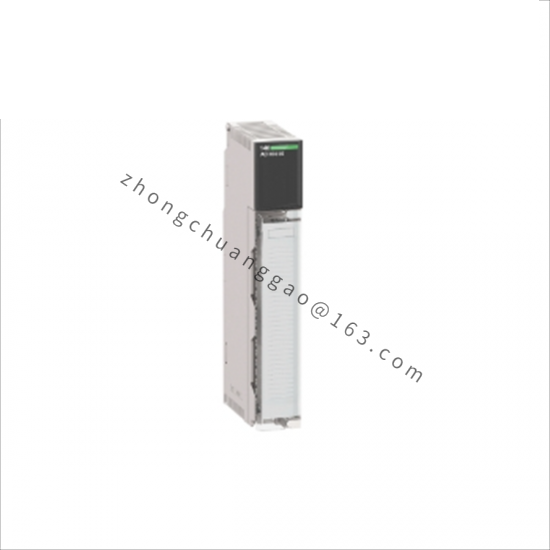

    The Schneider 140AC103000 Analog Input Module is a vital component in modern industrial control systems, designed for robust performance in a variety of challenging environments. It seamlessly integrates into Schneider’s Quantum PLC series, enhancing system accuracy with its high-resolution 12-bit ADC.

    With its wide signal range from -10V to +10V, this module can accurately capture a broad spectrum of input signals, making it suitable for applications requiring precise voltage readings. Its ±0.2% accuracy ensures reliable data transmission, critical for maintaining operational efficiency and quality control.

    Operating within an impressive temperature range from -40°C to +70°C, the module is engineered for durability and longevity, ensuring continuous operation in even the most extreme conditions. The IP20 enclosure provides basic protection against dust and splashing water, further safeguarding internal components from environmental hazards.

    Power efficiency is a key feature of the Schneider 140AC103000, consuming up to only 50mA at 24VDC, making it energy-conscious and ideal for systems with power constraints. This module supports Modbus communication protocol, facilitating seamless integration with existing control systems and simplifying setup processes.

    Designed with user convenience in mind, the Schneider 140AC103000 Analog Input Module offers straightforward installation and configuration, minimizing downtime and maintenance costs. Its compatibility with Schneider’s Quantum PLC ensures a cohesive and efficient automation solution, driving productivity and innovation in manufacturing processes.
