Power Supply Voltage:DC 24V

Operating Temperature Range:-20°C to +55°C

Counting Capacity:Up to 65,535 pulses

Accuracy:+/-0.01% of reading

Communication Protocol:EtherNet/IP, Modbus TCP

Dimensions (WxHxD):2.8 x 5.3 x 3.2 inches

Weight:0.3 lbs

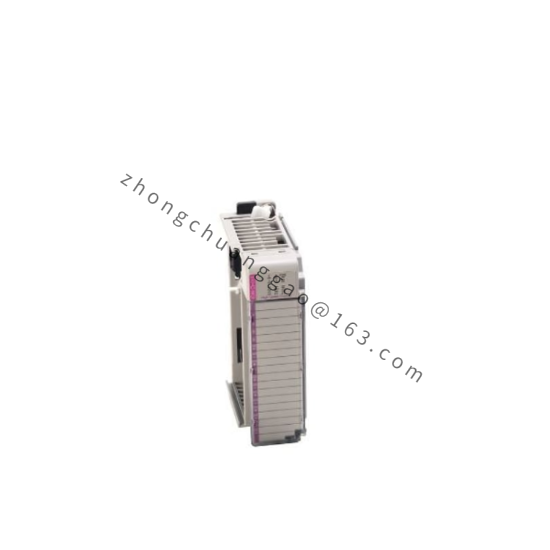

    The 1769-HSC module from Rockwell Automation is a high-performance solution for applications requiring precise and rapid counting or processing of encoder signals. It seamlessly integrates into the CompactLogix family, offering a robust and versatile addition to control systems.

    Featuring a compact yet durable design, this module ensures efficient use of space on your control panel while maintaining high levels of reliability and accuracy. It’s built to withstand harsh industrial environments, making it suitable for a wide range of applications including manufacturing, packaging, and robotics.

    With its high-speed capabilities, the 1769-HSC module can handle complex motion control tasks with ease, optimizing production efficiency and reducing downtime. Its compatibility with EtherNet/IP protocol ensures seamless communication with other components in your automation network.

    Ease of installation and integration are further enhanced by its standard mounting dimensions and straightforward setup procedures, making it accessible for technicians with varying levels of experience. The module also supports advanced diagnostics, allowing for proactive maintenance and system optimization.

    To maximize performance and longevity, the 1769-HSC module utilizes advanced signal processing algorithms and robust electrical components. This ensures not only precision in operation but also reliability, even under demanding conditions. It’s an ideal choice for manufacturers looking to enhance their automation capabilities without compromising on quality or safety.
