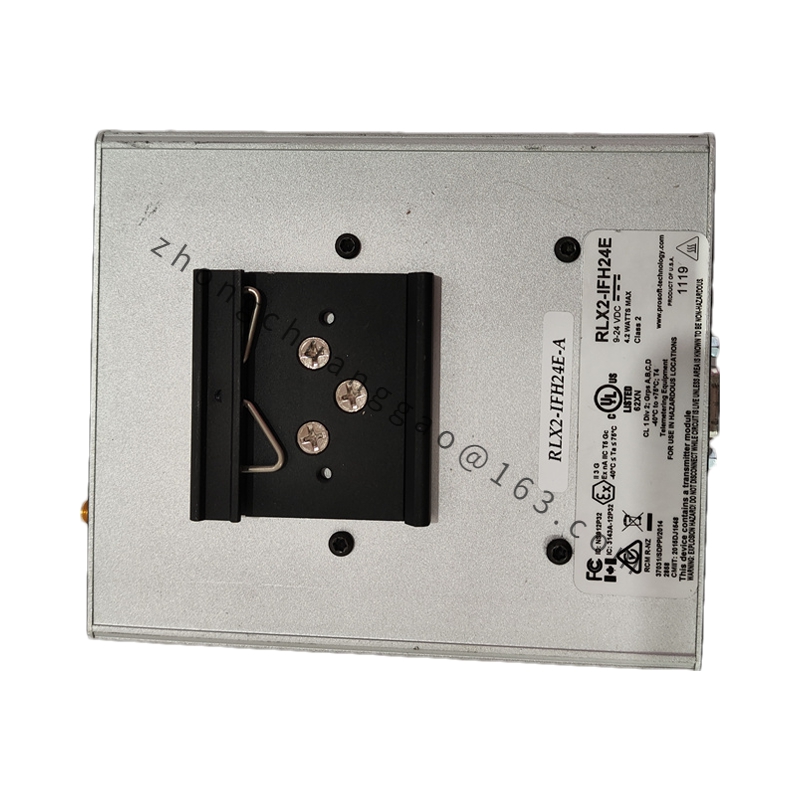

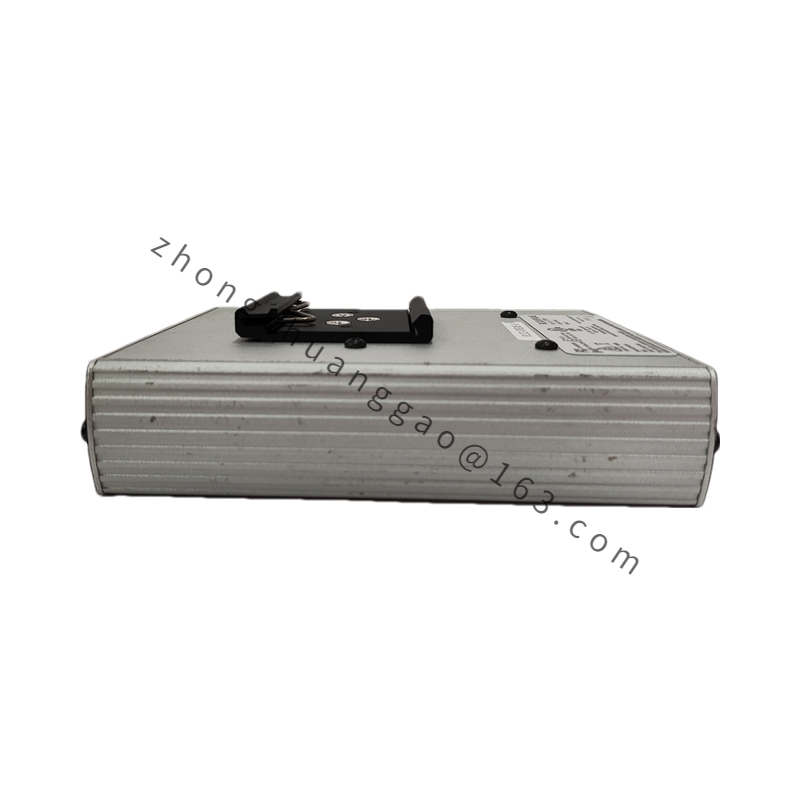

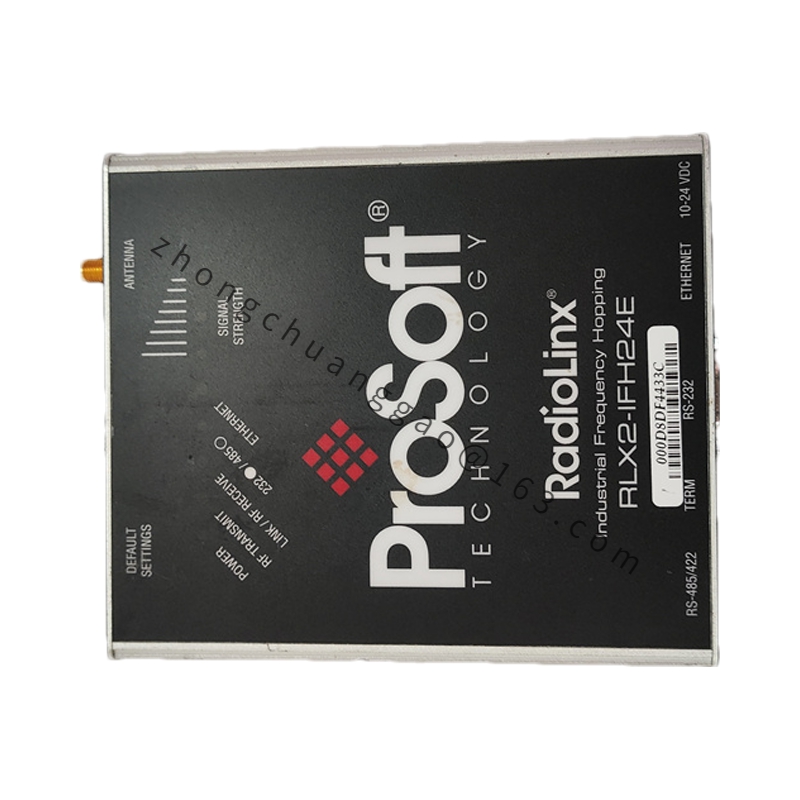

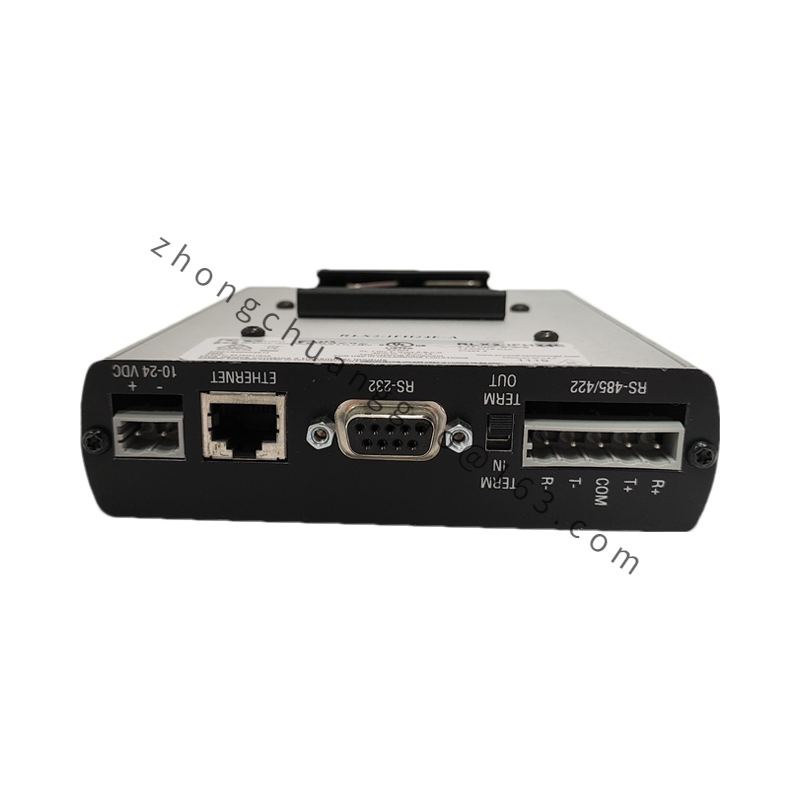

Prosoft RLX2-IFH24E
1、 Technical specifications
Frequency: 2.400 to 2.4835 GHz
Protocol: Supports all standard IEEE 802.3 protocols
Security: Adopting 128 bit AES encryption
Network topology: supports various network topology structures such as point-to-point, point-to-point, storage and forwarding relays, etc
Intelligent packet switching: used for virtual point-to-point communication
Error detection: Supports 32-bit CRC and ARQ (automatic resend query)
Radio type: Frequency hopping spread spectrum
Transmission power: FCC-A model programmable range from 100 mW to 1W, ETSI-E model programmable range from 10 mW to 100 mW
Channel data transmission rate: programmable to 1.1 Mbps or 345 kbps
Receiving sensitivity: -97 dBm @ 10-6 BER at 1.1 Mbps; At 345 kbps, -104 dBm @ 10-6 BER
2、 Functional characteristics
Backward compatibility: Backward compatibility with ProSoft Technology’s RLX-IFH24E.
Intelligent switching technology: providing true point-to-point connection and achieving performance optimization.
Serial device support: provided through serial to serial tunneling or serial TCP/UDP encapsulation.
International unlicensed: Use the 2.4 GHz frequency that is internationally unlicensed.
Industrial grade design: Metal shell, industrial grade working temperature, good vibration and impact resistance.
Unique frequency hopping algorithm: Wi Fi scanner cannot detect, ensuring communication security.
Graphical network representation: Use graphics to represent the network during configuration and diagnosis.
Advanced diagnosis: including advanced diagnostic functions such as temperature and signal quality.
Software support: HMI can diagnose RF wireless networks through ControlScape software and OPC server.
