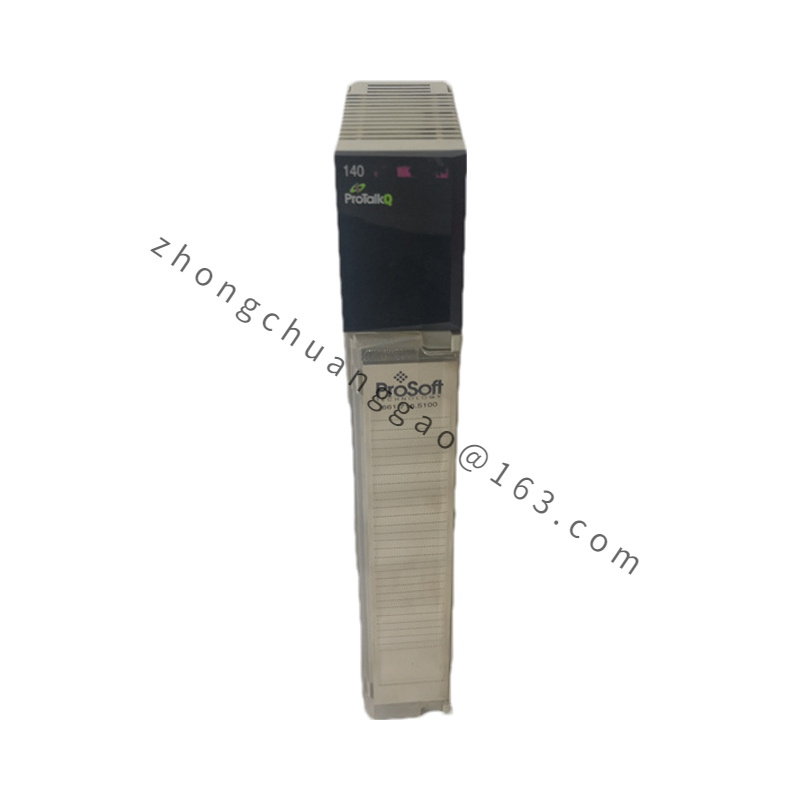

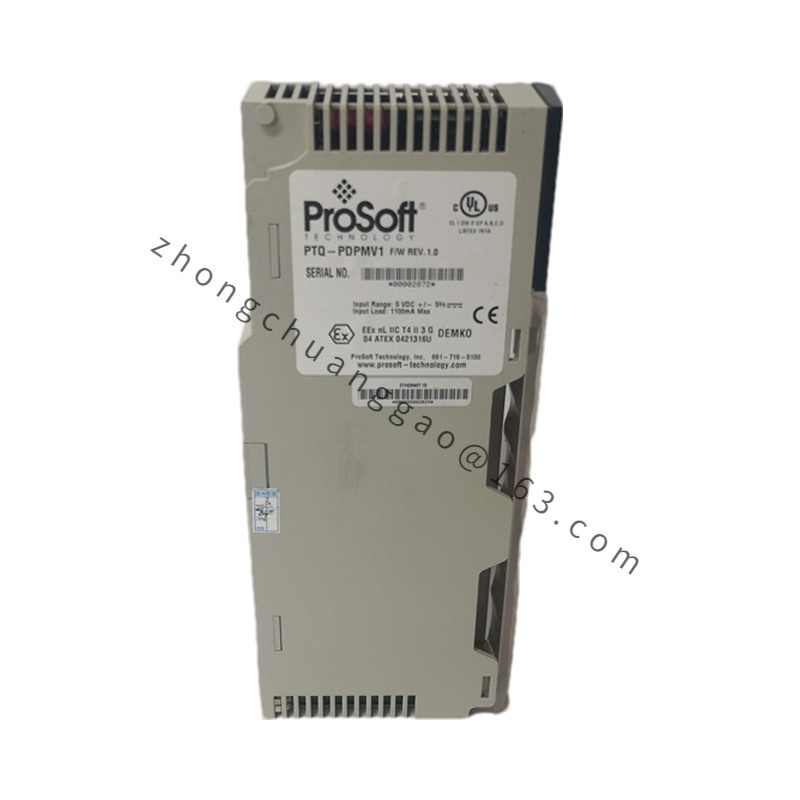

Prosoft PTQ-PDPMV1
Application Scenarios:
- Industrial Automation: Used to connect and integrate various devices in industrial automation systems, such as PLCs, sensors, and actuators
- Remote Monitoring and Control: Enables remote monitoring and control of industrial processes, improving operational efficiency and reducing downtime
- Data Acquisition and Management: Supports data acquisition from various devices and manages data transmission to central databases or other storage systems
- Energy Management: Utilized in energy industries for monitoring and managing energy equipment, enhancing energy efficiency and optimizing usage
- 过境点应用 *随着智能制造和智能城市应用程序的发展,PTQ-PdpMV1能够连接智能制造设备,促进智能制造和智能城市应用程序的通信和数据交换
Detailed content
技术规格 :
- 接口类型 *用于量子处理器的ProFIBUS主网络接口模块
- 相容性 :设计用于量子处理器,利用专用背板技术进行稳健数据交换
- 礼宾支助 *支持信息、通信和通信系统61158标准,以实现全面的主功能,使其能够与PROFIVUS数据交换系统V0/V1辅助装置进行通信
- 连接性 *以醚为基础的PTQ模块和PROFIBUS网络配置
- 处理器集成 ::建立在西门子ASICaspc2步骤E和英菲朗C165微处理器,符合统一HEC热备用功能规格
- 每个架的最大模块 :每个机架可支持最多6个ptqpdpmv1模块,最多可支持4个热备份实现
- 波特率 *支持所有标准波特率,最高可达12M比特/秒,并在所有有效的ProFIFUSDPV1率中采用波特率自动检测
- 诊断学 支持扩展诊断数据、报警指示和确认处理、组播和广播消息(DAV1)
- 记忆力 *配置储存在普罗塞模块内的非易失性存储器中的数据
- 工作温度 : 0°C to 60°C (32°F to 140°F)
- 储存温度 : -40°C to 85°C (-40°F to 185°F)
- 潮湿 : 5% to 95% RH (non-condensing)
功能特征 :
- 易于配置和管理 :包括用于设计、配置和监测PROFIBUS网络的Pro配置生成器(印刷电路板)软件
- FDT/DTM Integration: Offers PROFIBUS DPV1 Master FDT (Field Device Tool) communication DTM (Device Type Manager) software for seamless integration with compatible FDT containers and devices
- High-Performance Data Handling: Backplane-based high-speed data transmission ensures fast data update times
- Multi-Protocol Support: In addition to PROFIBUS, supports multiple communication interfaces such as Ethernet and serial ports for versatile integration
- Hot Standby Capability: Supports hot standby functionality for SE 140 671 CPU, ensuring seamless failover during system maintenance or failures
