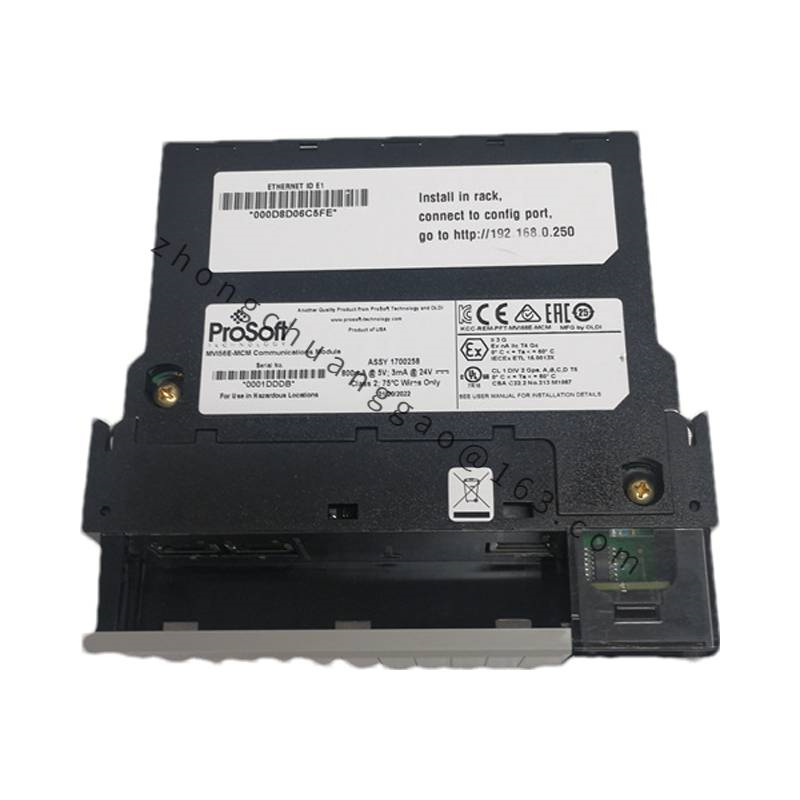

Technical Specifications:

• Compatibility: Compatible with Rockwell Automation’s ControlLogix® platform, allowing for easy integration into existing systems.
• Communication Protocols: Supports multiple communication protocols including Modbus TCP/IP, EtherNet/IP, DF1, and Modbus RTU/ASCII.

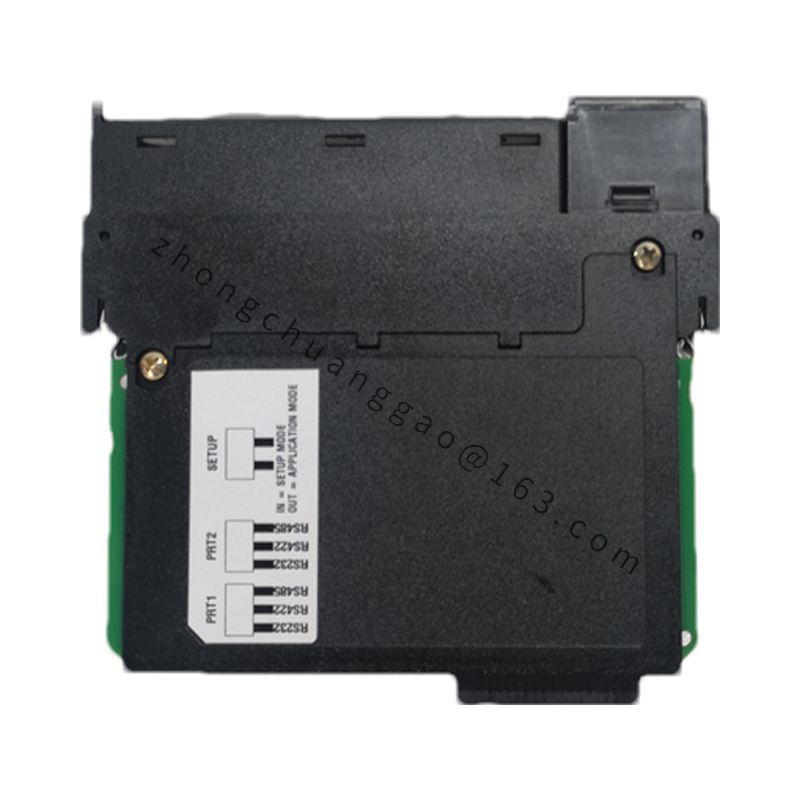

• Port Configuration: Offers two independently configurable serial ports that can operate on the same or different Modbus networks, supporting RS232, RS485, and RS422 electrical standards.
• Ethernet Port: Features a 10/100 MB Ethernet port for network configuration and diagnostics, with automatic cable crossover detection.
• Memory: Provides a user-definable module data memory mapping of up to 10,000 16-bit registers.

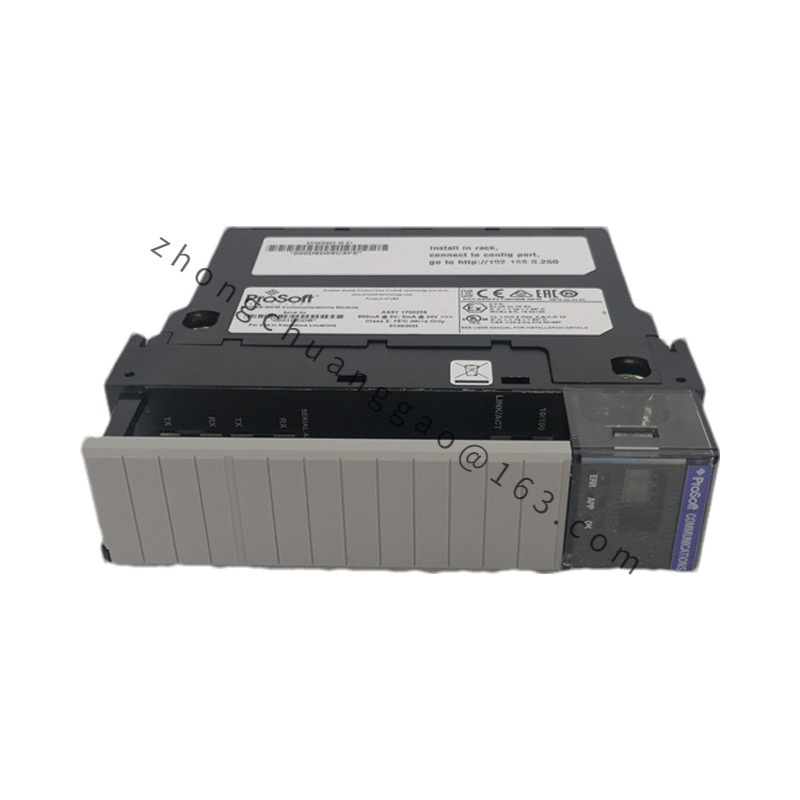

• Display: Equipped with a 4-character, scrolling, alphanumeric LED display for status and diagnostic data.

Functional Characteristics:

• High-Performance Communication: Offers high-speed and stable communication for various network topologies such as star, ring, and bus.
• Flexibility: Each port can be configured as a master or slave, providing maximum flexibility for users to adapt to different application requirements.
• Powerful Backplane Integration: Serves as an input/output module on the ControlLogix® backplane, displaying Modbus data as processor I/O data.
• Diagnostics and Configuration: Features a debug/configuration port via an RJ45 Ethernet port, simplifying diagnostics and configuration processes.
• Rugged Design: With a conformal coating, the MVI56E-MCM can withstand harsh or corrosive environments, ensuring reliable operation in extreme conditions.

Application Scenarios:

• Industrial Automation: Used in industrial automation systems for data exchange and communication between controllers, PLCs, HMIs, and other automation devices.
• Data Acquisition and Monitoring: Connects sensors, instruments, and other devices to collect field data and transmit it to central control systems or monitoring platforms.
• Remote Control: Suitable for remote control systems, enabling remote access and operation of devices or sites.
• Water and Power Industries: Monitors and controls equipment in water treatment and power generation facilities, such as pumps, valves, and generators.
• Oil and Gas Industry: Connects telemetry equipment and monitoring devices in oil and gas exploration and production environments.
• Transportation: Utilized in traffic signal control systems and rail transportation equipment for signal and system monitoring.
• Manufacturing: Connects various types of production equipment for data exchange and integration in manufacturing lines.
