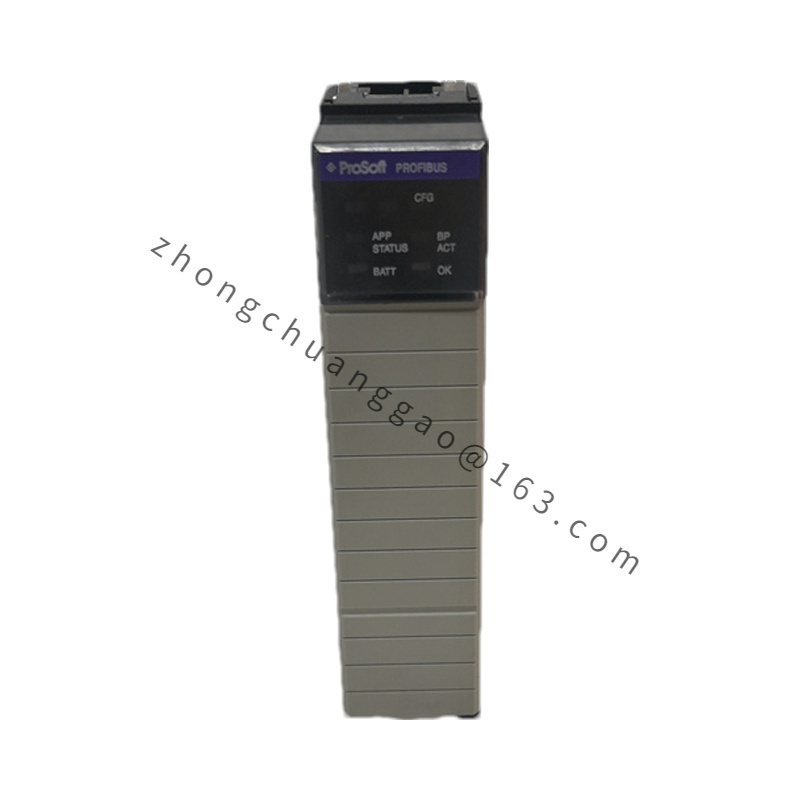

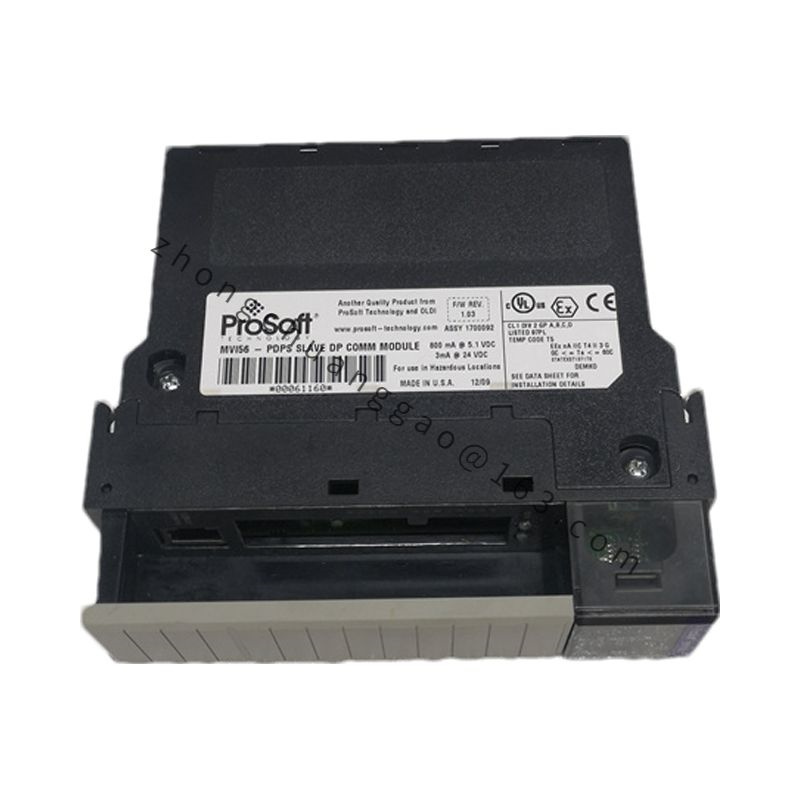

Prosoft MVI56-PDPS

Application Scenarios:

  • Industrial Automation: Used in automation control systems to integrate PLCs with Modbus devices, PROFIBUS DP networks, and other industrial communication networks.
  • Data Acquisition and Processing: Enables data acquisition from external devices, including analog and digital signals, and processes the data to meet system requirements.
  • Monitoring and Control: Provides monitoring and control capabilities for industrial processes, ensuring efficient and reliable operation.
WhatApp
WeChat

Detailed content

Technical Specifications (Typical, Subject to Change):

  • Manufacturer: ProSoft Technology
  • Compatibility: Designed for seamless integration with Rockwell Automation’s ControlLogix control systems.
  • Communication Protocols:
    • Supports Modbus TCP/IP and Modbus RTU/ASCII for Modbus-compatible devices.
    • May also support PROFIBUS DP, DeviceNet, and other industrial communication protocols.
  • Data Rates: Up to 12 Mbps for PROFIBUS DP, varies based on the communication protocol in use.
  • Interface: Provides RS-485 interface for PROFIBUS DP, and possibly other interfaces for other protocols.
  • Maximum Devices Supported: Supports up to 125 slave devices for PROFIBUS DP networks.

Functional Characteristics:

  • Protocol Conversion: Enables data conversion and adaptation between different communication protocols, facilitating interoperability between devices.
  • Data Exchange: Offers robust data exchange capabilities for fast and reliable data transmission between ControlLogix PLCs and various devices.
  • Real-Time Monitoring: Supports real-time monitoring of communication status and data transmission, facilitating troubleshooting and system maintenance.
  • Remote Access: Enables remote access to connected devices via network, allowing for remote monitoring, configuration, and control.
  • Modular Design: Facilitates easy installation, maintenance, and upgrades, with flexible configuration options to meet specific application requirements.
  • Industrial-Grade Design: Suitable for use in various industrial environments, resisting vibration, temperature fluctuations, and other harsh conditions.
