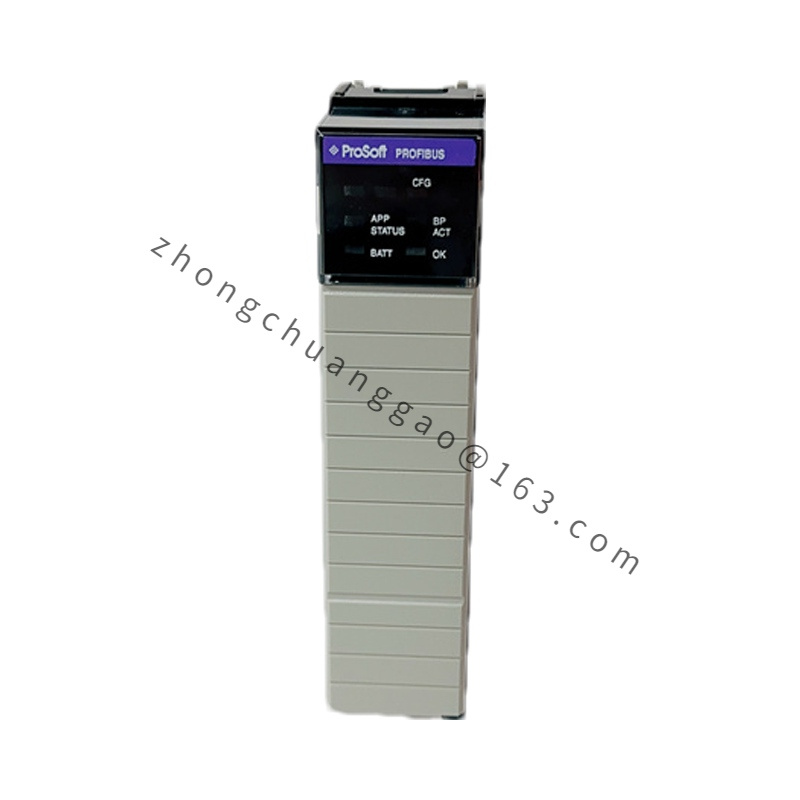

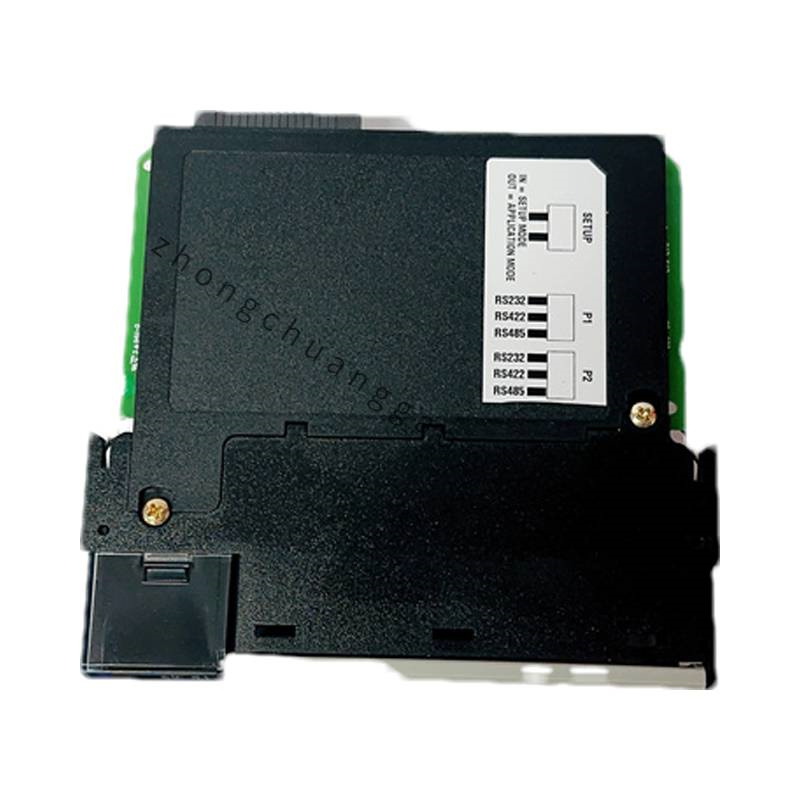

Prosoft MVI56-PDPS
The Prosoft MVI56-PDPS is a PROFIBUS DP Slave Communication Module designed to allow ControlLogix processors to interface with PROFIBUS DP Master devices. This module supports PROFIBUS V0 Slave protocol, offering efficient and high-speed data transfer capabilities between the ControlLogix processors and the PROFIBUS network.
Detailed content
Key Features:
- Communication Protocol: PROFIBUS DP Slave, allowing seamless integration with ControlLogix I/O processors.
- User-configurable data mapping: This allows users to define how data is mapped between the PROFIBUS master and the ControlLogix processor.
- Data Capacity: The module can handle up to 122 words of Input and Output data, with a total data limit of 200 words for both input and output combined.
- Configuration Port: A serial port is provided for configuration, status monitoring, and debugging. The configuration file can be created on a PC and downloaded to the module using the provided serial cable.
- Application: Primarily used in industrial automation for interfacing ControlLogix systems with PROFIBUS DP networks, which is common in industries such as manufacturing, energy, and utilities.
This module is particularly useful in process automation and factory control, where seamless communication between different industrial devices is essential.
