Extended Product Type:2-channel isolated barrier

Product ID:KCD2-SR-EX2

P+F Type Designation:Switch

Supply Voltage:24 V DC

Inputs:[“Dry contact”,”NAMUR”]

Output Type:Relay contact

Line Fault Detection (LFD):Enabled

Housing Width:12.5 mm

Safety Compliance:Up to SIL 2 according to IEC 61508

Signal Type:Digital Input

Rated Voltage:19 … 30 V DC

Power Consumption:<= 600 mW

Connection:[“Power Rail”,”Terminals”]

Mass:~100 g

Mounting:On 35 mm DIN mounting rail according to EN 60715:2001

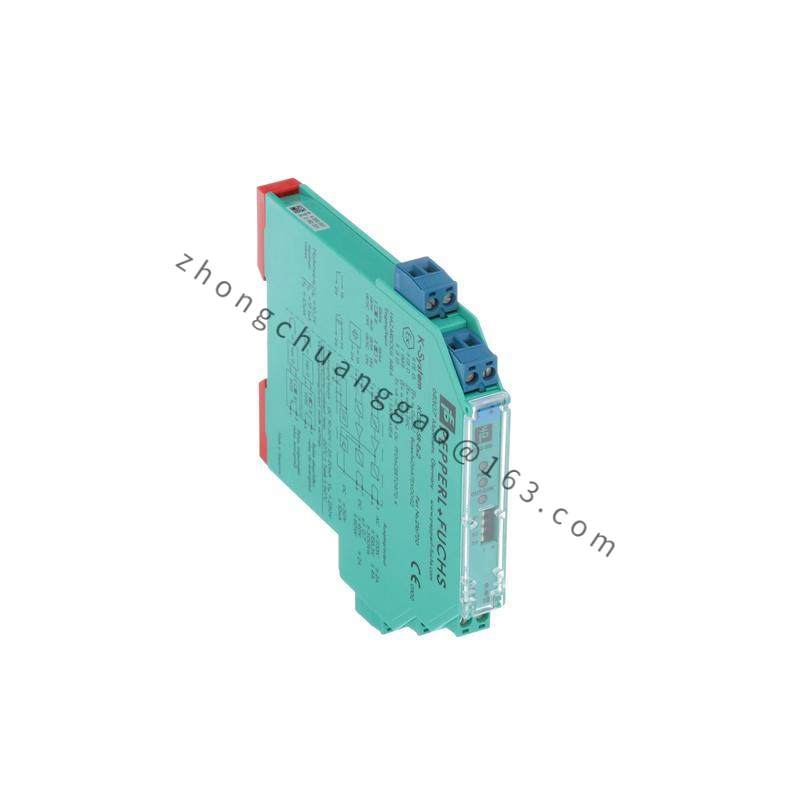

    The P+F KCD2-SR-EX2 Switch Amplifier is engineered to deliver unparalleled performance in demanding industrial settings. Its robust design ensures reliable operation and longevity, making it an ideal choice for applications requiring precise control and safety compliance.

    With its 2-channel isolated barrier and 24 V DC power supply, this amplifier offers enhanced protection against electrical disturbances and ensures consistent signal transmission. The flexibility of dry contact or NAMUR inputs caters to a wide range of sensor compatibility.

    Equipped with line fault detection (LFD), the KCD2-SR-EX2 continuously monitors the system for any potential issues, ensuring uninterrupted operation and immediate alerts when necessary. The relay contact output provides a secure and efficient means of controlling actuators or relays.

    Designed for safety integrity levels up to SIL 2, this switch amplifier adheres to the stringent standards set by IEC 61508 and IEC 61511, guaranteeing its suitability for high-risk applications. The digital input capability allows for precise data processing and integration with various control systems.

    Weighing approximately 100 grams and featuring a compact housing width of 12.5 mm, the P+F KCD2-SR-EX2 is lightweight and space-efficient, making it easy to integrate into existing machinery without compromising on functionality. The screw terminal connections facilitate simple installation and maintenance, further enhancing its practicality.
