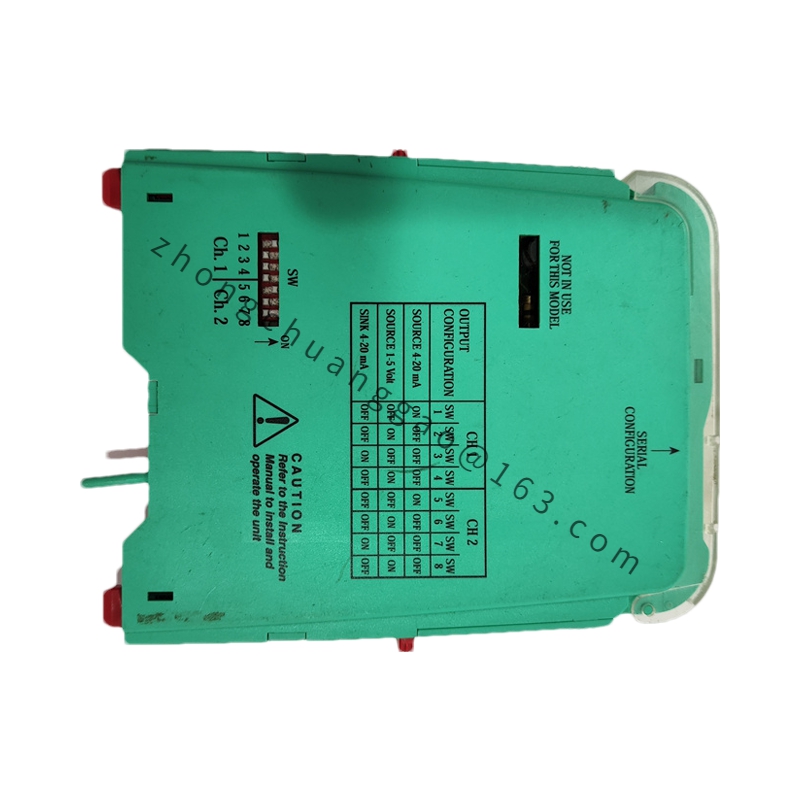

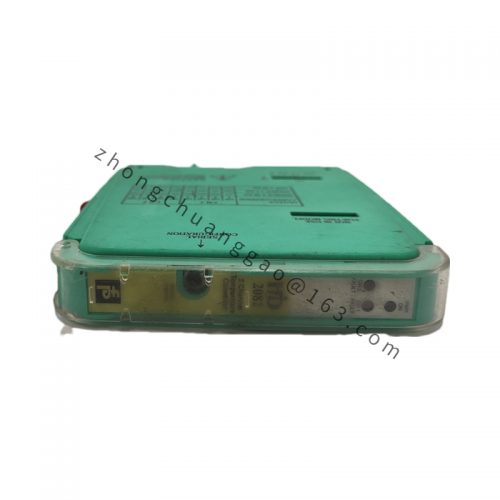

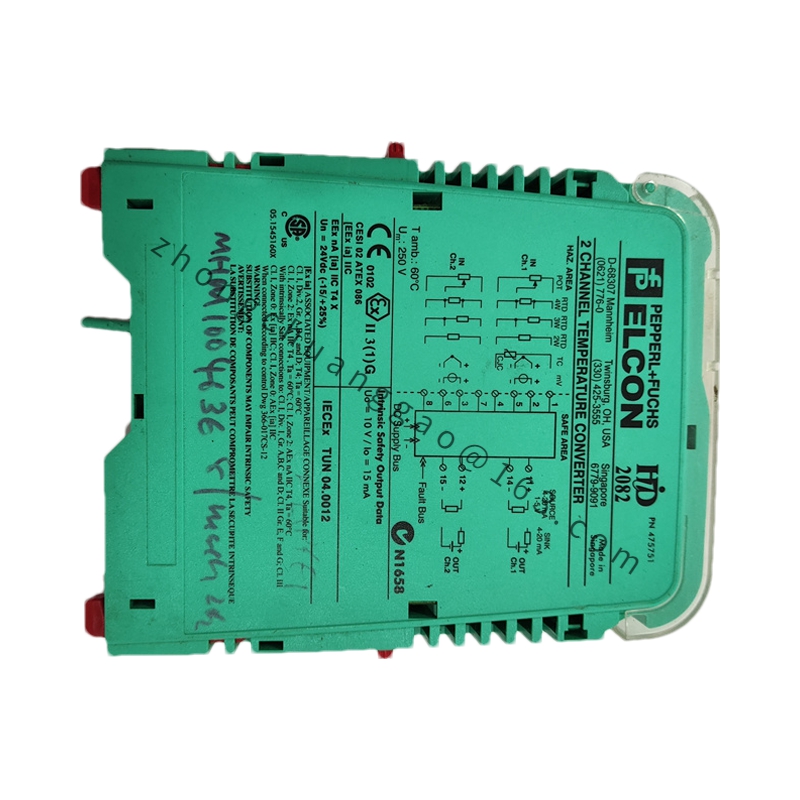

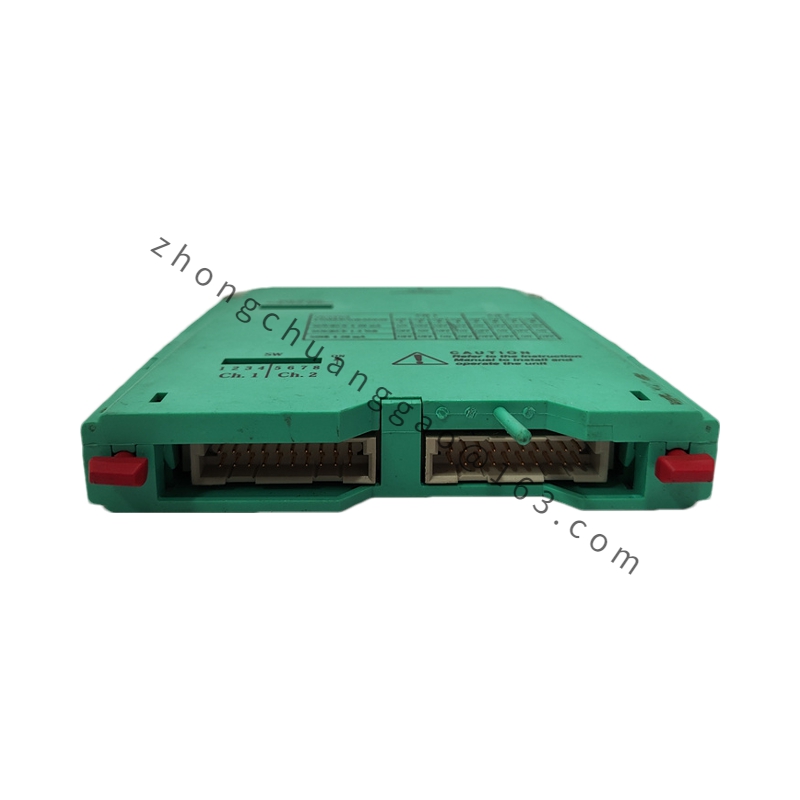

PEPPERL+FUCHS HiD2082
PEPPERL+FUCHS HiD2082
It is a temperature signal regulator module, and the following is detailed information about it:
technical specifications
Working environment temperature: can work in environments ranging from -4 to 140 degrees Fahrenheit (-20 to 60 degrees Celsius).
Power requirement: 24V DC power supply (bus powered).
Output signal: Linearized output, ranging from 4 mA to 20 mA, or 1 V to 5 V.
Isolation function: Provides 2-channel isolation barriers to reduce signal interference.
Functional characteristics
Dual channel isolation: HiD2082 has two independent channels, each capable of processing temperature signals and supporting simultaneous monitoring or control of two different temperature points.
Signal isolation and conversion: Provides electrical isolation of input signals to reduce interference. At the same time, thermal resistance (RTD) or thermocouple (TC) signals can be converted into standard current or voltage signals, such as 4-20mA or 0-10V, for subsequent signal processing and long-distance transmission.
High precision measurement: Ensure the accuracy of temperature measurement, suitable for industrial applications that require high-precision temperature control.
Flexible configuration: supports multiple types of temperature sensors, and users can choose the appropriate sensor type for configuration according to their actual needs.
Diagnostic function: Integrated with diagnostic function, it can detect open circuits, short circuits, or line faults, which helps with preventive maintenance.
Easy to install and maintain: Designed for quick installation and replacement, reducing system downtime. The optional fault monitoring terminal board simplifies the operation and maintenance process.
Wide power supply voltage range: Suitable for different on-site power supply conditions.
Application scenarios
The PEPPERL+FUCHS HiD2082 temperature signal regulator module is widely used in industrial fields that require high-precision temperature monitoring and control, including but not limited to automation control systems, environmental monitoring systems, temperature testing and calibration equipment, etc.
Detailed content
Precautions for use
Before use, please confirm that the sensor type used is compatible with the HiD2082 module and set the input type of the channel correctly.
Ensure stable and clean power supply to avoid voltage fluctuations affecting module performance.
Follow the correct grounding principle to ensure that the outer shell and internal circuits of the module are well grounded to avoid interference.
Installed in a non corrosive gas, suitable temperature and humidity environment, avoiding direct exposure to sunlight or extreme weather.
Use high-quality shielded signal wires and properly route them to reduce electromagnetic interference.
Perform regular inspections and cleaning to ensure that the modules are working properly and extend their lifespan.
The PEPPERL+FUCHS HiD2082 temperature signal regulator module plays an important role in industrial automation and temperature control due to its high precision, flexible configuration, easy installation and maintenance. Following the usage precautions can ensure its stable and reliable operation.
