NI SCXI-1160

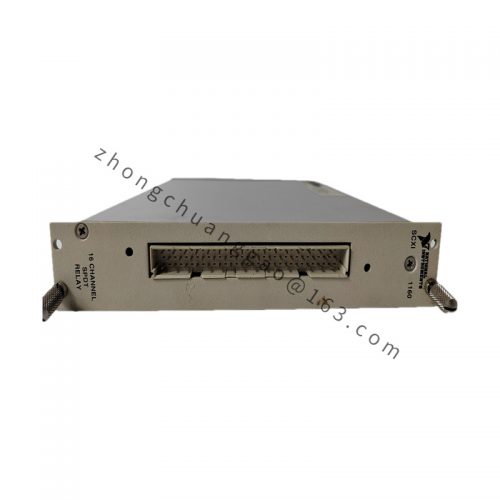

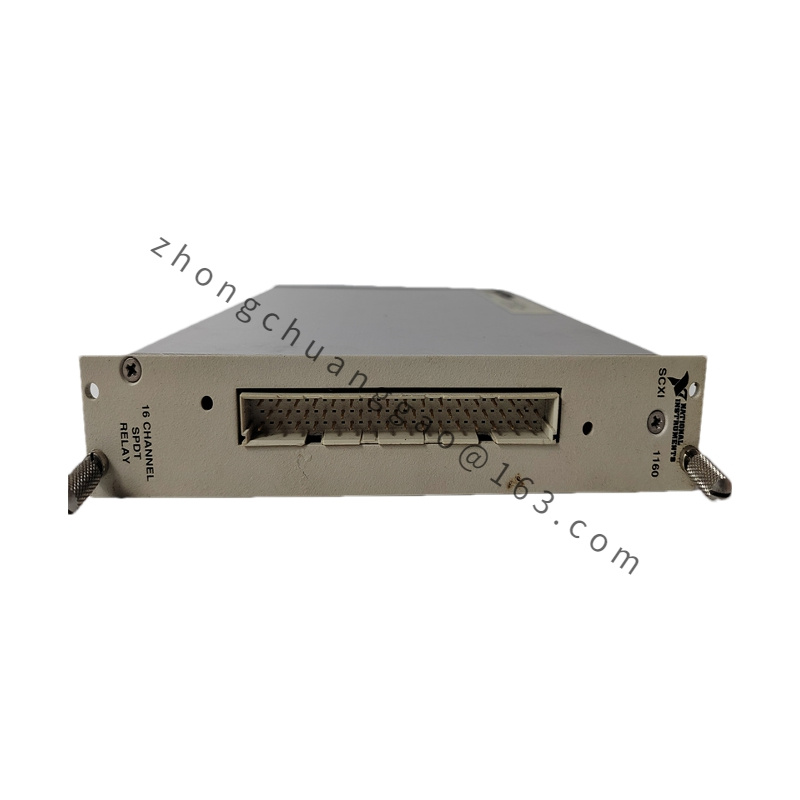

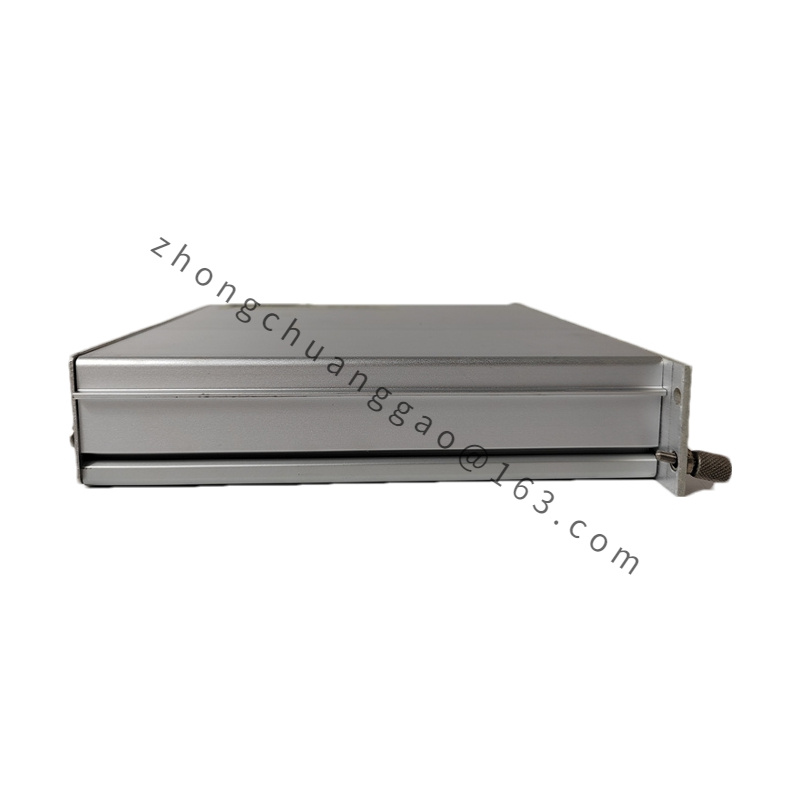

The NI SCXI-1160 is a 16-channel, general-purpose relay switch module used within the SCXI (Signal Conditioning eXtensions for Instrumentation) system. This module is designed to switch up to 16 different signals, with each relay capable of handling 30 W power and 2 A current, making it ideal for applications requiring high-density signal routing.
Detailed content
Key Specifications:
- Number of Channels: 16
- Relay Type: SPDT (Single Pole Double Throw) electromechanical relays
- Switching Capacity: Up to 30 W (at 2 A, 30 VDC or 60 VAC)
- Actuation Time: Typically 3 ms
- Contact Life: Approximately 1 million cycles (no load), reducing with higher loads
Functional Features:
- Isolation: Provides isolation between channels and from the system, ensuring that signals are securely switched without interference.
- Relay Control: Individual relays can be controlled programmatically through compatible software like LabVIEW, or manually via test setups.
- Versatile Application: Suitable for a variety of applications including automated testing, signal switching, and routing in complex test systems.
Applications:
The SCXI-1160 is typically used in automated test equipment (ATE) for manufacturing and product validation, where high-channel count signal routing is required. It is also used in laboratory environments for data acquisition systems that need to switch between multiple inputs or outputs efficiently.
This module is often integrated into larger systems where it works alongside other SCXI modules to perform a range of signal conditioning and routing tasks, especially in environments where high reliability and precise control are critical.
