NI SCXI-1000

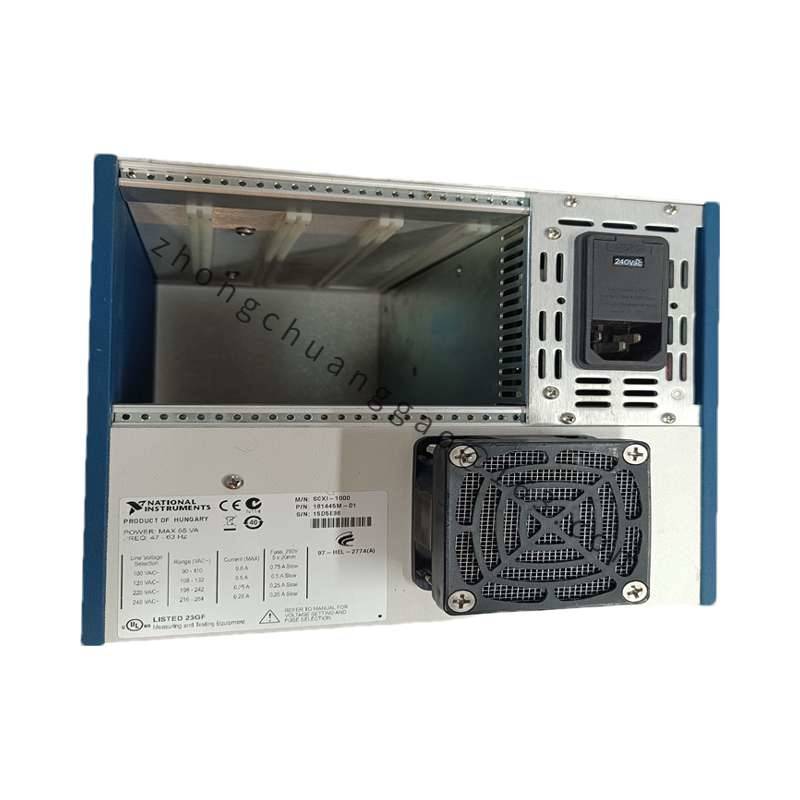

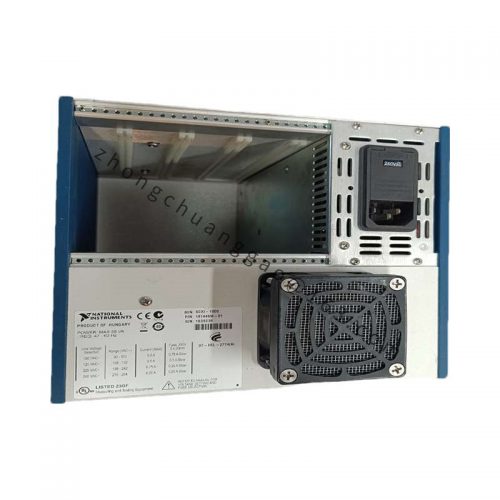

Product Overview: The NI SCXI-1000 is a modular signal conditioning chassis designed to work with the SCXI (Signal Conditioning eXtensions for Instrumentation) series of modules. It provides a flexible and expandable platform for signal conditioning, data acquisition, and control applications.
Detailed content
Technical Specifications:
- Chassis Type: 8-slot (1U high)
- Dimensions: 44.5 cm x 24.1 cm x 13.5 cm (17.5 in x 9.5 in x 5.3 in)
- Weight: Approximately 3.7 kg (8.2 lbs)
- Power Supply:
- 110-220 VAC, 50/60 Hz
- Internal power supply providing +5V, ±15V to the modules
- Cooling: Passive cooling with vented chassis
- Connectors:
- Front panel connectors for external signal connections
- Rear panel connectors for internal module connections
Features:
- Modular Design: Accommodates up to 8 SCXI modules, allowing for a wide range of signal conditioning options.
- Flexibility: Supports various types of signal conditioning including analog, digital, and temperature measurements.
- Scalability: Easily expandable by adding additional SCXI chassis and modules.
- Ease of Use: Integrates with National Instruments data acquisition systems and software for straightforward configuration and data management.
- Rugged Design: Designed to operate in industrial environments with high reliability.
Applications:
- Industrial automation and control systems
- Laboratory experiments and data acquisition
- Test and measurement setups
- Environmental monitoring
- Research and development projects
