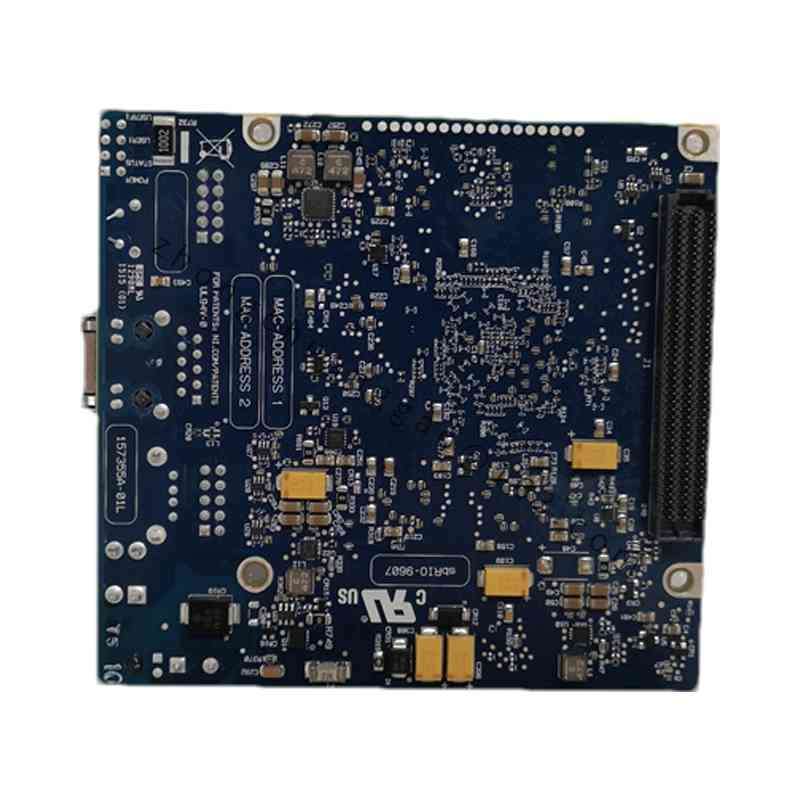

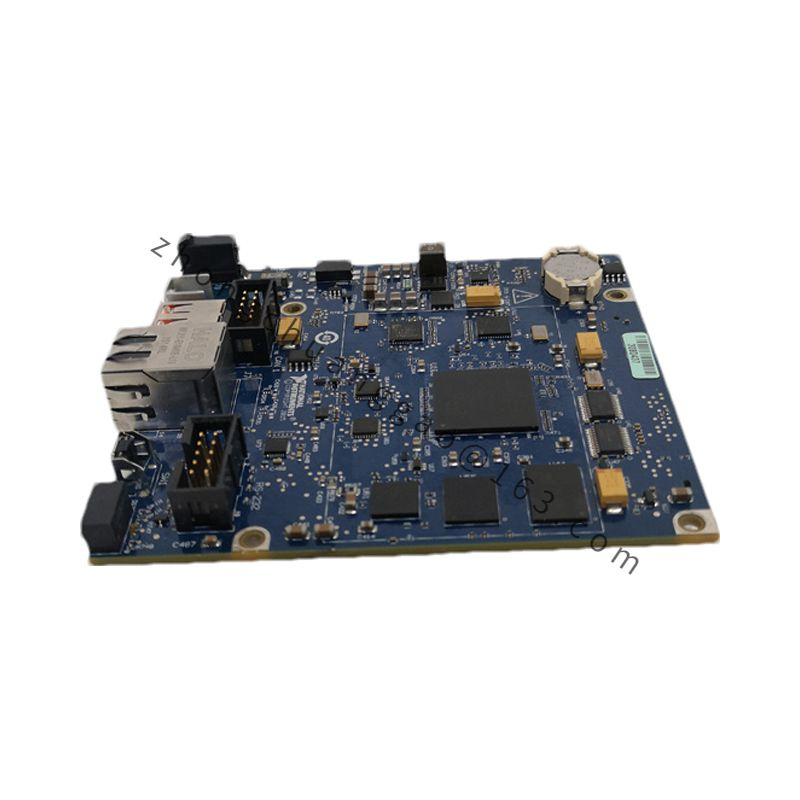

NI SBRIO-9607
Product Overview: The NI sbRIO-9607 is a powerful, compact, and versatile real-time embedded system designed for industrial and academic applications. It combines the functionality of a real-time controller with a field-programmable gate array (FPGA) to provide high-performance and flexible control solutions.
Detailed content
Technical Specifications:
- Processor: ARM Cortex-A9 dual-core processor
- FPGA: Xilinx Spartan-6 LX45
- Memory:
- 1 GB DDR3 SDRAM
- 16 MB NOR Flash
- I/O Modules:
- Up to 60 digital I/O channels
- 8 analog input channels (16-bit resolution)
- 4 analog output channels (16-bit resolution)
- 4 counter/timers
- Communication Interfaces:
- 2 Ethernet ports (10/100/1000 Mbps)
- 1 RS-232 serial port
- 1 USB 2.0 host port
- Power Supply: 9-30 VDC
- Operating Temperature: 0-55°C
- Dimensions: 198 mm x 122 mm x 45 mm
Features:
- Real-time operating system with deterministic performance
- FPGA programmable for custom hardware acceleration
- Integrated I/O modules for easy connectivity and scalability
- Compact and rugged design suitable for harsh environments
- Extensive software support with NI LabVIEW and other programming environments
Applications:
- Industrial automation and control systems
- Research and development for academic projects
- Data acquisition and signal processing
- Test and measurement systems
- Robotics and embedded control systems
