Technical Specifications

• Channels:
  • 2 channels per module
• Bandwidth:
  • Analog Bandwidth: 500 MHz
• Sampling Rate:
  • Up to 2.5 GS/s (gigasamples per second) per channel
• Vertical Resolution:
  • 8 bits
• Vertical Range:
  • Voltage Range: ±1 V to ±10 V (full-scale)
• Input Coupling:
  • AC and DC coupling options
• Input Impedance:
  • 50 Ω or 1 MΩ (selectable)
• Memory Depth:
  • Up to 256 MB (mega samples) per channel
• Triggering:
  • Advanced triggering capabilities including edge, pulse width, and other complex trigger conditions
• Timebase:
  • Adjustable timebase with fine resolution for accurate timing control
• Connectivity:
  • PXIe interface for seamless integration with other PXIe instruments

Functional Features

• High-Speed Sampling:
  • Provides high-speed sampling rates up to 2.5 GS/s per channel, allowing for detailed capture and analysis of fast and transient signals.
• High Bandwidth:

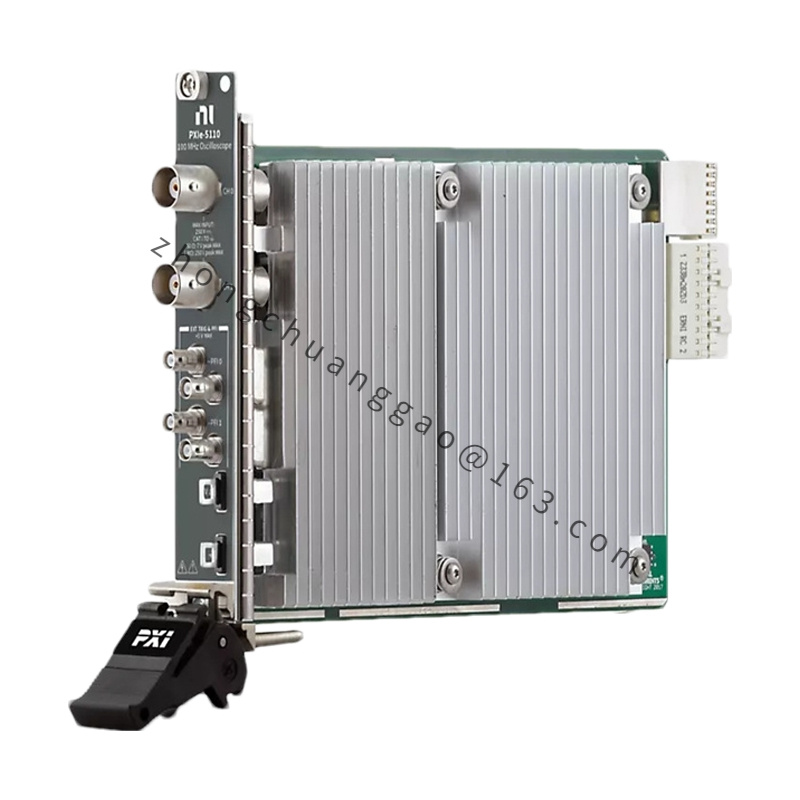

  • With a 500 MHz analog bandwidth, the PXIe-5110 can accurately measure and analyze high-frequency signals, making it suitable for complex signal testing.
• Deep Memory:
  • Features up to 256 MB of memory per channel, which facilitates extensive data capture and in-depth signal analysis over long periods or at high sample rates.
• Advanced Triggering:
  • Includes sophisticated triggering options to isolate specific signal events, which is essential for precise data capture and analysis.
• Versatile Input Coupling:
  • Provides both AC and DC coupling options to handle a wide range of signal types and measurement needs.
• Software Integration:
  • Fully compatible with NI LabVIEW and other NI software platforms, enabling efficient programming, control, and analysis of measurement data.

Application Scenarios

• High-Speed Signal Acquisition:
  • Ideal for capturing and analyzing high-speed and high-frequency signals in applications such as communications, electronics, and semiconductor testing.
• Automated Test Systems:
  • Suitable for integration into automated test systems where high-speed, precise signal acquisition is required for production, research, and development.
• Debugging and Validation:
  • Useful for debugging and validating electronic designs by capturing transient events and signal anomalies with high accuracy.
• Research and Development:
  • Employed in R&D environments for testing and analyzing high-speed signals, helping to develop and validate new technologies and designs.
• Signal Integrity Testing:
  • Valuable for assessing and ensuring the integrity of high-speed signal transmissions and electronic systems.
• Complex Signal Analysis:
  • Beneficial in scenarios requiring advanced signal analysis capabilities, including detailed timing and amplitude measurements.
