Technical Specifications

• Channels:
  • 16 channels per module
• Input Types:
  • Voltage: ±60 V (differential or single-ended)
  • Current: ±1 A (with external shunt resistor)
• Resolution:
  • 24-bit resolution for voltage measurements
• Accuracy:
  • Voltage Measurement Accuracy: ±0.02% of reading ±1.0 mV
  • Current Measurement Accuracy: Depends on the external shunt resistor accuracy
• Sampling Rate:
  • Up to 250 kS/s per channel
• Input Range:
  • Voltage Input Range: ±60 V
  • Current Input Range: ±1 A (requires external shunt resistor)
• Input Impedance:
  • Voltage: 10 MΩ
  • Current: Defined by external shunt resistor
• Crosstalk:
  • Low crosstalk to ensure accurate simultaneous measurements
• Isolation:
  • Provides isolation between channels and between the module and system ground to prevent interference and ensure measurement accuracy
• Connectivity:
  • PXIe interface for integration into PXIe systems

Functional Features

• High Precision Measurements:

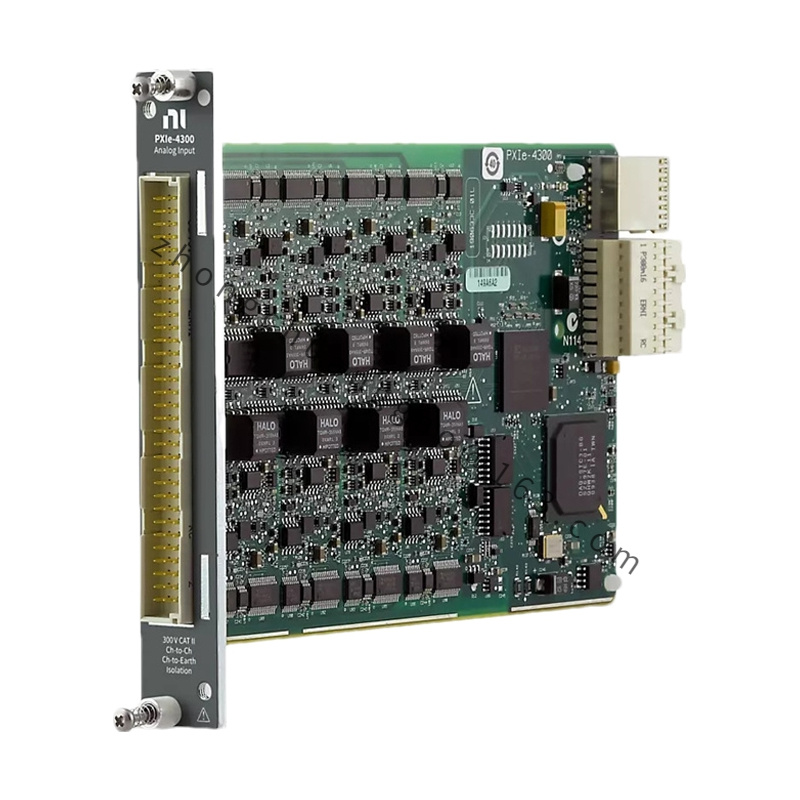

  • The PXIe-4300 provides high-resolution voltage and current measurements with excellent accuracy, making it suitable for detailed and precise data acquisition tasks.
• Flexible Input Configurations:
  • Supports both differential and single-ended voltage measurements, and current measurements with external shunt resistors, offering flexibility for different measurement needs.
• High-Speed Data Acquisition:
  • Capable of high-speed data acquisition with a sampling rate of up to 250 kS/s per channel, enabling efficient capture of dynamic signals.
• Channel Isolation:
  • Features isolation between channels and between the module and system ground to minimize noise and interference, ensuring accurate measurements.
• Software Integration:
  • Compatible with NI LabVIEW and other NI software platforms, providing a comprehensive environment for programming, control, and data analysis.
• Versatile Applications:
  • Designed to handle a variety of measurement tasks, from simple voltage measurements to complex data acquisition setups involving multiple channels and input types.

Application Scenarios

• Automated Test Systems:
  • Commonly used in automated test systems for production and research applications, providing precise measurement capabilities and easy integration with test automation systems.
• Environmental Testing:
  • Suitable for environmental testing applications where precise measurement of voltage and current over a range of conditions is required.
• Electronics Testing:
  • Ideal for testing electronic components and systems, including power supplies, batteries, and other devices where high-accuracy measurements are essential.
• Sensor Measurement:
  • Used for accurate sensor measurements, including temperature sensors, pressure sensors, and other types of transducers that output voltage or current signals.
• Research and Development:
  • Valuable for R&D applications where detailed and accurate data acquisition is necessary for analyzing and validating new designs or technologies.
• Signal Monitoring:
  • Employed in applications that require continuous monitoring of electrical signals to detect and analyze transient events or changes in performance.
