Technical Specifications:

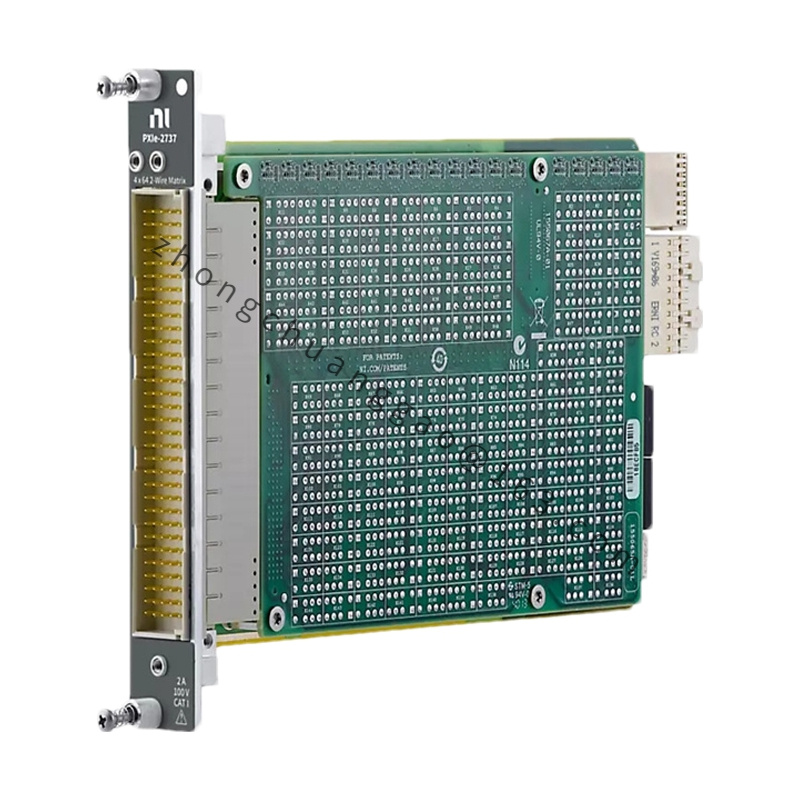

• Module Type: PXIe Relay Module
• Number of Channels:
  • Channels: 64 (16 x 4 matrix)
• Relay Types:
  • Relay Type: Electromechanical relays
  • Configuration: Matrix relay switch with 16 rows and 4 columns
• Switching Characteristics:
  • Switching Configuration: Crosspoint matrix
  • Switching Speed: Typically < 1 ms
  • Insulation Resistance: >10^9 ohms at 500 VDC
  • Maximum Switching Voltage: 30 VDC
  • Maximum Switching Current: 1 A
• Signal Characteristics:
  • Bandwidth: DC to 100 MHz
  • Insertion Loss: Typically < 0.5 dB at 100 MHz
  • Return Loss: Typically > 15 dB at 100 MHz
• Power Requirements:
  • Voltage: +3.3 V and +12 V from PXIe backplane
• Physical Dimensions:
  • Size: Standard 3U PXIe form factor
• Operating Temperature:
  • Temperature Range: 0°C to 55°C (32°F to 131°F)
• Storage Temperature:
  • Storage Range: -40°C to 70°C (-40°F to 158°F)
• Relative Humidity:
  • Humidity Range: 10% to 90% non-condensing

Functional Features:

• High-Density Switching: Provides 64 channels in a compact 3U PXIe form factor, enabling high-density switching for efficient signal routing.
• High-Speed Performance: Handles signals up to 100 MHz with low insertion loss and reasonable return loss, making it suitable for various high-speed applications.
• Matrix Switching: Features a 16 x 4 matrix configuration, allowing flexible and efficient switching of multiple signal paths.
• Precision Switching: Delivers reliable and precise switching with high insulation resistance, minimizing signal degradation and crosstalk.
• Versatility: Designed to accommodate a range of signal types and frequencies, providing flexibility for different test and measurement requirements.

Application Scenarios:

• Automated Test Systems: Ideal for automated test systems requiring high-density and high-speed signal switching.
• Signal Routing: Effective for managing and routing signals in various testing environments, including research and development, and production.
• Communication Systems: Useful for routing signals between components in communication systems and managing complex signal paths.
• Measurement Systems: Suitable for measurement systems needing precise and reliable signal routing.

Additional Considerations:

• Driver and Software Support: Compatible with National Instruments’ software and drivers, including NI LabVIEW and NI MAX, for seamless integration and control.
• Configuration and Control: Provides software tools for configuring and controlling relay switching, enabling automated test sequences and precise management of signal paths.
