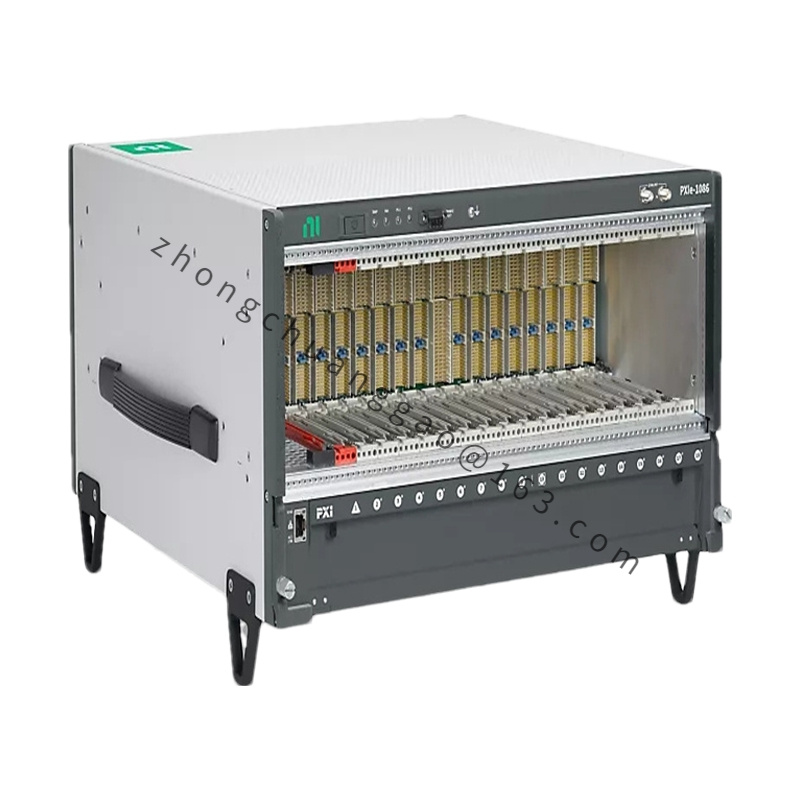

Technical Specifications:

• Chassis Type:
  • Form Factor: PXIe (PXI Express)
• Slots:
  • Number of Slots: 18
  • Slot Types:
    • 14 PXIe slots
    • 4 PXI slots
  • Backplane: Supports both PXIe and PXI modules, providing flexibility for various system configurations.
• Power Supply:
  • Type: Internal power supply
  • Voltage: Provides all necessary power rails for PXIe modules
  • Cooling: Includes internal cooling fans to ensure proper ventilation and thermal management
• Cooling:
  • Type: Internal fan cooling system with optimized airflow for effective heat dissipation.
• Operating Temperature:
  • Temperature Range: 0°C to 55°C (32°F to 131°F)
• Storage Temperature:
  • Storage Range: -40°C to 70°C (-40°F to 158°F)
• Relative Humidity:
  • Humidity Range: 10% to 90% non-condensing
• Dimensions:
  • Size: 8U height, allowing for a compact yet high-density configuration.
• Weight:
  • Weight: Approximately 24 kg (52.9 lbs)

Functional Features:

• High-Speed Data Transfer: Supports high-speed PXIe data transfer rates, making it suitable for applications that require rapid data acquisition, processing, and analysis.
• Versatile Slot Configuration: Provides a combination of PXIe and PXI slots, allowing for flexible integration of various modules to meet different test and measurement needs.
• Compact and Rugged Design: The 8U form factor provides a balance between high density and robustness, ensuring reliability and efficiency in both lab and field environments.
• Advanced Cooling System: Equipped with an advanced internal cooling system to maintain optimal operating temperatures and ensure long-term reliability of the system.
• Power Management: Features an internal power supply with built-in protection to deliver stable and reliable power to all connected modules.

Application Scenarios:

• Automated Test Systems: Ideal for high-performance automated test systems in industries such as electronics, telecommunications, automotive, aerospace, and defense.
• Research and Development: Suitable for R&D environments where high-speed and high-throughput data acquisition and processing are critical.
• Production Test: Well-suited for production test environments where reliability, performance, and scalability are essential.
• Complex Test Systems: The high slot count and versatile configuration make it ideal for building complex and scalable test systems that require high density and flexibility.

Additional Considerations:

• Driver and Software Support: Fully compatible with National Instruments’ software and drivers, including NI LabVIEW, NI MAX, and others, for seamless integration and configuration of PXIe modules.
• Integration and Expansion: Facilitates integration with a wide range of PXIe and PXI modules, offering a scalable and adaptable platform for developing sophisticated test systems.
