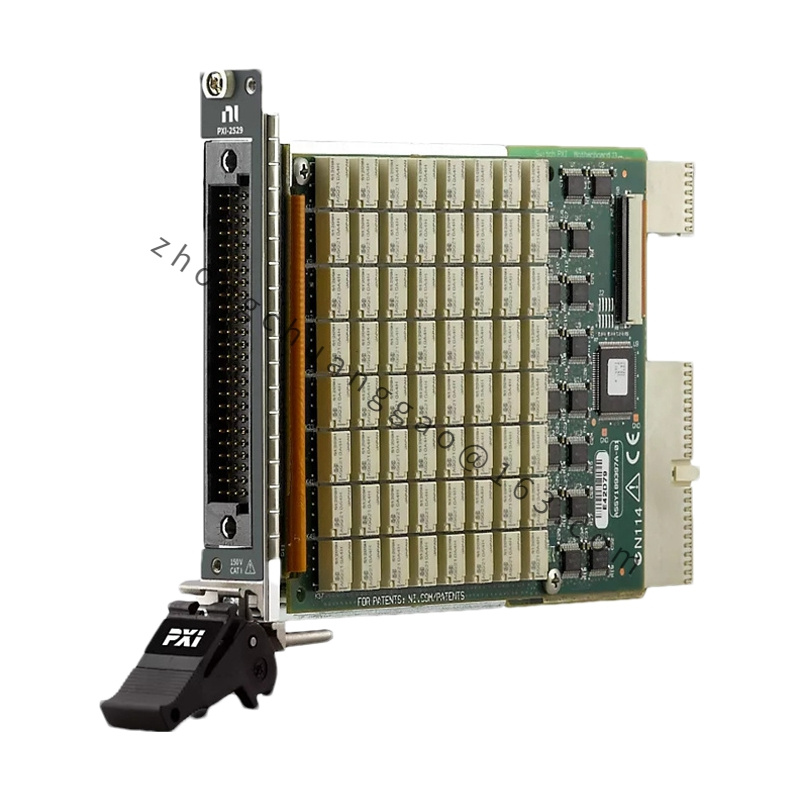

Technical Specifications:

• Switch Type: Matrix Switch
• Form Factor: PXI (PCI eXtensions for Instrumentation)
• Channel Count: 32 x 32 (cross-point matrix switch)
• Switch Type: Electromechanical
• Maximum Switching Voltage: 30 V
• Maximum Switching Current: 1 A
• Maximum Switching Power: 30 W
• Contact Resistance: < 0.1 Ω
• Insulation Resistance: > 10^9 Ω
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -40°C to 70°C
• Relative Humidity: 10% to 90% non-condensing

Functional Features:

• High-Density Matrix Switching: Provides a 32 x 32 matrix configuration, allowing for extensive and flexible signal routing and switching within a single module.
• High-Current Capability: Supports up to 1 A per channel, making it suitable for various high-current applications.
• Low Contact Resistance: Ensures minimal signal loss and high accuracy in measurements, which is crucial for precision testing.
• Electromechanical Relays: Utilizes reliable electromechanical relays for switching, offering dependable performance across different applications.
• High Power Handling: Capable of handling up to 30 W of power, suitable for a range of testing and measurement scenarios.

Application Scenarios:

• Automated Test Systems: Ideal for complex automated test setups where high-density and flexible switching are required to manage multiple signals and connections.
• System Simulation: Useful for creating and managing various circuit configurations and system states during R&D and prototyping.
• Signal Routing: Efficiently routes signals between multiple components or instruments, enhancing the versatility of test setups.
• Measurement and Control: Facilitates the management and switching of numerous test signals, supporting a wide range of measurement and control applications.

Additional Considerations:

• Driver and Software Support: Requires appropriate National Instruments drivers and software, such as NI LabVIEW or NI TestStand, for configuration and control. Ensure that the module is compatible with your PXI system’s software environment.
• Integration and Control: Can be integrated with National Instruments’ software tools for effective setup and operation, providing flexibility for complex testing needs.
