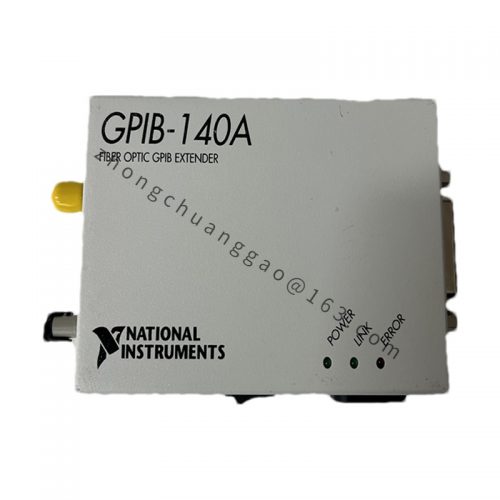

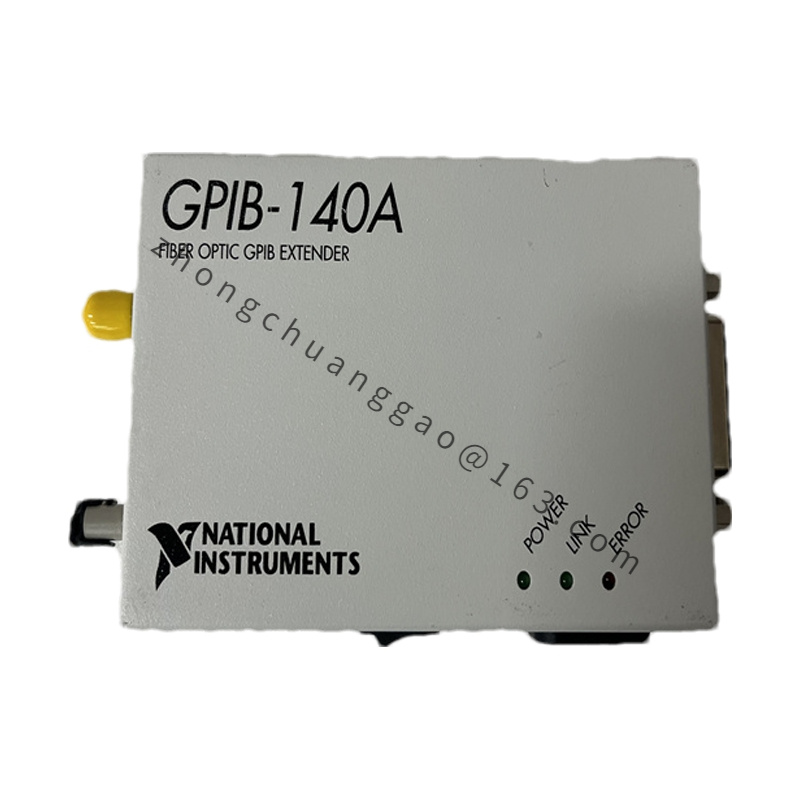

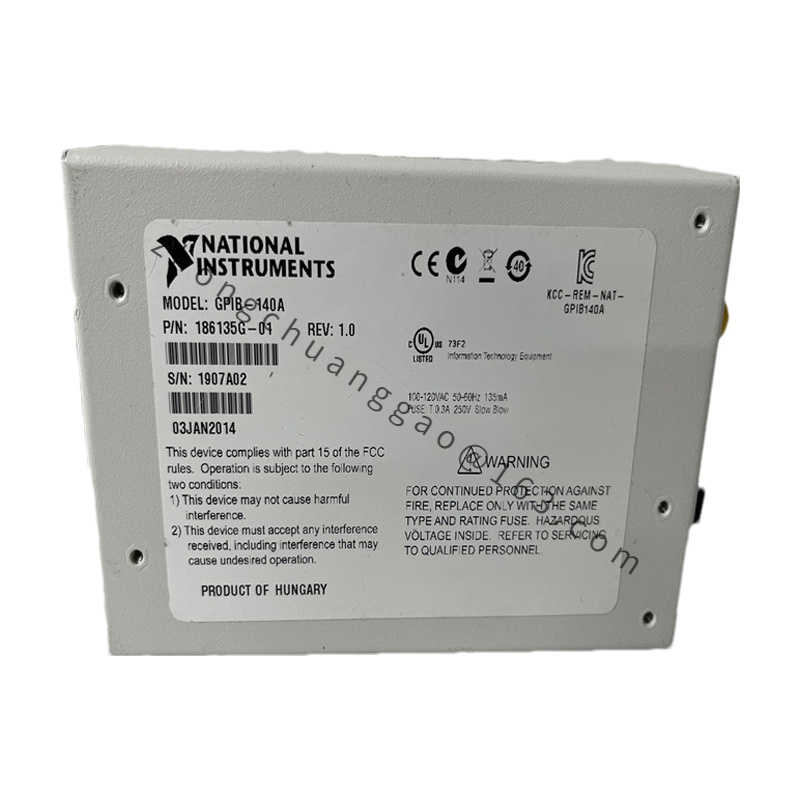

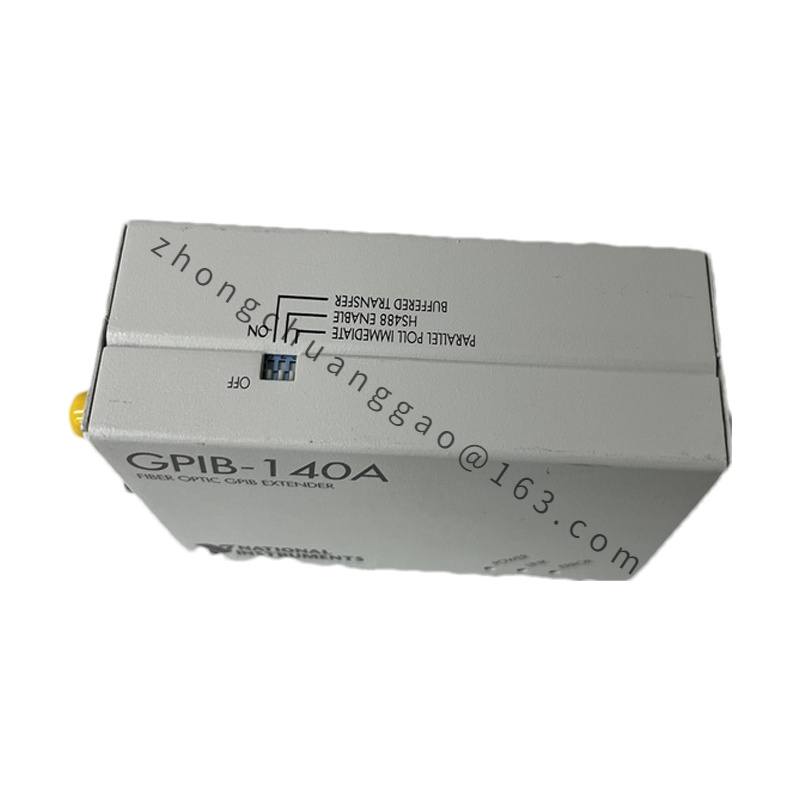

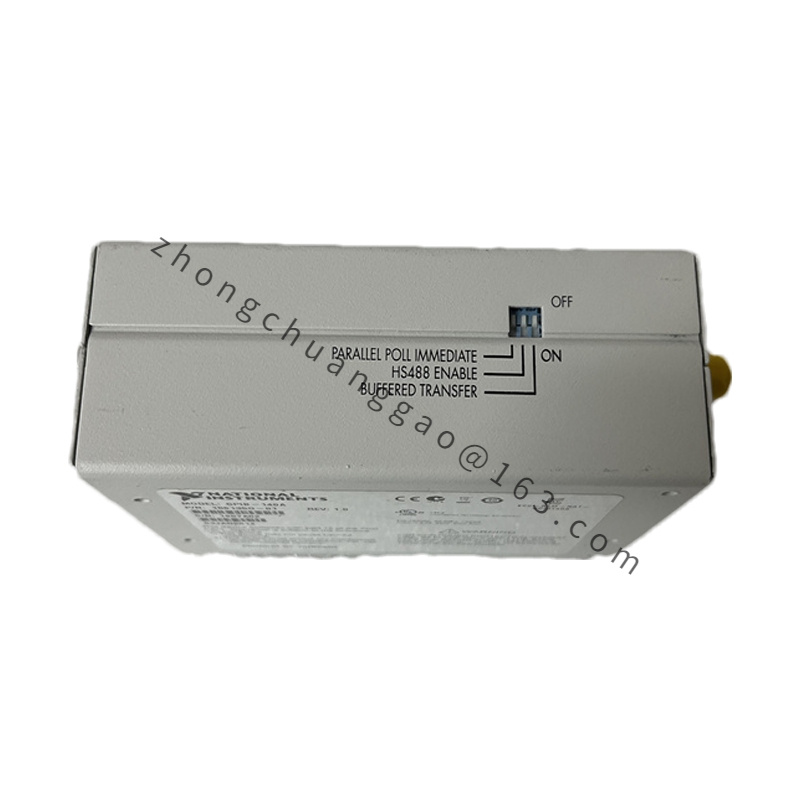

NI GPIB-140A 186135G-01
The NI GPIB-140A 186135G-01 is a General-Purpose Interface Bus (GPIB) controller card, primarily designed for efficient communication with instruments and devices that use the GPIB (IEEE 488) standard. This module facilitates reliable data transfer and instrument control in various test, measurement, and automation systems.
Detailed content
Key Specifications:
- Interface: GPIB (IEEE 488)
- Form Factor: Full-size PCI card
- Communication Speed: Up to 1.5 MB/s
- Buffer Size: 8 KB
- Connector Type: 24-pin D-Sub (GPIB Female)
- Power Requirements: 5 V, 0.4 A
- Operating Temperature: 0 to 55°C
- Storage Temperature: -20 to 70°C
Features:
- High-Speed Data Transfer: The GPIB-140A supports fast and efficient data transmission, making it ideal for complex measurement setups.
- Robust and Reliable Design: Built to handle the demands of both laboratory and industrial environments.
- Flexible Connectivity: Capable of managing multiple GPIB-compatible devices, enhancing system integration and control.
- Software Support: Includes drivers and software development kits (SDKs) for easy programming across various platforms.
Applications:
- Research Laboratories: Ideal for controlling and interfacing with oscilloscopes, spectrometers, and other measurement instruments.
- Industrial Automation: Used for automating test sequences, monitoring production processes, and ensuring quality control.
- Education: Useful in teaching and training environments, particularly for hands-on practice with instrumentation and measurement systems.
