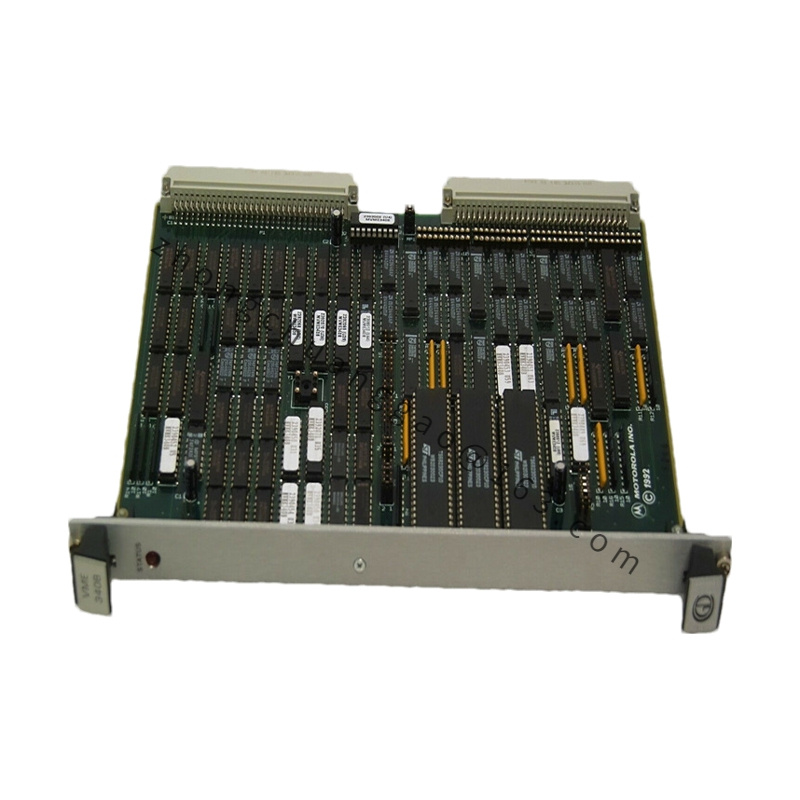

Motorola V-816289

The Motorola V-816289 is a component within Motorola’s VMEbus series, designed for embedded and industrial applications.

WhatApp
WeChat

Detailed content

1. Technical Specifications

  • Model: Motorola V-816289
  • Type: VMEbus Single-Board Computer Module
  • Processor:
    • Type: Usually equipped with a Motorola 680×0 series processor or a PowerPC processor, depending on the specific module configuration.
    • Clock Speed: Typical speeds range from 25 MHz to 400 MHz, varying by processor variant.
  • Memory:
    • RAM: Onboard RAM typically ranges from 4 MB to 64 MB, depending on configuration and specific model.
    • Flash Memory: Flash memory often ranges from 2 MB to 16 MB, providing storage for the system firmware and applications.
  • I/O Interfaces:
    • Serial Ports: Multiple serial communication ports (RS-232 or RS-422) are provided for connecting external peripherals and devices.
    • Parallel I/O: General-purpose parallel I/O ports for additional connectivity.
    • Ethernet: Likely includes Ethernet interfaces (10/100Base-T) for network communication.
    • SCSI: May feature SCSI interfaces for high-speed data transfer and connectivity with storage devices.
    • PCI: Some variants may offer PCI expansion slots for adding additional hardware components.
  • Bus Interface:
    • VMEbus: Complies with VMEbus standards, ensuring interoperability with other VMEbus systems and modules.
  • Power Requirements:
    • Power Consumption: Designed to meet standard VMEbus power specifications. For exact power requirements, consult the datasheet.

2. Key Features

  • Processor Choices: Provides flexibility with processor options, including various models of Motorola’s 680×0 series or PowerPC processors, accommodating different performance needs.
  • Expandable Memory: Includes configurable RAM and flash memory to support a range of applications and operational demands.
  • Comprehensive I/O: Equipped with multiple serial ports, parallel I/O, Ethernet, and SCSI interfaces for versatile connectivity.
  • VMEbus Compatibility: Ensures easy integration with other VMEbus-based systems and modules, facilitating system expansion and compatibility.

3. Application Scenarios

  • Industrial Automation: Ideal for use in industrial control systems requiring reliable performance and extensive I/O capabilities for automation and control tasks.
  • Embedded Systems: Suitable for embedded applications needing a robust VMEbus interface and flexible processing options.
  • Defense and Aerospace: Utilized in defense and aerospace applications where durability, reliability, and VMEbus compatibility are crucial.
  • Telecommunications: Applied in telecommunications systems that demand reliable network connectivity and high-speed data processing.

4. Additional Information

  • Installation and Maintenance: Designed to be installed into a VMEbus chassis. Proper installation, configuration, and maintenance are essential for optimal performance.
  • Technical Support: For precise technical specifications, installation procedures, and support, refer to the official datasheet or contact Motorola (now part of Analog Devices) or their authorized distributors.
