1. Technical Specifications

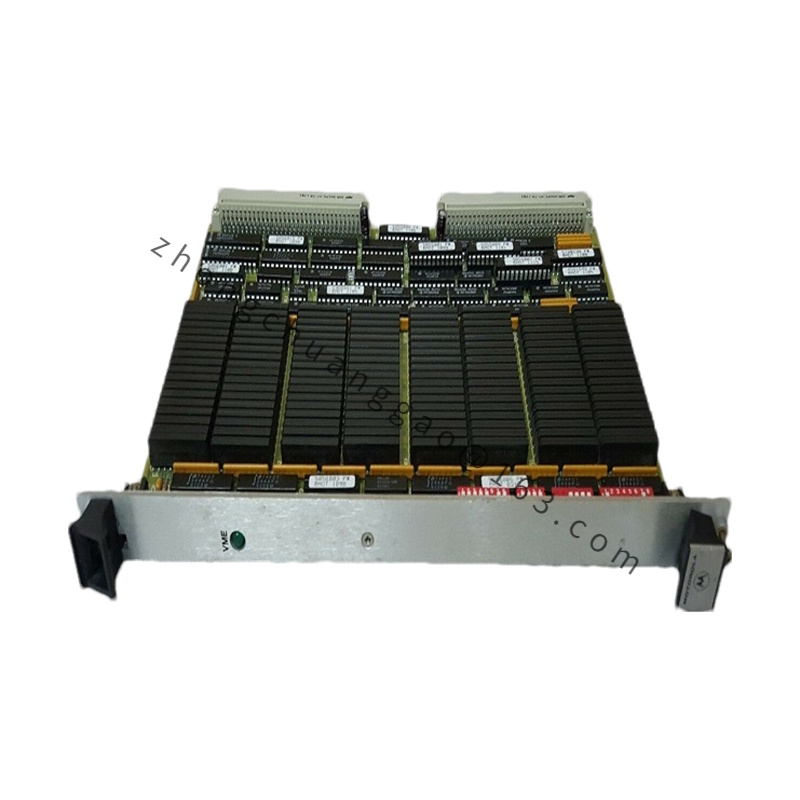

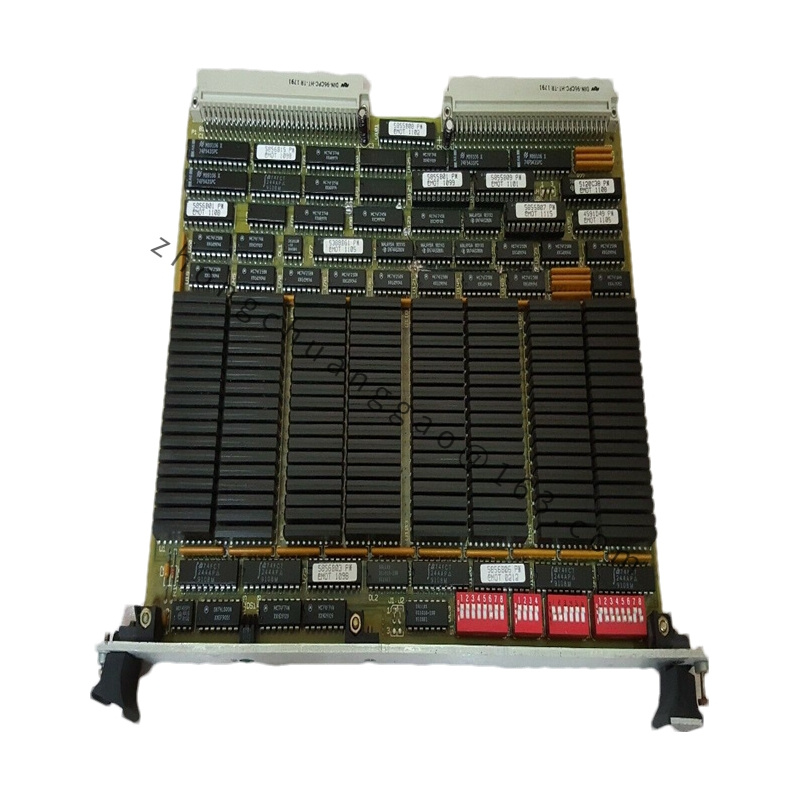

• Model: Motorola V-816259
• Type: VMEbus Single-Board Computer Module
• Processor:
  • Type: Typically, VMEbus components in this series may use processors such as Motorola’s 680×0 series or PowerPC processors, depending on the specific configuration. For precise details, refer to the exact module variant.
  • Clock Speed: Variants may differ; common configurations are in the range of 25 MHz to 400 MHz.
• Memory:
  • RAM: Generally includes onboard memory ranging from 4 MB to 64 MB, depending on the specific module and configuration.
  • Flash Memory: Flash memory for system storage can range from 2 MB to 16 MB.
• I/O Interfaces:
  • Serial Ports: Multiple serial communication ports (RS-232 or RS-422) for connecting peripherals and communication devices.
  • Parallel I/O: General-purpose parallel I/O ports for various external connections.
  • Ethernet: May include Ethernet interfaces (10/100Base-T) for network connectivity, though specific models may differ.
  • SCSI: Some variants may feature SCSI interfaces for high-speed data transfer.
  • PCI: Expansion slots for additional PCI cards may be present in some configurations.
• Bus Interface:
  • VMEbus: Compliant with VMEbus standards, allowing integration with other VMEbus modules and systems.
• Power Requirements:
  • Power Consumption: Complies with VMEbus power specifications. Exact power consumption details should be checked in the datasheet.

2. Key Features

• Processor Flexibility: Utilizes a variety of processors depending on the specific module variant, providing flexibility in performance and application suitability.
• Expandable Memory: Configurable onboard RAM and flash memory options to support different application needs.
• Versatile I/O Options: Includes serial ports, parallel I/O, and possibly Ethernet and SCSI interfaces for broad connectivity and peripheral support.
• VMEbus Compatibility: Fully adheres to VMEbus standards, ensuring compatibility and ease of integration with other VMEbus-based systems.

3. Application Scenarios

• Industrial Control Systems: Ideal for applications in industrial automation where reliable performance and extensive I/O capabilities are required for managing machinery and processes.
• Embedded Systems: Suitable for embedded applications that need a robust VMEbus interface and varying processing power.
• Defense and Aerospace: Can be used in rugged environments where durability and compliance with VMEbus standards are critical.
• Telecommunications: Useful in telecommunications systems for network management and data processing tasks.

4. Additional Information

• Installation and Maintenance: Designed for integration into a VMEbus chassis. Proper installation and maintenance are crucial for optimal performance and system reliability.
• Technical Support: For precise technical details, installation instructions, and troubleshooting, consult the official product datasheet or contact Motorola (now part of Analog Devices) or authorized distributors.
