1. Technical Specifications

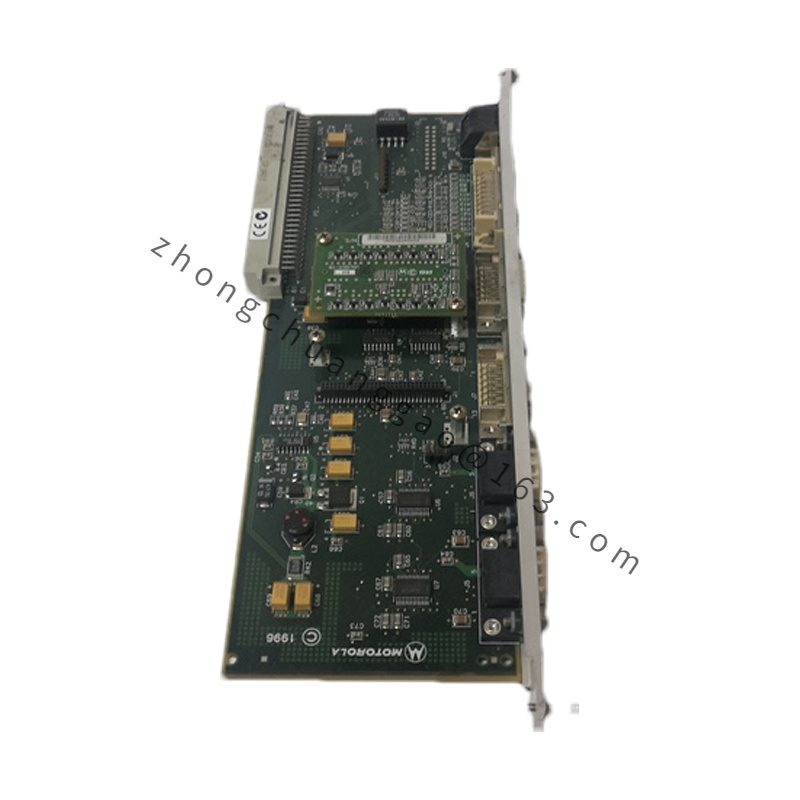

• Model: Motorola MVME761-001
• Type: VMEbus Single-Board Computer
• Processor:
  • Type: Uses a Motorola 68060 microprocessor.
  • Clock Speed: Typically operates at 50 MHz.
• Memory:
  • RAM: Usually comes with onboard RAM ranging from 16 MB to 64 MB.
  • ROM/Flash: Includes ROM for system firmware storage. Some configurations may include flash memory for firmware updates.
• I/O Interfaces:
  • Serial Ports: Multiple serial ports (RS-232 and/or RS-422) for serial communication.
  • Parallel I/O: General-purpose parallel I/O ports for interfacing with external devices.
  • Ethernet: Equipped with Ethernet interfaces (usually 10Base-T or 100Base-TX) for network connectivity.
  • SCSI: Often includes SCSI interfaces for connecting high-speed peripherals.
  • Additional Interfaces: May support other interfaces depending on configuration and additional options.
• Bus Interface:
  • VMEbus: Compliant with VMEbus standards, enabling integration with other VMEbus modules and systems.
• Power Requirements:
  • Operates within standard VMEbus power specifications. Exact power consumption and voltage requirements should be confirmed from the datasheet.

2. Key Features

• VMEbus Compliance: Adheres to VMEbus standards for compatibility with other VMEbus systems and components.
• High Performance: Utilizes the Motorola 68060 processor, providing significant processing power for demanding tasks.
• Extensive I/O Options: Offers a variety of I/O interfaces to support diverse connectivity needs and integration requirements.
• Large Memory Capacity: Supports substantial onboard memory, allowing for complex and memory-intensive applications.
• Networking Capabilities: Includes Ethernet interfaces to facilitate network connectivity and integration into networked environments.

3. Application Scenarios

• Industrial Automation: Ideal for use in control systems where high-performance computing is needed to manage and control industrial machinery and processes.
• Military and Aerospace: Suitable for defense and aerospace applications due to its robust design and high-performance capabilities.
• Medical Systems: Applied in medical imaging and diagnostic systems where reliability and processing power are critical.
• Embedded Systems: Used in embedded systems that require VMEbus compatibility and high processing power for specialized tasks.

4. Additional Information

• Installation and Maintenance: The MVME761-001 is installed into a VMEbus chassis. It requires proper configuration and regular maintenance to ensure optimal performance.
• Technical Support: For detailed technical specifications, installation procedures, and troubleshooting, refer to the official product datasheet or contact Motorola or its authorized distributors for support.
