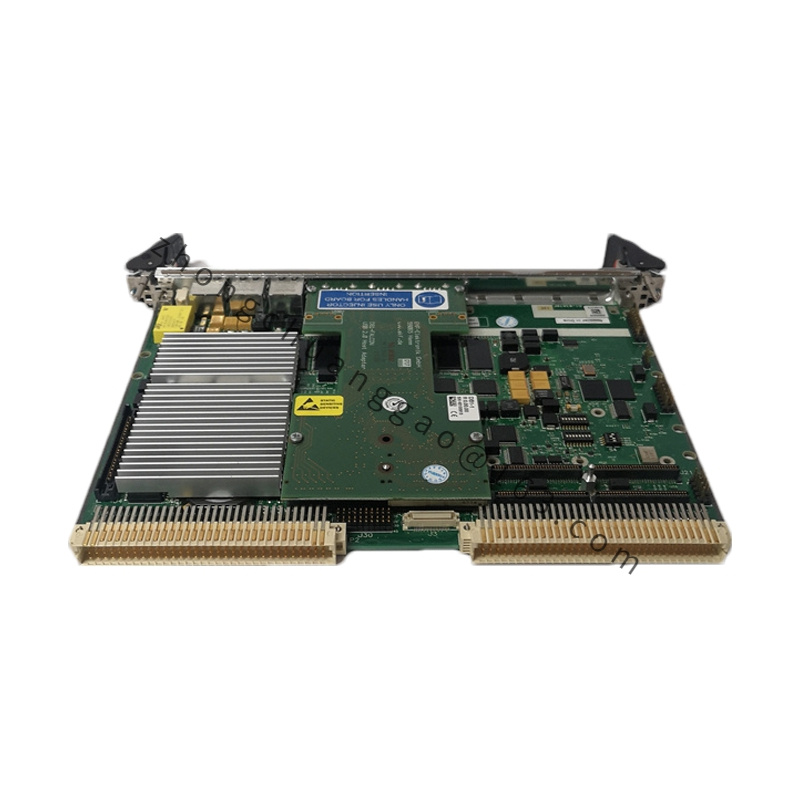

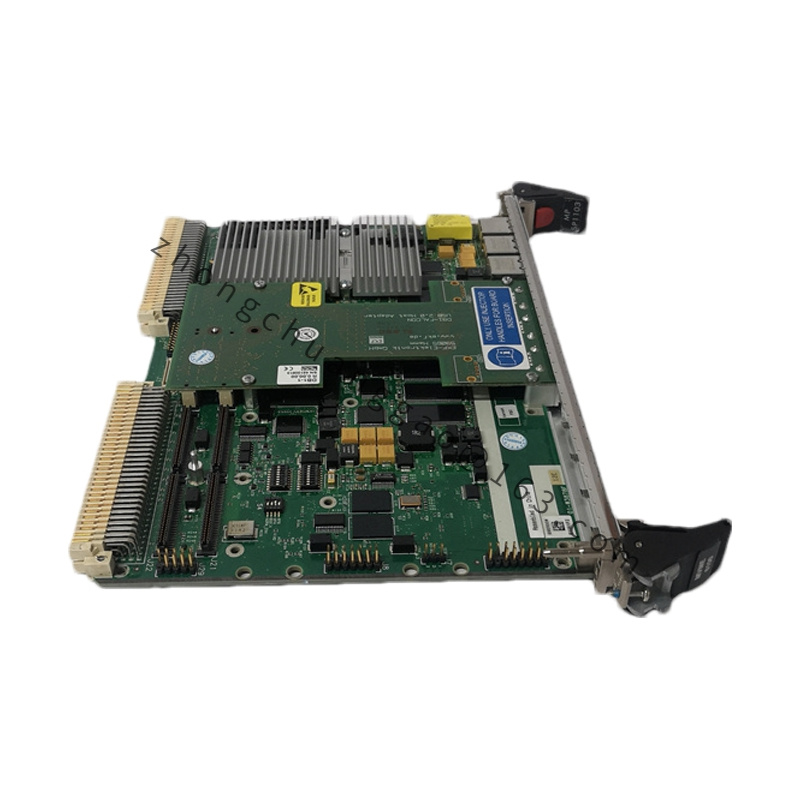

Motorola MVME6100

The Motorola MVME6100 is a robust and versatile VMEbus single-board computer designed for high-performance embedded applications.

WhatApp
WeChat

Detailed content

1. Technical Specifications

  • Model: Motorola MVME6100
  • Type: VMEbus Single-Board Computer
  • Processor:
    • Type: Motorola PowerPC 750 or 750FX processor.
    • Clock Speed: Typically operates at 400 MHz or 600 MHz, depending on the configuration.
  • Memory:
    • RAM: Comes with onboard RAM ranging from 128 MB to 1 GB.
    • Flash Memory: Includes onboard flash memory ranging from 16 MB to 64 MB for firmware and system storage.
  • I/O Interfaces:
    • Serial Ports: Multiple serial ports (RS-232 and/or RS-422) for serial communication.
    • Parallel I/O: Provides general-purpose parallel I/O ports for connecting external devices.
    • Ethernet: Equipped with multiple Ethernet interfaces (10/100/1000Base-T) for network connectivity.
    • SCSI: Includes SCSI interfaces (typically Ultra160) for high-speed data transfer.
    • USB: May feature USB 2.0 ports for additional connectivity.
    • PCI: Includes PCI expansion slots for additional peripheral cards.
  • Bus Interface:
    • VMEbus: Compliant with VMEbus standards, enabling integration with other VMEbus modules and systems.
  • Power Requirements:
    • Power Consumption: Operates within VMEbus power specifications. Specific power requirements should be verified from the datasheet.

2. Key Features

  • High-Performance Processor: Utilizes the PowerPC 750 or 750FX processor, providing substantial processing power for demanding applications.
  • Large Memory Capacity: Offers extensive onboard memory options to support complex applications and large datasets.
  • Flexible I/O Options: Includes a variety of I/O interfaces for connectivity, including multiple serial ports, Ethernet, SCSI, and USB.
  • Network Connectivity: Features high-speed Ethernet interfaces for reliable network communication and data transfer.
  • VMEbus Compatibility: Fully adheres to VMEbus standards, ensuring seamless integration into existing VMEbus-based systems.
  • Expandable: Equipped with PCI expansion slots to accommodate additional hardware and expand system capabilities.

3. Application Scenarios

  • Industrial Automation: Suitable for control and automation systems where high performance, reliability, and extensive connectivity are essential for managing industrial processes and machinery.
  • Military and Aerospace: Ideal for defense and aerospace applications requiring rugged design, high processing capabilities, and long-term reliability.
  • Medical Systems: Applied in medical diagnostics and imaging systems where performance and dependability are critical.
  • Embedded Systems: Ideal for embedded applications needing VMEbus compatibility and substantial computational resources.

4. Additional Information

  • Installation and Maintenance: The MVME6100 is designed for installation into a VMEbus chassis. Proper installation, configuration, and ongoing maintenance are important for ensuring optimal performance.
  • Technical Support: For the most accurate and detailed information, including technical specifications, installation guidance, and troubleshooting, refer to the official product datasheet or contact Motorola (now part of Analog Devices) or its authorized distributors.
