1. Technical Specifications

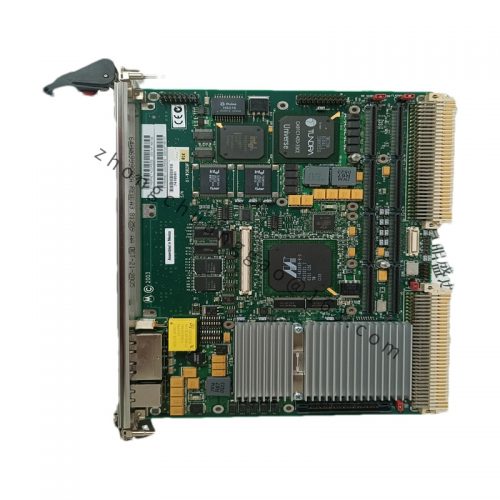

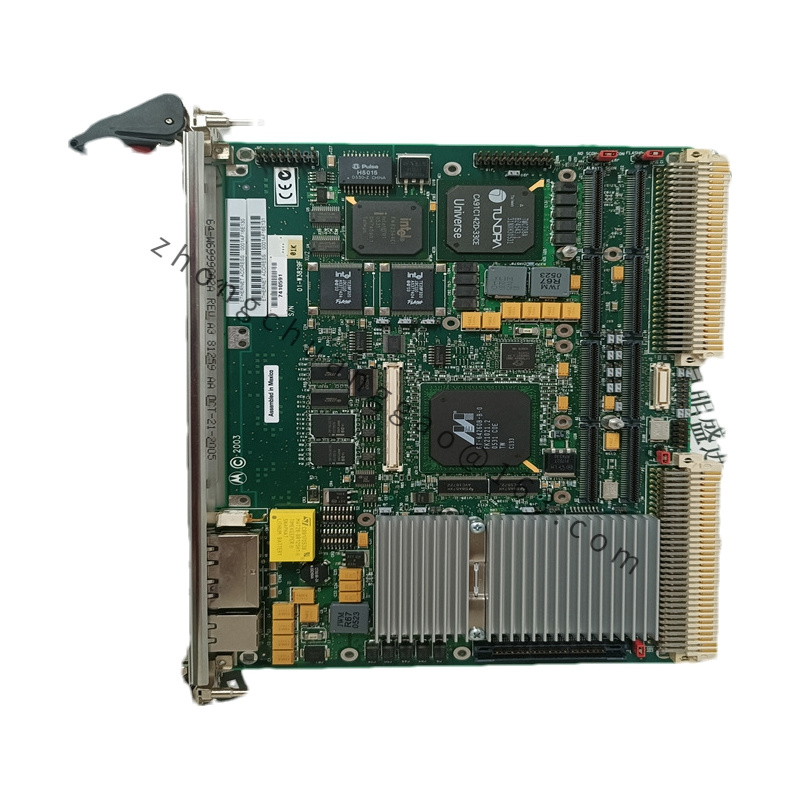

• Model: Motorola MVME5500-0163
• Type: VMEbus Single-Board Computer
• Processor:
  • Type: Motorola PowerPC 7447 processor.
  • Clock Speed: 800 MHz.
• Memory:
  • RAM: 512 MB of DDR SDRAM.
  • Flash Memory: 64 MB of flash memory for firmware and software storage.
• I/O Interfaces:
  • Serial Ports: Four serial ports (RS-232) for serial communication.
  • Parallel I/O: General-purpose parallel I/O interfaces for connecting various external devices.
  • Ethernet: Dual Ethernet interfaces, supporting 10/100/1000Base-T for network connectivity.
  • SCSI: One Ultra160 SCSI interface for high-speed peripheral connections.
  • USB: Two USB 2.0 ports for additional peripheral connectivity.
  • PCI: Expansion slots for additional PCI cards.
• Bus Interface:
  • VMEbus: Compliant with VMEbus standards, facilitating integration with other VMEbus modules and systems.
• Power Requirements:
  • Power Consumption: Typically operates within VMEbus power specifications. Exact power requirements should be confirmed from the datasheet.

2. Key Features

• High-Performance Processor: The MVME5500-0163 features the PowerPC 7447 processor running at 800 MHz, providing strong computational capabilities for demanding applications.
• Ample Memory: Equipped with 512 MB of RAM and 64 MB of flash memory, offering substantial space for applications and firmware.
• Versatile I/O Options: Includes multiple serial ports, Ethernet interfaces, SCSI, USB, and parallel I/O, supporting a wide range of peripherals and connectivity options.
• Network Connectivity: Dual Gigabit Ethernet interfaces enable high-speed network connections, crucial for data-intensive applications.
• VMEbus Integration: Fully compliant with VMEbus standards, ensuring compatibility with other VMEbus-based systems and modules.
• Expandable: PCI expansion slots allow for additional card integration, enhancing system capabilities and flexibility.

3. Application Scenarios

• Industrial Automation: Ideal for use in industrial control systems where reliable performance and extensive connectivity are required for managing machinery and processes.
• Military and Aerospace: Suitable for defense and aerospace applications, where ruggedness and high processing power are essential.
• Medical Systems: Applied in medical diagnostic and imaging systems where high performance and reliability are crucial.
• Embedded Systems: Perfect for embedded applications needing VMEbus compatibility and substantial processing resources.

4. Additional Information

• Installation and Maintenance: The MVME5500-0163 is designed for installation into a VMEbus chassis. Proper installation and regular maintenance are necessary to ensure optimal performance and longevity.
• Technical Support: For detailed technical specifications, installation instructions, and troubleshooting, refer to the official product datasheet or contact Motorola (now part of the company Analog Devices) or its authorized distributors.
