1. Technical Specifications

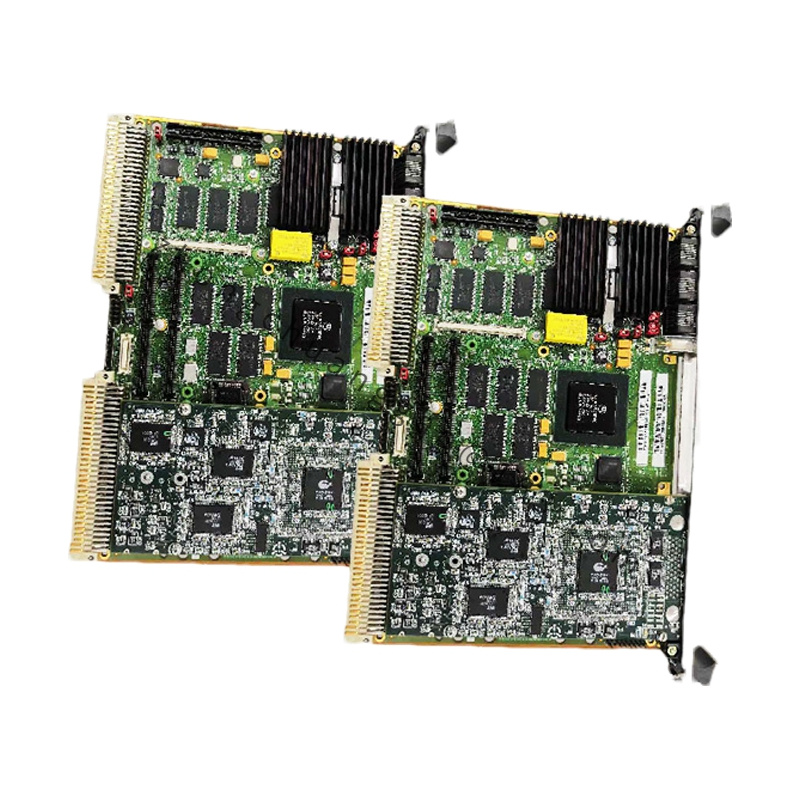

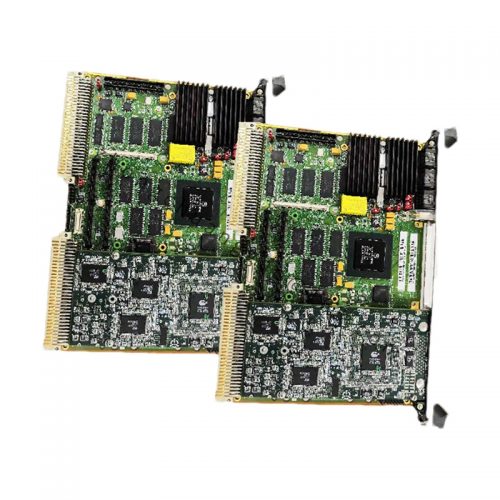

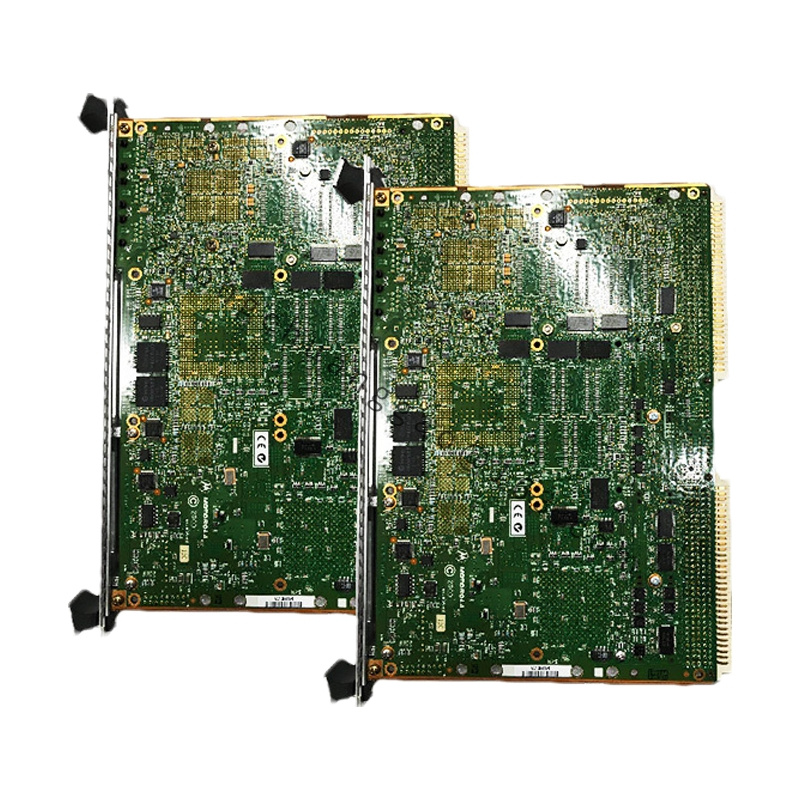

• Model: Motorola MVME5100
• Type: VMEbus Single-Board Computer
• Processor:
  • Type: Uses the Motorola PowerPC 603e microprocessor.
  • Clock Speed: Operates at 133 MHz.
• Memory:
  • RAM: Typically comes with onboard RAM ranging from 64 MB to 128 MB.
  • Flash/ROM: Includes Flash memory for firmware storage, with options for updating system software.
• I/O Interfaces:
  • Serial Ports: Features multiple serial ports (RS-232 and RS-422) for serial communication.
  • Parallel I/O: Provides general-purpose parallel I/O ports for connecting external devices.
  • Ethernet: Equipped with dual Ethernet interfaces (10/100Base-T) for network connectivity.
  • SCSI: Includes SCSI interfaces for connecting high-speed storage devices.
  • Additional Interfaces: Can be configured with additional interfaces such as IDE or USB depending on the specific model and options.
• Bus Interface:
  • VMEbus: Compliant with VMEbus standards, enabling integration with other VMEbus modules and systems.
• Power Requirements:
  • Operates within standard VMEbus power specifications. Specific power consumption and voltage requirements should be confirmed from the datasheet.

2. Key Features

• PowerPC Processor: Utilizes the PowerPC 603e processor, providing high performance and efficiency for demanding applications.
• High Memory Capacity: Offers substantial onboard memory, supporting complex and memory-intensive tasks.
• Dual Ethernet Ports: Provides dual Ethernet interfaces for enhanced network connectivity and redundancy.
• Flexible I/O: Includes a range of I/O interfaces, enabling integration with various peripherals and external devices.
• VMEbus Compatibility: Fully compliant with VMEbus standards, allowing easy integration into existing VMEbus-based systems.
• Enhanced Reliability: Designed for high reliability and robustness in industrial and embedded environments.

3. Application Scenarios

• Industrial Automation: Ideal for use in industrial control systems where high performance and reliability are essential for managing and controlling machinery and processes.
• Military and Aerospace: Suitable for defense and aerospace applications due to its rugged design and high processing power.
• Medical Systems: Applied in medical diagnostic and imaging systems where performance and reliability are critical.
• Embedded Systems: Used in various embedded systems that require VMEbus compatibility and substantial computational resources.

4. Additional Information

• Installation and Maintenance: The MVME5100 is installed into a VMEbus chassis. Proper configuration and regular maintenance are essential to ensure optimal performance and longevity.
• Technical Support: For detailed technical specifications, installation procedures, and troubleshooting, refer to the official product datasheet or contact Motorola or its authorized distributors.
