1. Technical Specifications

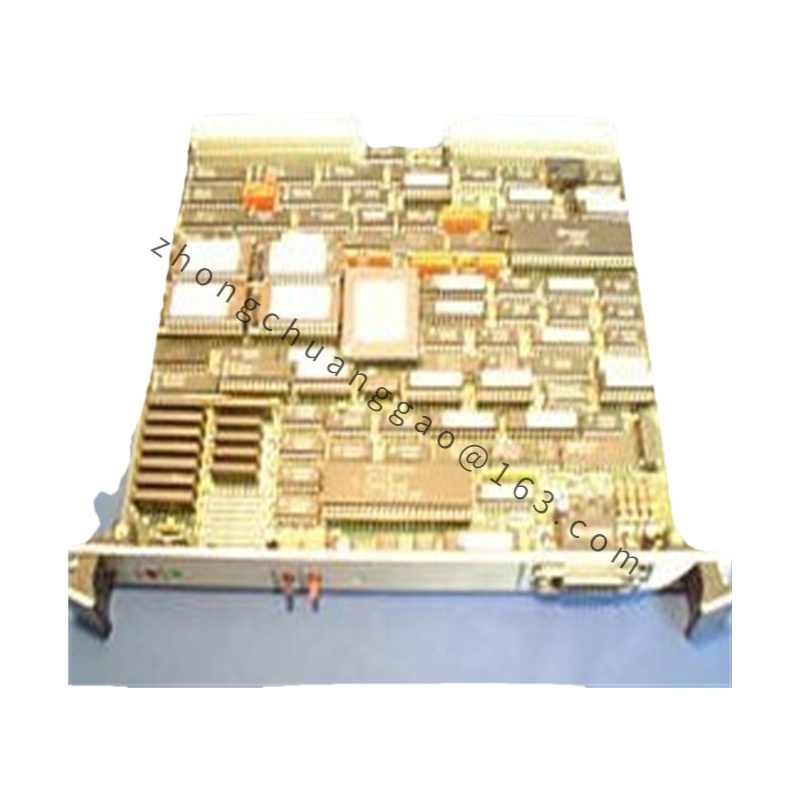

• Model: Motorola MVME330-2
• Type: VMEbus Single-Board Computer
• Processor:
  • Type: Motorola 68040 microprocessor.
  • Clock Speed: 25 MHz.
• Memory:
  • RAM: 16 MB of onboard DRAM.
  • Flash Memory: 2 MB of flash memory for firmware and software storage.
• I/O Interfaces:
  • Serial Ports: Two RS-232 serial ports.
  • Parallel I/O: Two parallel ports.
  • Ethernet: 10/100Base-T Ethernet port.
  • SCSI: High-speed SCSI port for external storage devices.
• Bus Interface:
  • VMEbus: Fully compliant with VMEbus standards, allowing for seamless integration with other VMEbus components.
• Power Requirements:
  • Power Consumption: Typically consumes around 20 watts. Verify exact power requirements based on system configuration.

2. Key Features

• Processor Performance: Equipped with a Motorola 68040 processor running at 25 MHz, providing solid performance for embedded and industrial applications.
• Extensive Memory: 16 MB of DRAM and 2 MB of flash memory offer ample space for operating systems and applications.
• Versatile I/O Options: Includes a range of interfaces such as serial ports, parallel ports, Ethernet, and SCSI, supporting various peripheral and network connectivity needs.
• VMEbus Compatibility: Ensures compatibility and easy integration with other VMEbus modules and systems, enabling modular expansion and flexibility.

3. Application Scenarios

• Industrial Control: Ideal for use in industrial automation systems where reliable processing and multiple I/O options are required.
• Embedded Systems: Suitable for embedded applications needing robust VMEbus integration and processing capabilities.
• Telecommunications: Used in telecommunications systems for its versatile I/O and networking capabilities.
• Defense and Aerospace: Applied in defense and aerospace systems where VMEbus compliance and performance are crucial.

4. Additional Information

• Installation: The MVME330-2 is designed for installation in a standard VMEbus chassis. Ensure proper configuration and integration according to the system’s requirements.
• Technical Support: For detailed technical specifications, installation guidelines, and support, consult the official datasheet or contact Motorola (now part of Analog Devices) or their authorized distributors.
