1. Technical Specifications

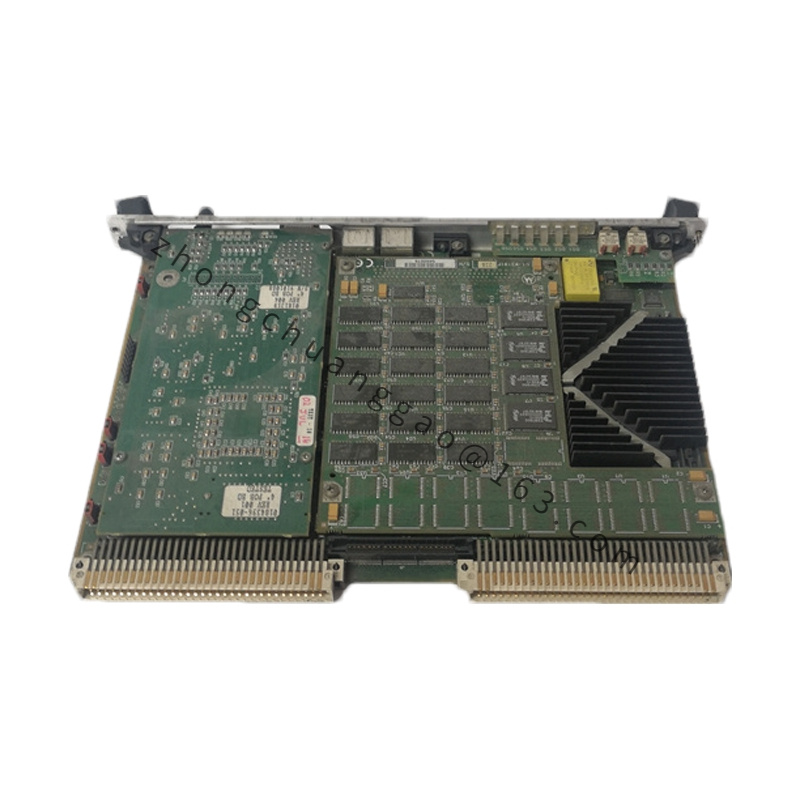

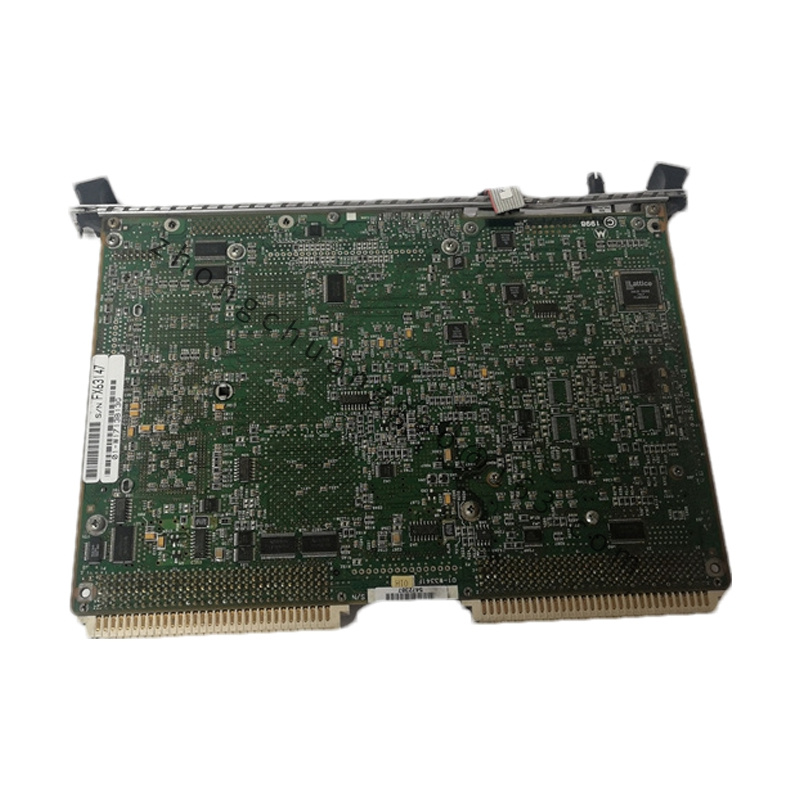

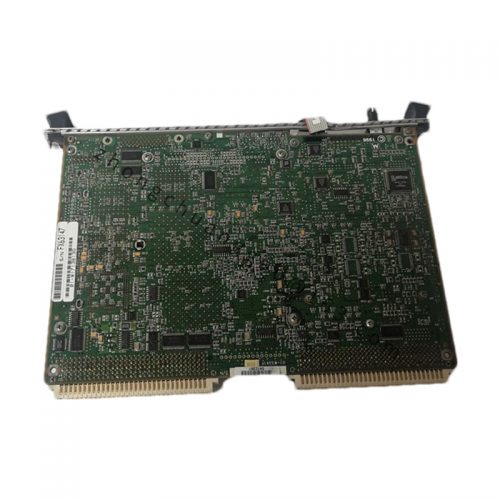

• Model: Motorola MVME2604761
• Type: VMEbus Single-Board Computer
• Processor:
  • Type: Motorola PowerPC 603e
  • Clock Speed: Typically operates at 300 MHz
• Memory:
  • RAM: 64 MB of SDRAM (expandable options available in some configurations)
  • Flash Memory: 16 MB of flash memory for firmware and system storage
• I/O Interfaces:
  • Serial Ports: Four serial ports (RS-232) for serial communication.
  • Parallel I/O: General-purpose parallel I/O ports for connecting external devices.
  • Ethernet: Dual 10/100Base-T Ethernet interfaces for network connectivity.
  • SCSI: Ultra SCSI interface for high-speed peripheral connections.
  • USB: Not typically included in this model, but check specific configurations.
  • PCI: May include PCI expansion slots depending on the exact configuration.
• Bus Interface:
  • VMEbus: Compliant with VMEbus standards for integration with other VMEbus modules and systems.
• Power Requirements:
  • Power Consumption: Adheres to VMEbus power specifications. Exact power consumption details should be verified from the datasheet.

2. Key Features

• PowerPC Processor: Utilizes the PowerPC 603e processor at 300 MHz, offering a good balance of performance and power efficiency for embedded systems.
• Memory Configuration: Includes 64 MB of SDRAM and 16 MB of flash memory, providing adequate resources for typical applications.
• Versatile I/O Options: Features multiple serial ports, Ethernet interfaces, and SCSI for diverse connectivity needs.
• Networking Capabilities: Dual 10/100Base-T Ethernet ports allow for reliable network connections and data transfer.
• VMEbus Compatibility: Adheres to VMEbus standards, facilitating integration with existing VMEbus systems.

3. Application Scenarios

• Industrial Automation: Suitable for industrial control systems where reliability and extensive I/O options are crucial for managing equipment and processes.
• Embedded Systems: Ideal for embedded applications that require a balance of performance, connectivity, and compatibility with VMEbus-based systems.
• Defense and Aerospace: Can be used in defense and aerospace applications requiring robust performance and integration with ruggedized VMEbus environments.

4. Additional Information

• Installation and Maintenance: Designed for installation into a VMEbus chassis. Proper installation, configuration, and maintenance are essential to ensure optimal performance and system longevity.
• Technical Support: For detailed technical specifications, installation instructions, and troubleshooting, refer to the official product datasheet or contact Motorola (now part of Analog Devices) or authorized distributors.
