1. Technical Specifications

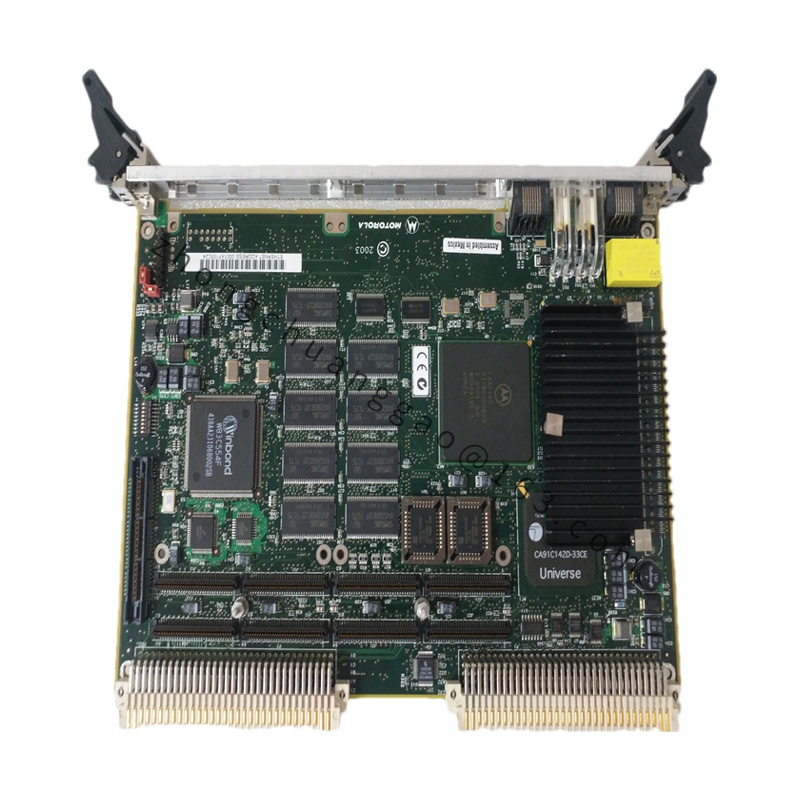

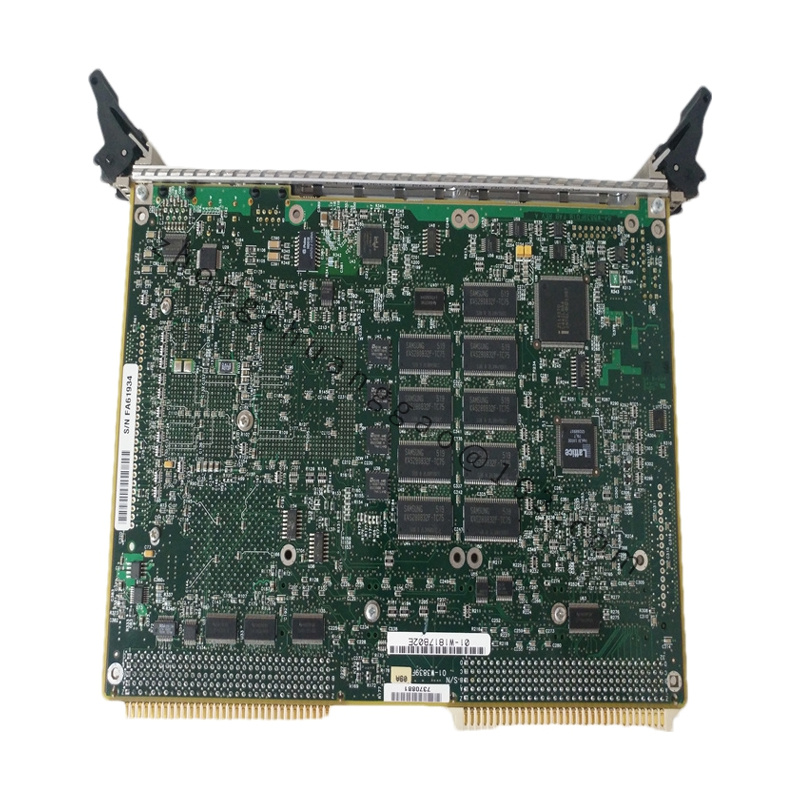

• Model: Motorola MVME2434
• Type: VMEbus Single-Board Computer
• Processor:
  • Type: Uses the Motorola 68040 microprocessor.
  • Clock Speed: Operates at 33 MHz.
• Memory:
  • RAM: Typically comes with onboard RAM options ranging from 4 MB to 64 MB, depending on the configuration.
  • ROM/Flash: Includes ROM for system firmware. Some models might also have flash memory for firmware updates.
• I/O Interfaces:
  • Serial Ports: Multiple serial communication ports (RS-232 and RS-422) for connecting to other devices.
  • Parallel I/O: Provides general-purpose parallel I/O ports for interfacing with external equipment.
  • Ethernet: Includes Ethernet interfaces (10Base-T or 100Base-TX) for network connectivity.
  • SCSI: Equipped with SCSI interfaces for high-speed peripheral connections.
  • Additional Interfaces: May support additional interfaces depending on the specific configuration and options.
• Bus Interface:
  • VMEbus: Compliant with VMEbus standards, ensuring compatibility with other VMEbus modules and systems.
• Power Requirements:
  • Operates within the standard VMEbus power specifications. Specific power consumption and voltage requirements should be checked in the datasheet.

2. Key Features

• High Performance: Powered by the Motorola 68040 processor, which delivers substantial computing power suitable for demanding applications.
• Flexible Memory Options: Offers a range of memory configurations to suit various application needs.
• Versatile I/O Capabilities: Provides multiple I/O interfaces, enabling connection to a wide range of external devices and peripherals.
• Networking Support: Ethernet interfaces facilitate network integration, essential for distributed or networked systems.
• VMEbus Compatibility: Ensures compatibility with other VMEbus-based systems, allowing for seamless integration into existing setups.

3. Application Scenarios

• Industrial Control: Ideal for use in industrial automation systems where robust performance and reliability are critical for controlling machinery and processes.
• Military and Aerospace: Suitable for defense and aerospace applications due to its high-performance capabilities and rugged design.
• Medical Equipment: Used in medical diagnostic and imaging systems, where high processing power and reliability are essential.
• Embedded Systems: Perfect for embedded applications requiring VMEbus compatibility and substantial computational resources.

4. Additional Information

• Installation and Maintenance: The MVME2434 is installed into a VMEbus chassis. Proper installation, configuration, and regular maintenance are required to ensure optimal performance and reliability.
• Technical Support: For precise details on specifications, installation, and troubleshooting, consult the official product datasheet or contact Motorola or its authorized distributors.
