1. Technical Specifications

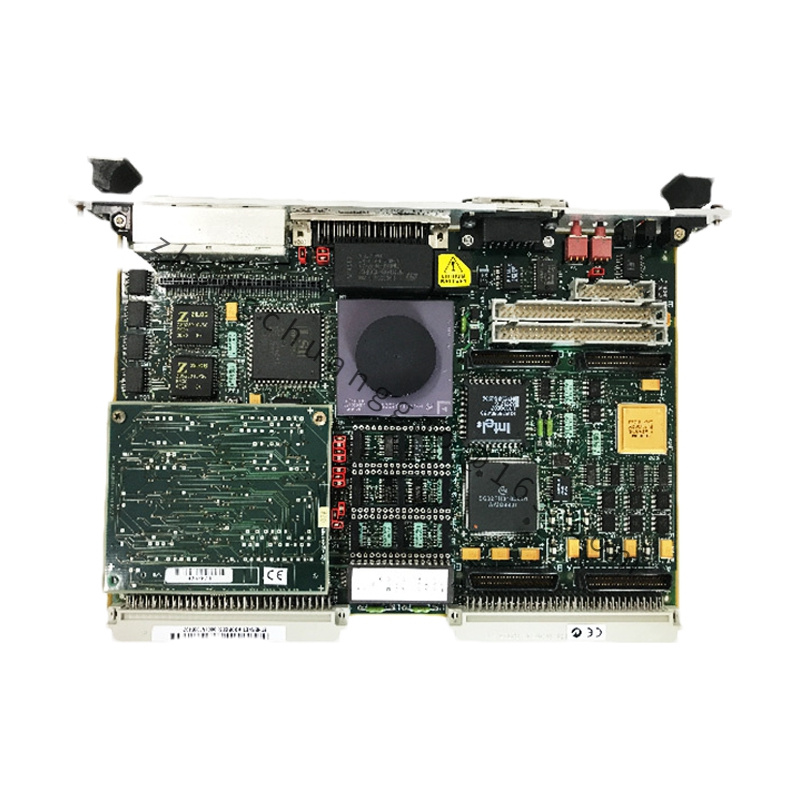

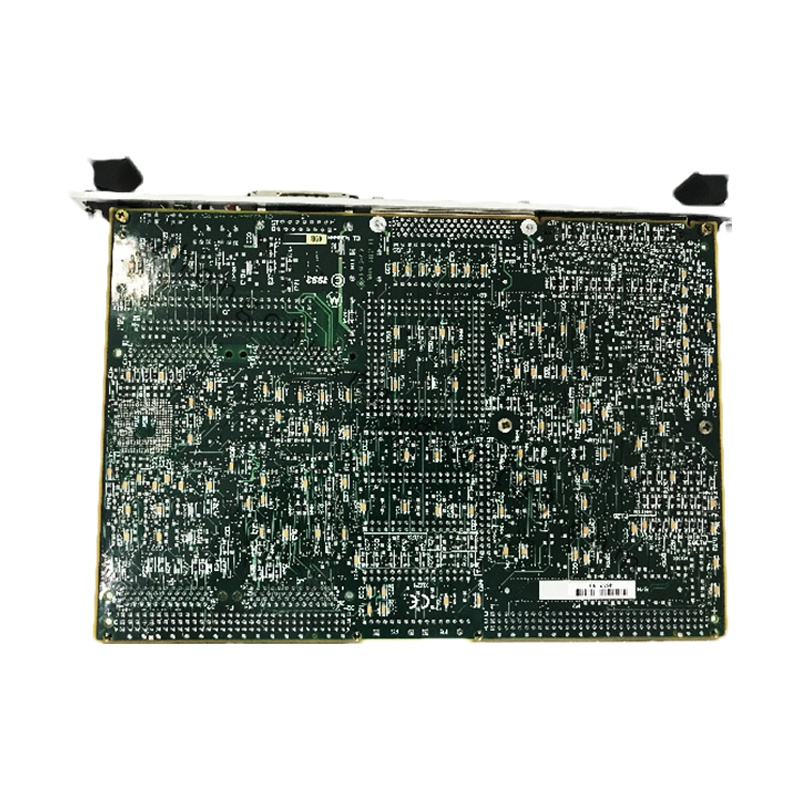

• Model: Motorola MVME162-213
• Type: VMEbus Single-Board Computer
• Processor:
  • Type: Typically equipped with a Motorola 68040 microprocessor.
  • Clock Speed: Operates at 33 MHz.
• Memory:
  • RAM: Onboard RAM configurations generally range from 4 MB to 16 MB.
  • ROM/Flash: Includes ROM for system firmware. Flash memory may be used for more flexible firmware updates.
• I/O Interfaces:
  • Serial Ports: Multiple serial communication ports, such as RS-232 and RS-422, for serial data exchange.
  • Parallel I/O: Provides general-purpose parallel I/O ports for connecting external peripherals.
  • Ethernet: Includes Ethernet interfaces, often 10Base-T or 100Base-TX, for network connectivity.
  • SCSI: Some models may feature SCSI interfaces for high-speed peripheral connections.
• Bus Interface:
  • VMEbus: Compliant with VMEbus standards, enabling integration into VMEbus-based systems.
• Power Requirements:
  • Operates within standard VMEbus power specifications. Power consumption and voltage requirements should be confirmed from the datasheet.

2. Key Features

• VMEbus Compliance: Fully adheres to VMEbus standards, ensuring compatibility with other VMEbus modules and systems.
• High Performance: Utilizes the Motorola 68040 processor, offering robust performance for demanding applications.
• Extensive I/O Options: Equipped with multiple I/O interfaces, allowing for versatile connectivity and integration with various devices.
• Memory Expandability: Supports additional memory expansion to meet the requirements of more complex applications.
• Networking Capabilities: Includes Ethernet interfaces for integrating into networked environments.

3. Application Scenarios

• Industrial Automation: Ideal for control systems that require reliable and high-performance computing to manage and control industrial processes and machinery.
• Defense and Aerospace: Suitable for defense and aerospace applications due to its rugged design and high computational power.
• Medical Systems: Used in medical diagnostic and imaging systems where high reliability and performance are crucial.
• Embedded Systems: Perfect for embedded systems that demand VMEbus compatibility and powerful processing capabilities.

4. Additional Information

• Installation and Maintenance: The MVME162-213 is installed into a VMEbus chassis and needs to be configured according to the system’s specifications. Regular maintenance involves monitoring performance and ensuring proper operation.
• Technical Support: For detailed specifications, installation procedures, and troubleshooting, refer to the official product datasheet or contact Motorola or its authorized distributors for assistance.
