1. Technical Specifications

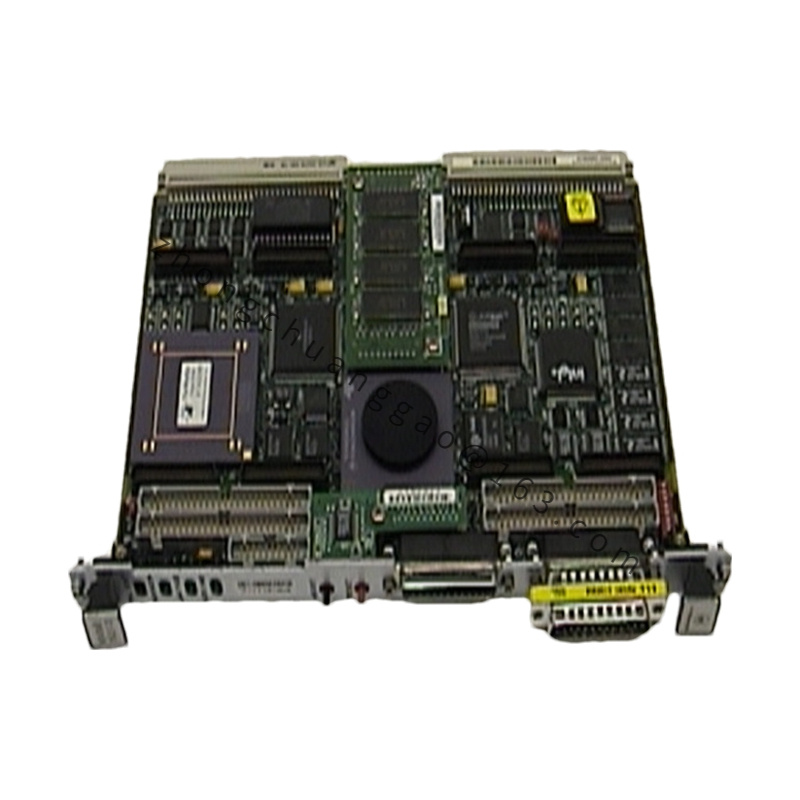

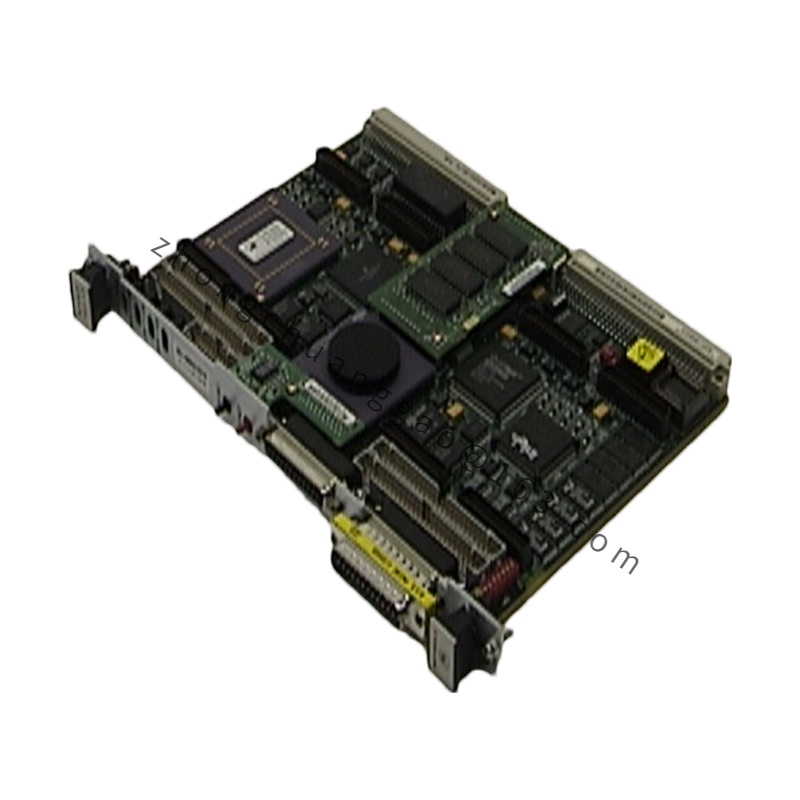

• Model: Motorola MVME162-13
• Type: VMEbus Single-Board Computer
• Processor:
  • Type: Typically uses a Motorola 68040 microprocessor.
  • Clock Speed: Operates at 25 MHz or 33 MHz, depending on the configuration.
• Memory:
  • RAM: Onboard RAM is generally available in configurations of 4 MB or 8 MB. It may support additional memory expansions.
  • ROM/Flash: Includes ROM for system firmware. Some configurations might include flash memory for flexible firmware updates.
• I/O Interfaces:
  • Serial Ports: Includes multiple serial ports (RS-232 and RS-422) for serial communication.
  • Parallel I/O: Provides general-purpose parallel I/O ports for interfacing with various peripherals.
  • Ethernet: Equipped with Ethernet interfaces for network connectivity, typically 10Base-T or 100Base-TX.
  • SCSI: May include SCSI interfaces for high-speed peripheral connections.
• Bus Interface:
  • VMEbus: Compliant with VMEbus standards, allowing integration into VMEbus-based systems.
• Power Requirements:
  • Operates within standard VMEbus power specifications, usually requiring a VMEbus power supply. Specific power consumption details should be confirmed from the datasheet.

2. Key Features

• VMEbus Compliance: Adheres to VMEbus standards, ensuring compatibility with other VMEbus systems and components.
• High Performance: Utilizes the Motorola 68040 processor, providing significant computational power for demanding applications.
• Flexible I/O Options: Offers a variety of I/O interfaces to support diverse connectivity needs.
• Memory Expansion: Supports additional memory for scalability in more demanding applications.
• Networking Capabilities: Includes Ethernet interfaces, enabling integration into networked environments.

3. Application Scenarios

• Industrial Automation: Ideal for control systems where robust and reliable computing is needed to manage and control machinery and processes.
• Defense and Aerospace: Suitable for use in defense and aerospace applications due to its high performance and rugged design.
• Medical Systems: Applied in medical diagnostic and imaging systems, where high reliability and performance are crucial.
• Embedded Systems: Used in embedded systems requiring a powerful processor and VMEbus compatibility for various tasks.

4. Additional Information

• Installation and Maintenance: The MVME162-13 is installed into a VMEbus chassis. It is essential to configure it according to system requirements. Regular maintenance includes monitoring performance and ensuring the module operates within specified parameters.
• Technical Support: For comprehensive details, including technical specifications, installation, and troubleshooting, refer to the official product datasheet or contact Motorola or its authorized distributors.
