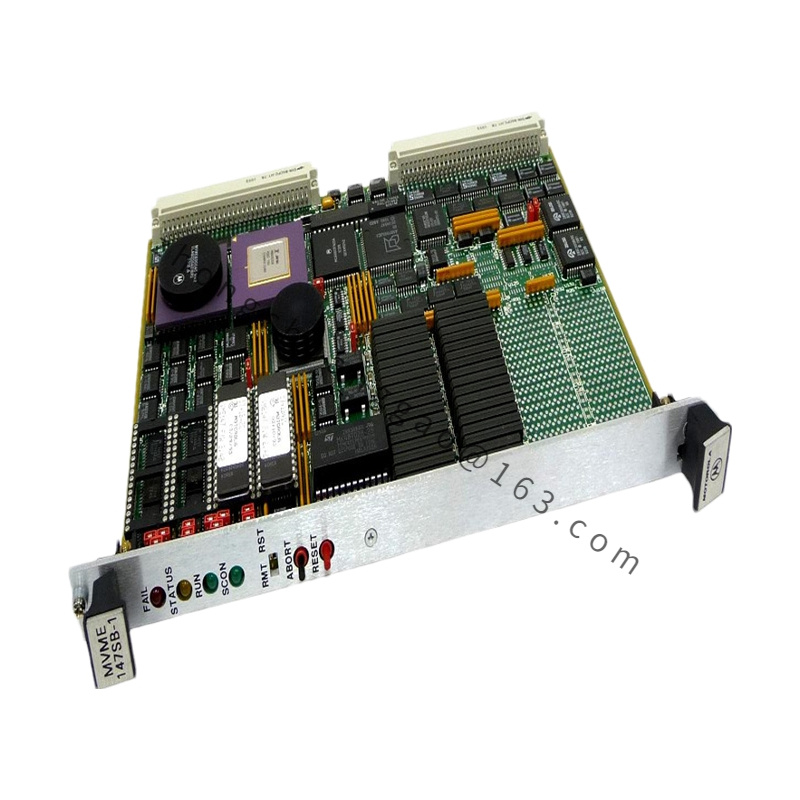

Motorola MVME147SB-1

The Motorola MVME147SB-1 is a VMEbus single-board computer designed for use in industrial and embedded applications

Detailed content

1. Technical Specifications

  • Model: Motorola MVME147SB-1
  • Type: VMEbus Single-Board Computer
  • Processor:
    • Type: Typically powered by a Motorola 68020 or 68030 microprocessor, though the exact processor model and clock speed should be verified from the datasheet.
    • Clock Speed: Commonly found in configurations of 16 MHz to 25 MHz.
  • Memory:
    • RAM: Onboard RAM ranging from 2 MB to 8 MB, depending on the specific configuration.
    • ROM/Flash: Includes ROM for storing system firmware. Flash memory may be used for more flexible storage needs.
  • I/O Interfaces:
    • Serial Ports: Multiple serial ports (RS-232 or RS-422) for serial communication.
    • Parallel I/O: General-purpose parallel I/O ports for interfacing with external devices.
    • Ethernet: Some configurations include Ethernet interfaces for network connectivity.
    • Bus Interfaces: Supports VMEbus interface and may include additional interfaces like SCSI, IDE, or other standard communication interfaces, depending on the specific model.
  • Bus Interface:
    • VMEbus: Compliant with VMEbus standards, facilitating integration into VMEbus-based systems.
  • Power Requirements:
    • Operates within the standard VMEbus power supply specifications. Specific power consumption details should be reviewed in the datasheet.

2. Key Features

  • VMEbus Compliance: Fully compliant with VMEbus standards, ensuring compatibility with other VMEbus components.
  • Processor Performance: Equipped with a high-performance Motorola 68000-series processor, suitable for various computing tasks.
  • Flexible I/O: Offers a range of I/O options, allowing integration with a variety of peripherals and communication devices.
  • Memory Expansion: Supports memory expansion options to accommodate varying application needs.
  • Networking: May include Ethernet interfaces for network connectivity, enabling integration into networked environments.

3. Application Scenarios

  • Industrial Automation: Used in industrial control systems where reliable computing is required to manage and control machinery and processes.
  • Defense and Aerospace: Suitable for use in defense and aerospace applications due to its rugged design and high-performance capabilities.
  • Medical Systems: Applied in medical diagnostic and imaging systems where reliability and performance are critical.
  • Embedded Systems: Ideal for embedded systems requiring robust computing and VMEbus compatibility.

4. Additional Information

  • Installation and Maintenance: The MVME147SB-1 is installed into a VMEbus chassis and configured according to system requirements. Maintenance involves regular checks and ensuring the module operates within its specified parameters.
  • Technical Support: For detailed specifications, installation guidance, and troubleshooting, refer to the official product datasheet or contact Motorola or its authorized distributors.
