1. Technical Specifications

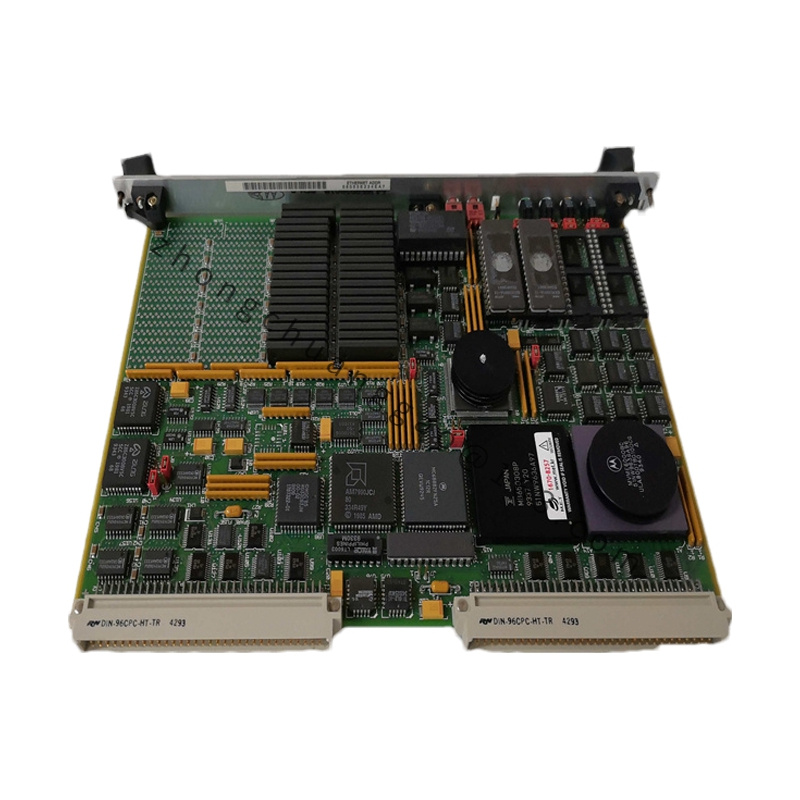

• Model: Motorola MVME147S-1
• Type: VMEbus Single-Board Computer
• Processor:
  • Type: Equipped with a Motorola 68030 microprocessor.
  • Clock Speed: Typically operates at 25 MHz.
• Memory:
  • RAM: Onboard RAM is generally available in configurations of 2 MB or 4 MB.
  • ROM/Flash: Includes ROM for firmware storage. Flash memory options might be available for easier updates.
• I/O Interfaces:
  • Serial Ports: Multiple serial communication ports (RS-232 and RS-422) for data exchange.
  • Parallel I/O: General-purpose parallel I/O ports for connecting to external peripherals.
  • Ethernet: Includes Ethernet interfaces for network connectivity, typically supporting 10Base-T or 100Base-TX.
  • Additional Interfaces: May include SCSI or IDE interfaces, depending on the specific configuration.
• Bus Interface:
  • VMEbus: Compliant with VMEbus standards, enabling integration into existing VMEbus-based systems.
• Power Requirements:
  • Operates within standard VMEbus power specifications. Exact power consumption and voltage requirements should be referenced from the datasheet.

2. Key Features

• VMEbus Compliance: Fully compliant with VMEbus standards, ensuring compatibility with other VMEbus modules and systems.
• Processor Performance: Features the Motorola 68030 microprocessor, offering reliable and efficient computing power for various applications.
• Versatile I/O: Provides multiple I/O interfaces, making it suitable for a wide range of connectivity needs.
• Memory Expansion: Supports additional memory expansion to accommodate more demanding application requirements.
• Networking Capabilities: Ethernet interfaces enable network connectivity, making it suitable for networked applications.

3. Application Scenarios

• Industrial Automation: Used in industrial control systems where reliable computing is necessary for managing and controlling machinery and processes.
• Defense and Aerospace: Suitable for defense and aerospace applications due to its ruggedness and high-performance characteristics.
• Medical Systems: Applied in medical diagnostic and imaging systems where high reliability and performance are essential.
• Embedded Systems: Ideal for embedded systems that require VMEbus compatibility and robust computing power for various tasks.

4. Additional Information

• Installation and Maintenance: The MVME147S-1 is installed into a VMEbus chassis and configured based on system requirements. Routine maintenance includes monitoring performance and ensuring the module operates within its specified parameters.
• Technical Support: For detailed specifications, installation procedures, and troubleshooting, refer to the official product datasheet or contact Motorola or its authorized distributors.
